ATTACHING/DETACHING THE DVD UNIT

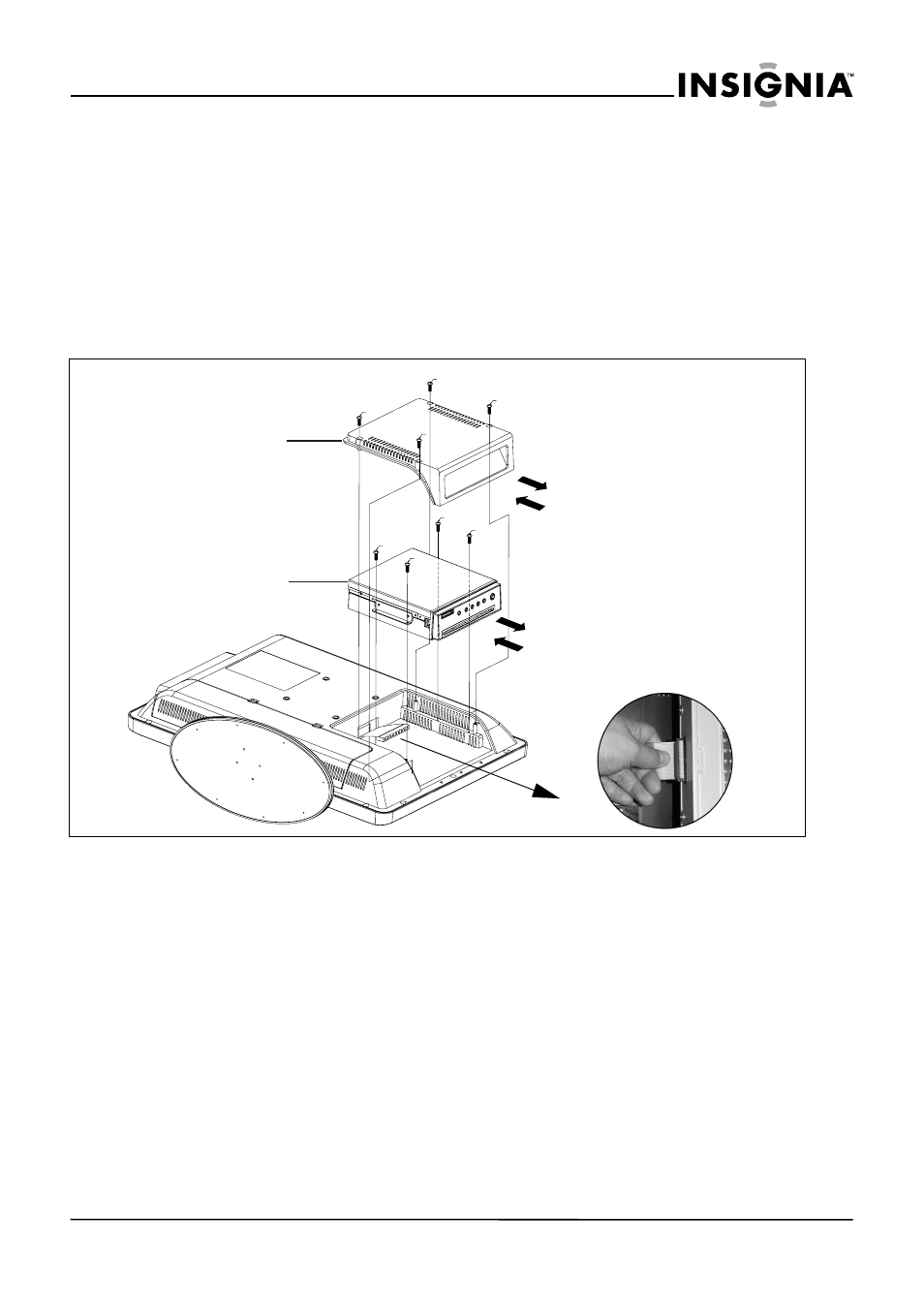

1. Remove the four screws ①.
2. Remove the DVD cover in the direction of arrow (A).
3. Remove the four screws ②.
4. Disconnect the connection between DVD unit and LCD TV as shown in the illustration.
5. Remove the DVD unit in the direction of arrow (B).
1. Attach the DVD unit in the direction of arrow (C).
2. Connect the connection between DVD unit and LCD TV as shown in the illustration.
3. Fasten the four screws ②.
4. Attach the DVD cover in the direction of arrow (D).
5. Fasten the four screws ①.
• Before detaching (or attaching) the DVD unit, unplug the AC cord from the AC
input terminal.
• Before performing work make sure to turn off the TV.
• Before performing work spread cushioning over the base area to lay the Display on.
This will prevent it from being damaged.
Detaching the DVD unit:
Before attaching/detaching the DVD unit:
www.insignia-products.com
①-- ST3×12
②-- ST3×8
①
①
①
①
②
②
②
②
DVD cover
DVD unit
Attaching the DVD unit:
(B)
(C)
(A)
(D)
