Intel DG41MJ User Manual
Page 30
Intel Desktop Board DG41MJ Product Guide
30

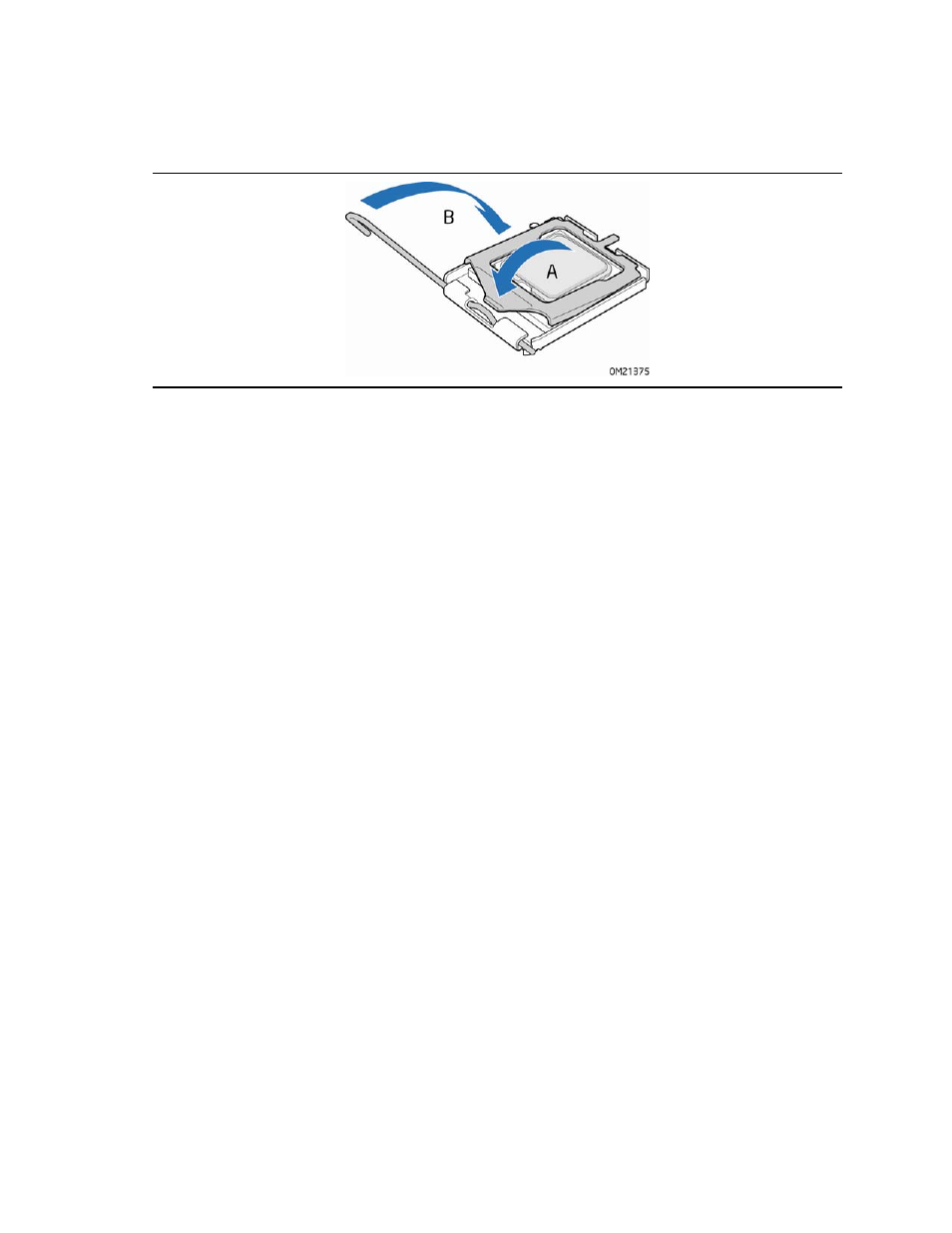

7. Pressing down on the load plate (Figure 11, A), close and engage the socket lever
(Figure 11, B).
Figure 11. Close the Load Plate
