Connecting a VCR (for recording)

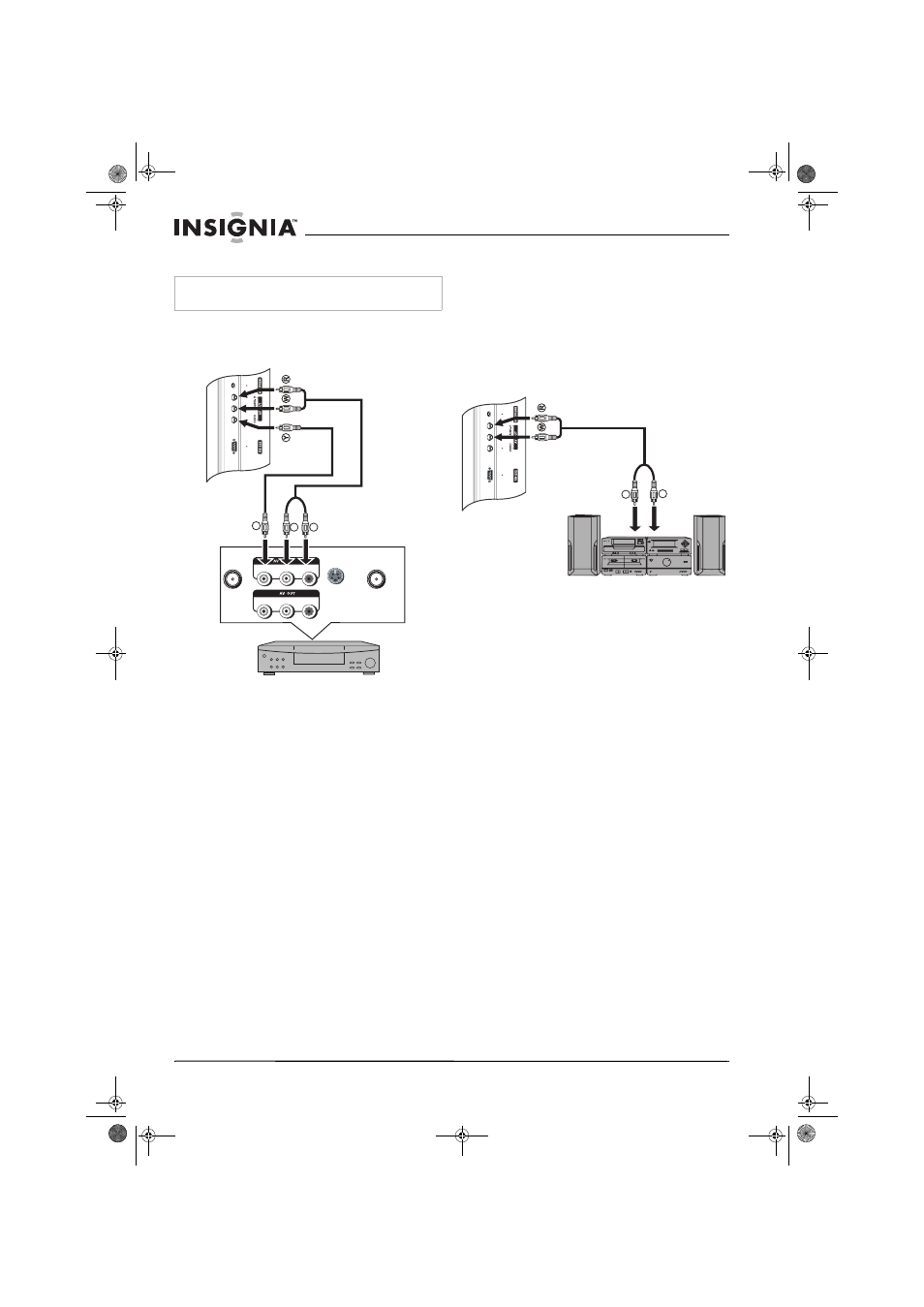

Use the following illustration to connect a VCR
for recording TV programs.
To record a program:
1 Turn on your TV.
2 Select a program you want to record.
3 Turn on the VCR.
4 Insert a videotape, then press the record
button on the VCR.
Connecting an amplifier
Use the following illustration to connect an
external amplifier.
Warning
Make sure that you turn off and unplug your TV before
installing devices.
S-VIDEO ANT OUT ANT IN VIDEO L- AUDIO - R
VIDEO L- AUDIO - R
Y W R
TV
VCR
Y=yellow (video)
W=white (audio left)
R=red (audio right)
Video cable
Audio cable
W R
TV
Amplifier
Audio cable
W=white (audio left)
R=red (audio right
