The W154 model is designed for floor
mounting only.
■
Select a spot to mount water heater
vertically, with water connection
at the top.
■
Water heater must be located within
3-1/2 ft. of a grounded 120-volt
electrical outlet.
■
Ensure cabinet floor is strong
enough to hold the weight of a full
heater. The model W154 tank
holds 4 gallons and weighs
45 lbs. when full.
■
It is recommended the water heater
be raised off the cabinet floor
several inches using suitable
support blocks to allow drainage of
tank
(not supplied).
2
B
Property Damage: Do not connect the electrical
power until the tank is full of water. Failure to
comply will burn out the heating element.
Property Damage: Do not connect the electrical
power until the tank is full of water. Failure to
comply will burn out the heating elements.
6
2
■
Ensure wall or cabinet is strong
enough to hold the weight of a full
heater. The model W152 tank holds
2-1/2 gallons and weights 34 lbs.
when full.
Continue with “Step C” if wall mounting.
■
Hold tank in the position to be
mounted and mark with a pencil
the top and center for the tank on the
wall (mount to wall stud or
added 2x4).
■
Measure down 1-1/2" and mount the
metal mounting bracket using two
screws provided.
■
Hang the water heater from the
mounting bracket using the two slots
in the back of the tank jacket.
The W152 model is designed for wall or
floor mounting.
■
Select a spot to mount water heater
vertically, with water connection at
the top.
■
Water heater must be located within
3-1/2 ft. of a grounded 120-volt
electrical outlet.
B
C
3½"
A

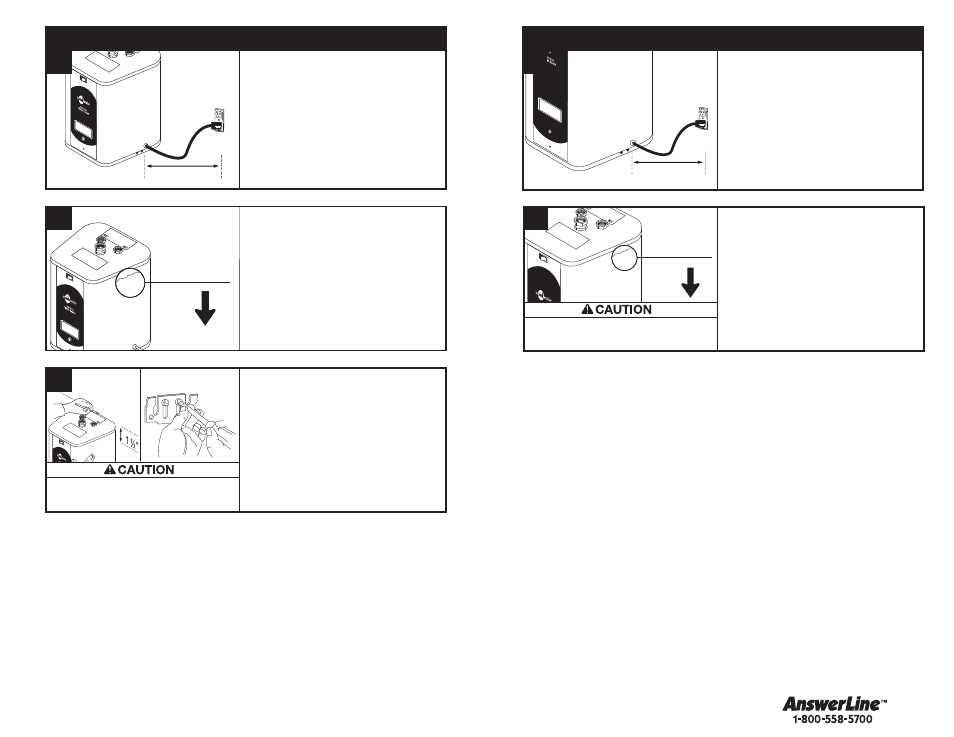

MOUNTING THE TANK - W152
A
MOUNTING THE TANK - W154
