Thermal Metrology
34
Thermal and Mechanical Design Guidelines

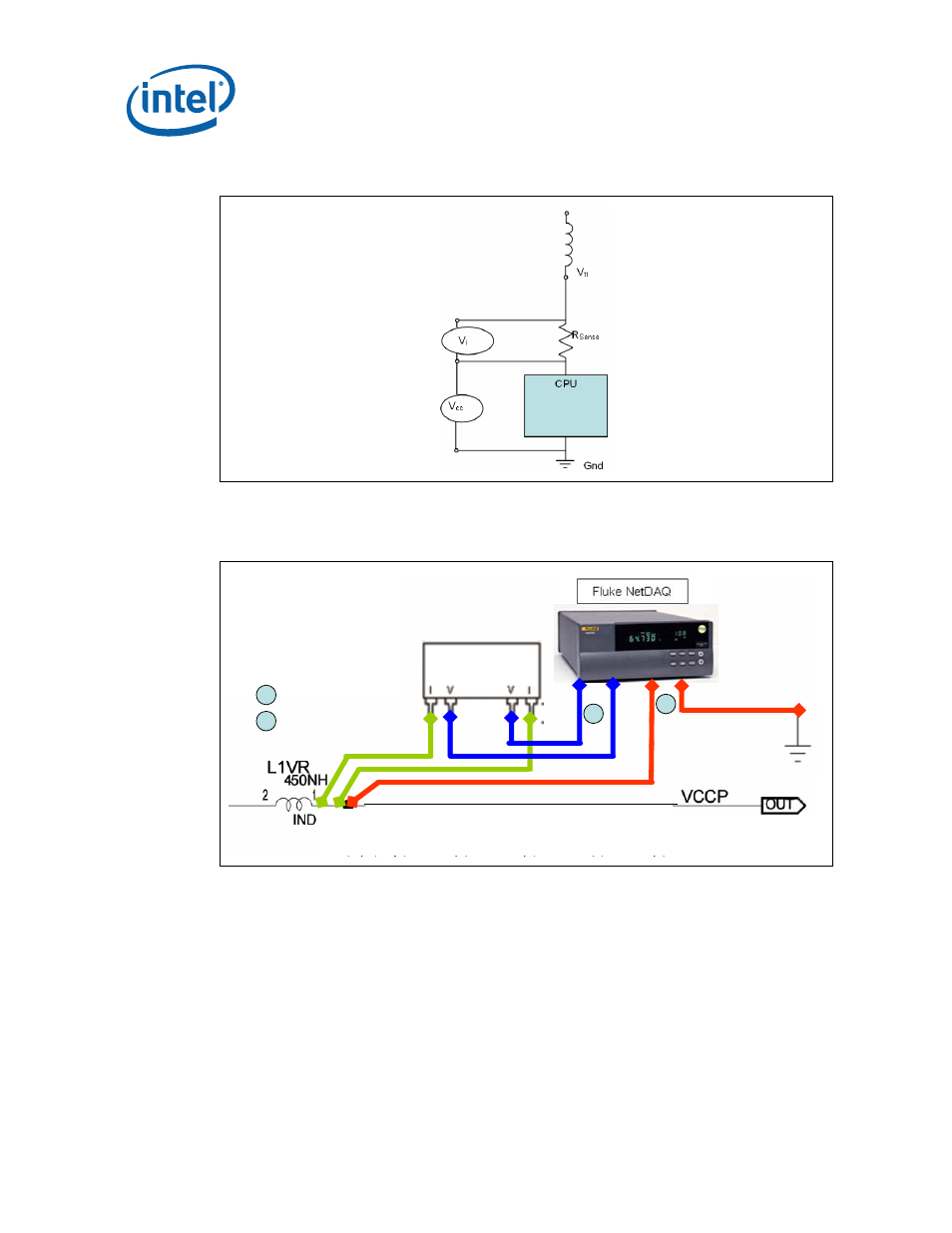

Figure 13. Precision Resistor Connected in-series with Processor Circuitry for Power
Measurement
Figure 14. Installation of Isotek Resistor on Intel
®
Desktop Board D201GLY2 to Setup
Connection for Power Measurement
Isotek
Resistor
Measuring V
i
Measuring V
CC
1
2
1
2
Isotek
Resistor
Measuring V
i
Measuring V
CC
1
2
1
2
