88

Intel

®

Server System SR9000MK4U Product Guide

Installing the Hard Drive Backplane Cover

These steps assume the top cover is already removed from the system.

1. Set the hard drive backplane cover into the chassis, inserting the three tabs on the

backplane cover through the slots in the chassis, as shown in the figure below.

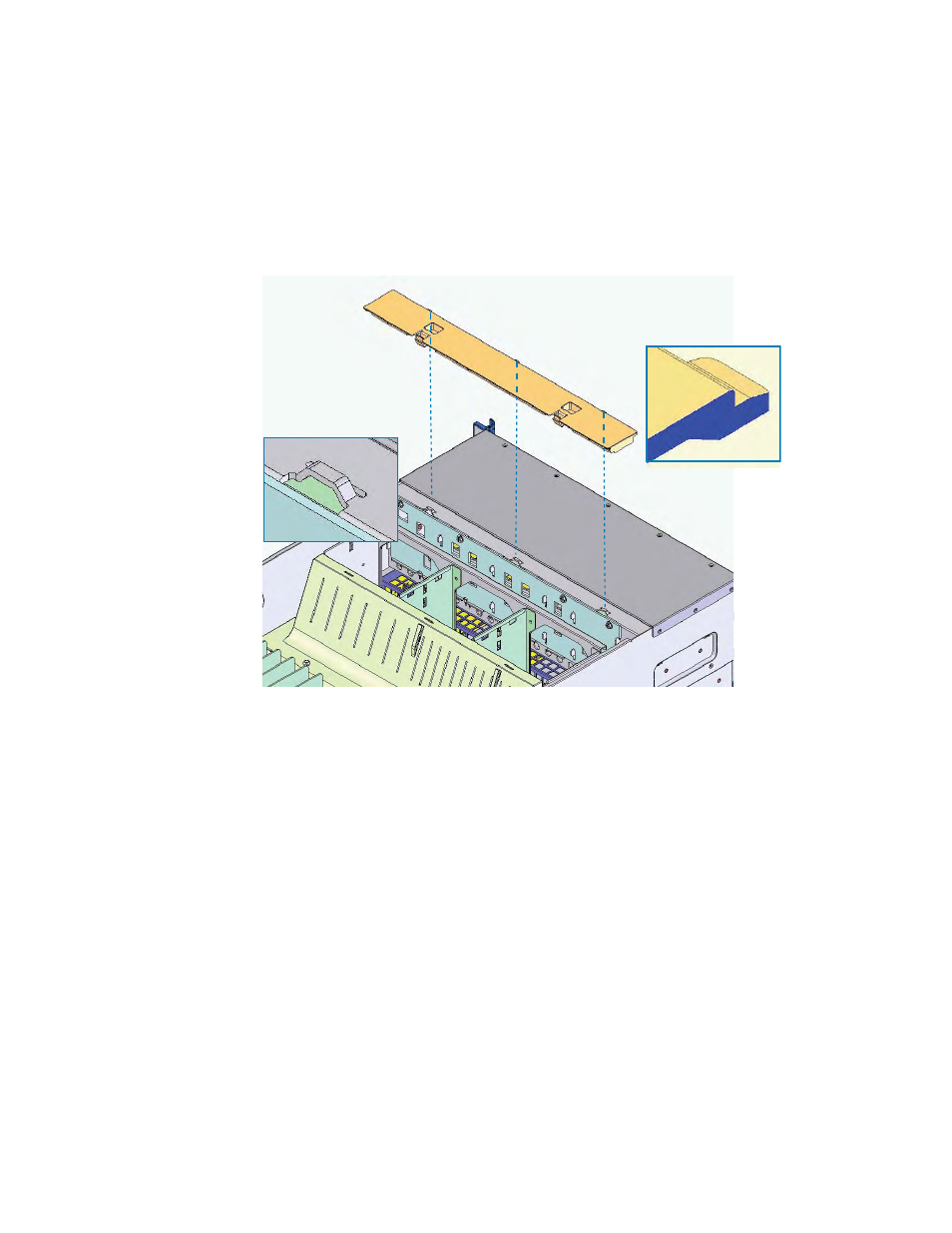

Figure 89. Installing the Hard Drive Backplane Cover

2. Push down on the backplane cover until it snaps into place.

3. Verify that two levers on top are latched, as shown by letter “A” below.

AF001233
