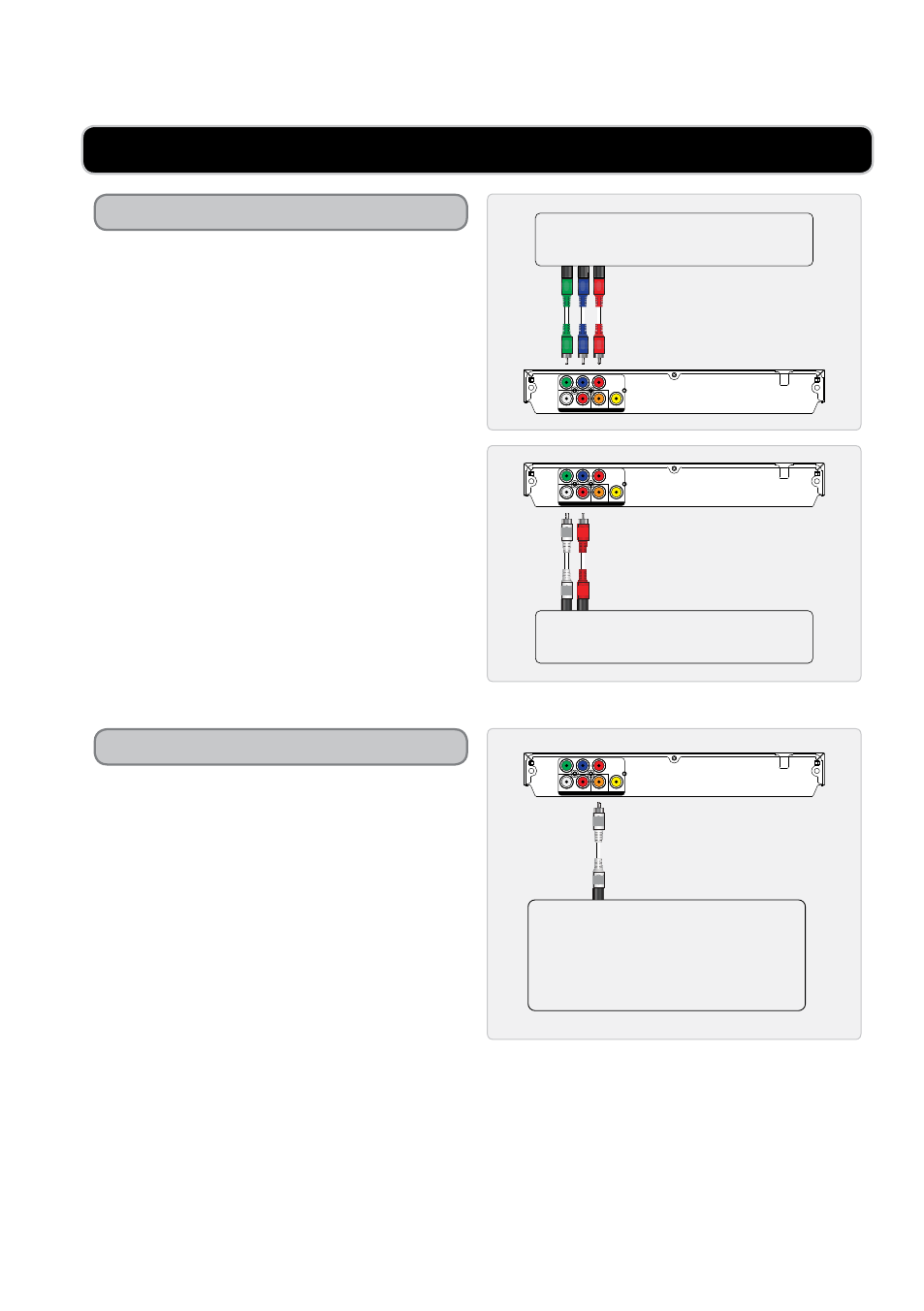

component Video output
digital audio output
adVanced teleVision connection
Requires a component video cable (not
included).
1 Plug a component video cable into
the comPonent Video outPuts
(green, blue, red) on the DVD player
and the component video input
(green, blue, red) on a television.
2 Plug the included RCA audio/video
cable into the rca stereo audio
outPuts (red and white) on the
DVD player and the RCA stereo
audio inputs (red and white) on a
television.
3 Adjust the television’s input setting
to correspond to the inputs used
when connecting the DVD player.
Requires a coaxial digital audio cable
(not included).
1 Plug a coaxial digital audio cable
into the coaXial digital audio
outPut (black) on the DVD player
and the coaxial digital audio input
(black) on a television or stereo
system.
2 Adjust the television or stereo
system’s input setting to correspond
to the input used when connecting
the DVD player.
