The Infinity Intermezzo 1.2s offers unprecedented flexibility for
connecting the system to any type of audio or home-theater system.
Consult the table at right to determine which system description
most closely matches your own, then follow the hook-up method
corresponding to that system.
If none of these system configurations seem to match yours,
consult your dealer or Infinity customer service for direction on
how best to hook up your system.
For Methods 2, 3a, 3b and 4, make sure all bass-management
features are properly set. The Audio channels should all be set to
“Small” or “High-Pass” and the subwoofer set to “On.”
– + + –
+ –
OUTPUTS
POWER
0
LOW-PASS
FILTER
LOW-PASS
FILTER
LOW-
LEVEL
INPUT
LOW-
LEVEL
OUTPUT
HIGH-LEVEL
HIGH-PASS
FILTER
PHASE
AC FUSE
6A 250V
180 80
50 130
ON OFF ON OFF
I N T E R M E Z Z O 1 . 2 s L
R
L
R
CAUTION
RISK OF ELECTRIC SHOCK DO NOT OPEN
RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR
LOOSEN TERMINALS
INSERT BARE END;
TIGHTEN TERMINALS
SET LOW-PASS
FILTER
ᕩ
TO “ON”
SET HIGH-PASS SWITCH ᕥ
TO “ON” OR “OFF” (SEE P. 8)
1.
2.
3.
4.
BLACK = –
NO STRIPE = – STRIPE = +
RED = +
INPUTS
L
R
120V – 60HZ 6A
– +
AMPLIFIER/RECEIVER
SPEAKER
OUTPUTS LEFT RIGHT
(ONE CHANNEL SHOWN)
– – + +
RIGHT
SPEAKER
– +
2-Channel receiver or integrated amplifier
that has no subwoofer output or
Pre-out/Main-In connectors
1
2-Channel receiver or integrated amplifier
with preamp output and input connectors
2
2-Channel system with separate preamplifier
and power amplifier
2
Dolby* Pro Logic* with THX, ® Dolby Digital,
or DTS ® receiver with a filtered subwoofer
(or LFE) output connector 3a
Dolby Digital or DTS processor with separate
power amplifiers or multichannel amplifier
3b
Non-THX certified Dolby Pro Logic receiver
with full-range subwoofer outputs
4
System Type Connection Methods

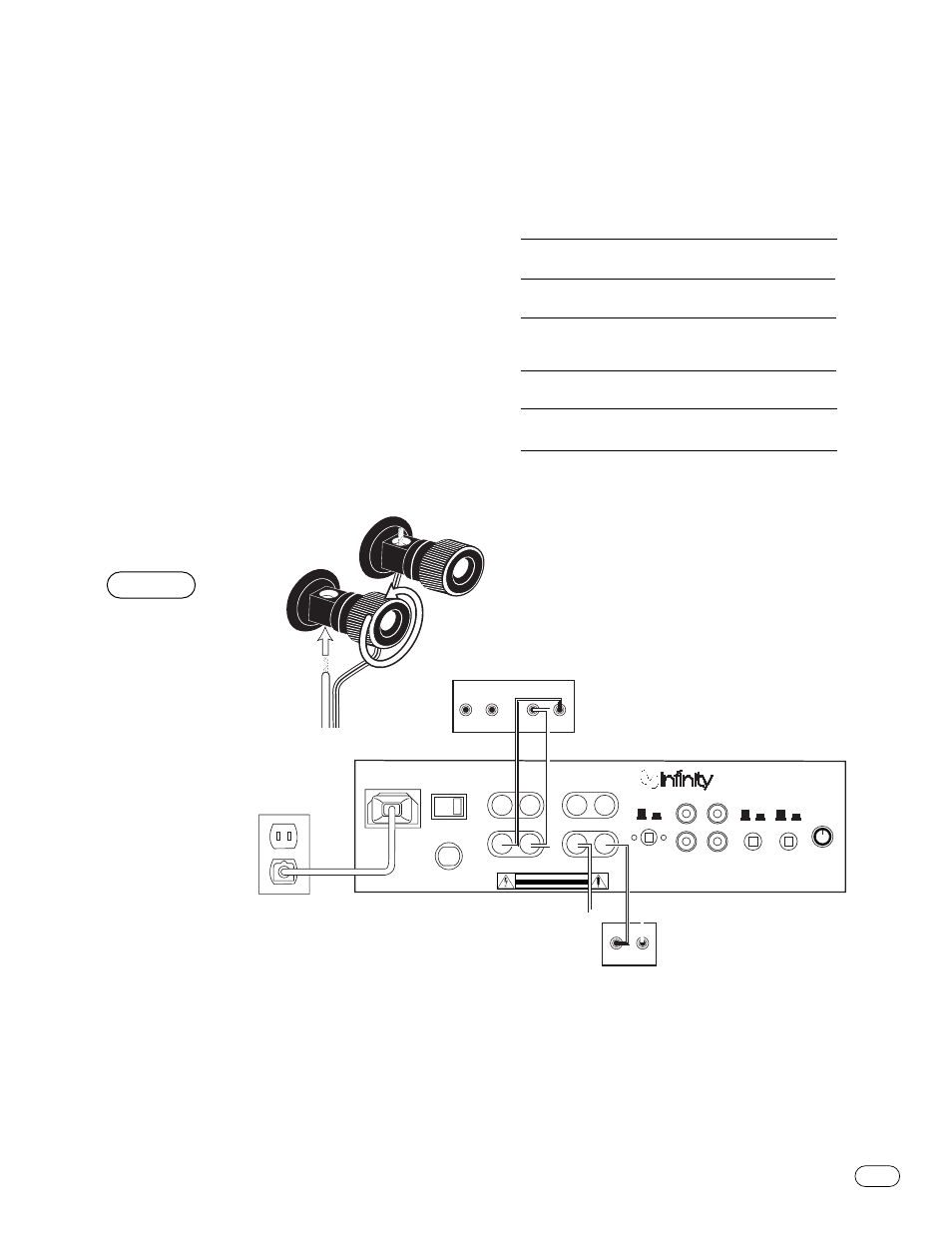

Method 1
5 INTERMEZZO 1.2s
