< Control LCD & PDP through Serial Port >
1. How to connect external equipment

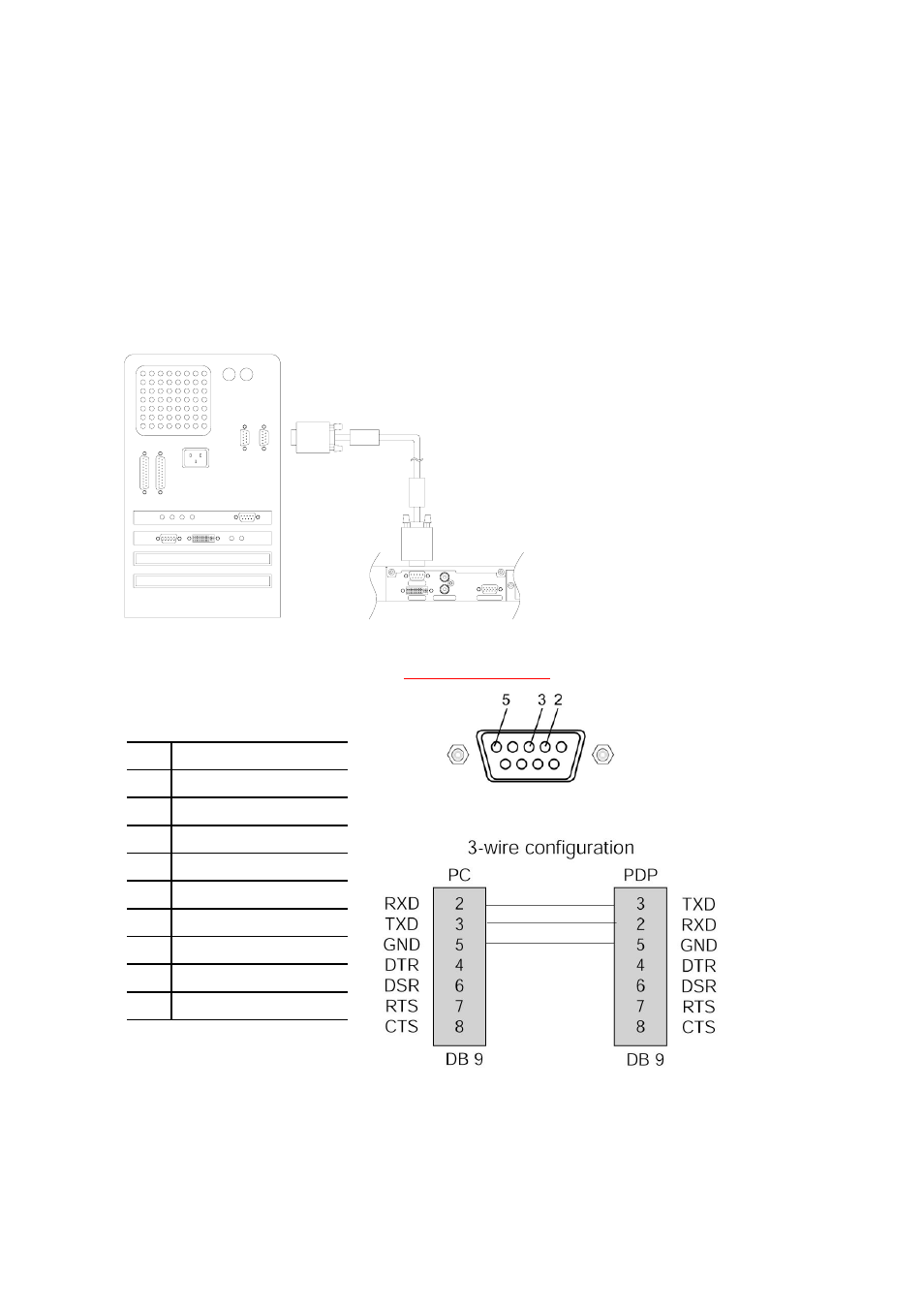

- Connect the serial port of external equipment to the RS-232C jack of the monitor
back panel.
- RS-232C cables not included with the Monitor.
- The remote control and LCD&PDP front panel buttons (except main power) doesn’t
operate when controlling LCD&PDP set by PC.
DVI INPUT
RGB PC INPUT
AUDIO INPUT
Com1
Com2
RS-232C Cable
< PDP >
< PC >
RS-232C
- Type of connector : D-Sub 9-Pin
female to female
No conection
9
No conection
8
No conection
7
No conection
6
GND
5
No conection
4
TXD (Transmit data)
3
RXD (Receive data)
2
No conection
1
Pin Name
No.
[NOTE]
* Use a crossed (reverse) cable.
- Cable Side (female) -
Harsper R&D
2005. 4. 20.
