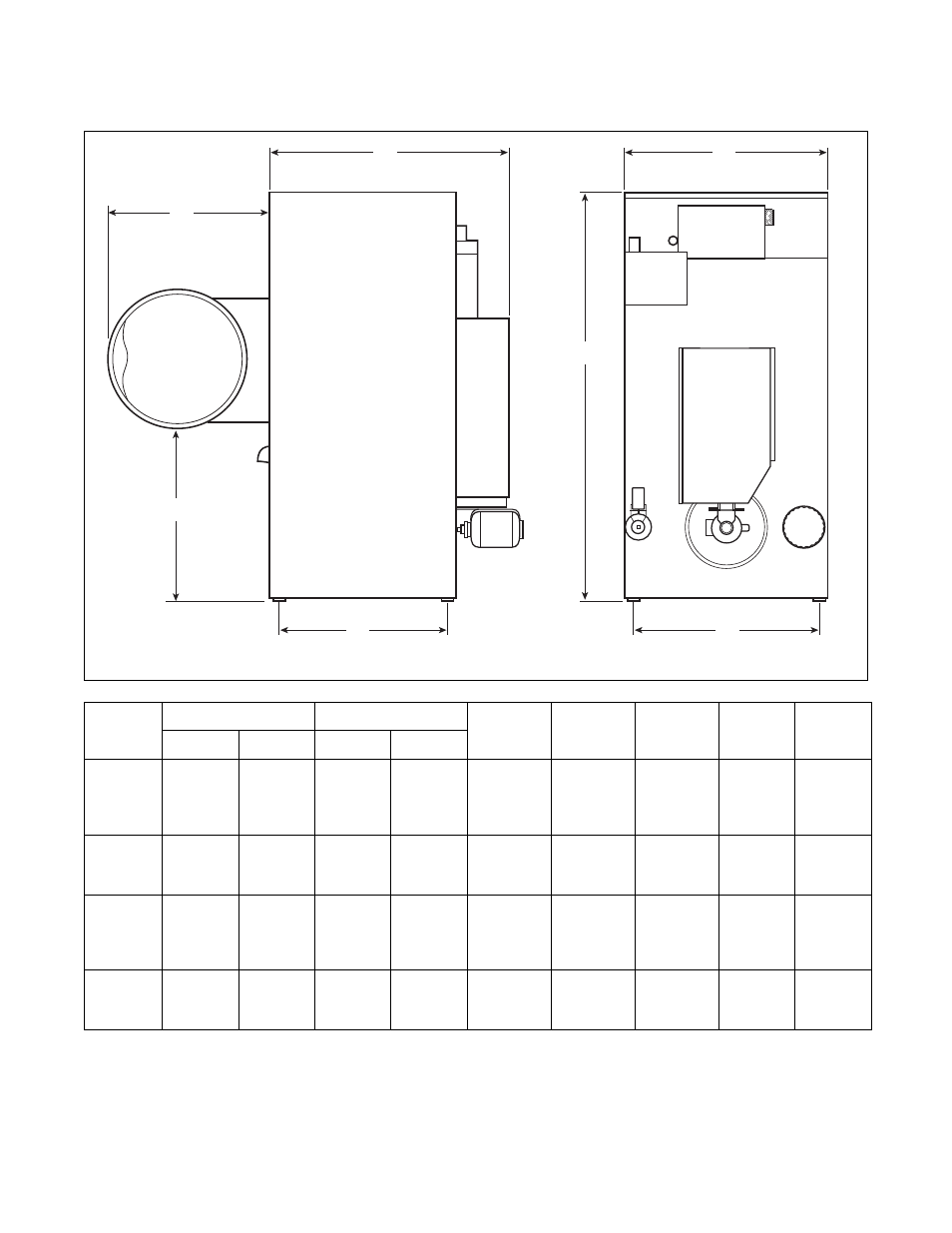

Cabinet Dimensions
* A, H, S and U models prior to Serial No. 0308001307 and all other models.
** A, H, N, S and U models after Serial No. 0308001307.
TMB2210N
C
B
E
D
A
G F
Models
A B
C D E F G
* ** * **
50
Pound
Gas and
Electric
30.75 in.
(781 mm)
28.75 in.
(730 mm)
28.25 in.
(717 mm)
33.87 in.
(860 mm)
47 in.
(1194 mm)
76.625 in.
(1946 mm)
38.625 in.
(981 mm) 33 in.
(838 mm)
29.5 in.
(749 mm)
50
Pound
Steam
30.75 in.
(781 mm)
28.75 in.
(730 mm)
28.25 in.
(717 mm)
33.87 in.
(860 mm)
47 in.
(1194 mm)
80 in.
(2032 mm)
38.625 in.
(981 mm) 33 in.
(838 mm)
29.5 in.
(749 mm)
75
Pound
Gas and
Electric
30.75 in.
(781 mm)
28.75 in.
(730 mm)
28.25 in.
(717 mm)
33.87 in.
(860 mm)
53 in.
(1346 mm)
76.625 in.
(1946 mm)
38.625 in.
(981 mm) 33 in.
(838 mm)
35.5 in.
(902 mm)
75
Pound
Steam
30.75 in.
(781 mm)
28.75 in.
(730 mm)
28.25 in.
(717 mm)
33.87 in.
(860 mm)
53 in.
(1346 mm)
80 in.
(2032 mm)
38.625 in.
(981 mm) 33 in.
(838 mm)
35.5 in.
(902 mm)
