Chapter 7. Network enforcement subsystem implementation 331
5. The action should be
Allow
and the protocol should be
All
(Figure 7-99).

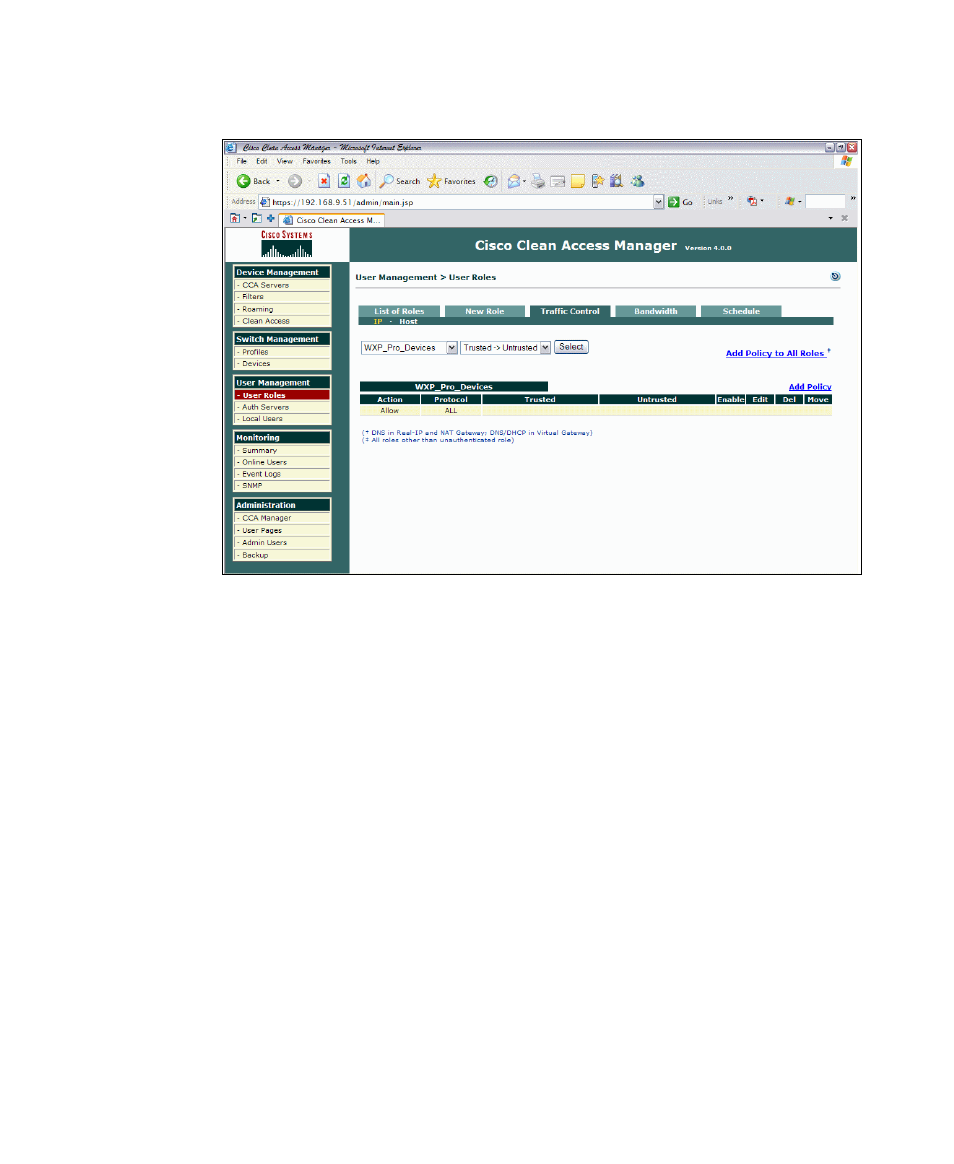

Figure 7-99 Rules for untrusted to trusted
6. Select the group you created (
AllowAll
) from the first drop-down menu.
Select Untrusted
→
Trusted from the second drop-down menu. Click Add
Policy.
7. This rule will be to allow access from the Auth VLAN to the Security
Compliance Manager. Set the following parameters:
Action: Allow
State: Enabled
Category: IP
Protocol: TCP
Untrusted: 192.168.20.0/255.255.255.0:*
Trusted: 192.168.9.220/255.255.255.255:*
Description:
Allow access to Security Compliance Manager
8. Click Add Policy.
9. Repeat step 7, changing
Trusted
to
192.168.104.10
and
Description
to
Allow
Access to TCM
.
10.Repeat step 7, changing
Protocol
to
ICMP
and
Type
to
Any
for both the
Security Compliance Manager and Tivoli Configuration Manager.
