Ikelite C-Lite 8 - Manual

O OPPEEN NIIN NGG TTH HEE LLIIGGH HTT____________________________________________________________________________________________________________________
The unique flip-lock lever makes opening and closing
incredibly easy and dependable.
Simply extend the locking lever, flip it up, and rotate.
The internal spring automatically pushes open the light for
easy bulb or battery replacement. Flip the locking lever
down and the C-Lite 8 seals with ease and confidence.
• Place light face down on flat surface.
• Pull out on the locking lever.
• Flip the lever up.
• Rotate the lever counter-clockwise 90° and the internal
spring automatically pushes open the light.
• Lift the body off of the front. The batteries remain
housed in the holder.
O O--RRIIN NGG______________________________________________________________________________________________________________________________________________
Keep the o-ring and sealing surfaces clean. DO NOT stretch the o-ring when cleaning. It is not
necessary to lubricate the o-ring. Never use spray lubricant because it will crack the plastic.
Place the clean o-ring on the inner recess of the front head assembly.
Do not dent or damage the front edge of the lite body as the o-ring seals against this surface.
CCLLO OSSIIN NGG TTH HEE LLIITTEE__________________________________________________________________________________________________________________________
• Make sure the on/off switch has been rotated left to the off position.
• Place the front lens face down on a flat surface. Check that the o-ring and sealing surfaces are
clean and undamaged; make sure the o-ring is positioned properly on the inner recess of the front.
• Place locking lever in the open position (pull out, flip up, and rotate lever).
• Align the handle on the body with the handle reference on the battery holder. Lower the body
over the batteries. Proper alignment of the body with the front is extremely important to avoid
possible damage to the internal components.
• To seal the light, simply reverse the opening sequence. Press down
slightly on the body and rotate the lever clockwise. Push the lever down
and slide the lever in to the locked position.
O ON N//O OFFFF SSW WIITTCCH H____________________________________________________________________________________
The large rotating switch with sliding lock is easily operated with one
hand. Unlock the switch by sliding the white-colored lock down. Rotate
the switch fully to the right to turn ON the light.
Rotate the switch to the left to turn the light OFF. To lock the switch,
slide the white lock upward towards the light body. Lock the switch when
the light is not in use. Never look into the face of the lite because of its
blinding intensity.
BBAATTTTEERRYY IIN NSSTTAALLLLAATTIIO ON N____________________________________________________________________
Accepts eight C-cell batteries, alkaline or ni-cad. Alkaline batteries
provide 14W initial intensity and 5.5 hours of high intensity light.
Consumer ni-cads reduce intensity and burn time.
• Note the polarity markings at the base of the battery holder assembly.
• Follow the polarity markings when installing two batteries in each
of the four columns. Make sure that both batteries in each column have
the same polarity direction.
• For best performance, we recommend Energizer® alkaline batteries.
RCD
OPEN
RC
D
RCD
INDPLS IN U.S .A.
UNLOC K
RCD
INDPLS IN U.S .A.
UNLOC
K
OPENING THE LITE
Pull Out
Flip Up Rotate
EN
ER
G IZ
ER
EN
ER
G IZ
ER
+
+
EN
ER
G IZ
ER
-
-
EN
ER
G
IZ
ER
EN
ER
G
IZ
ER
+
EN
ER
G IZ
ER
EN
ER
G IZ
ER
-
-
EN
ER
G
IZ
ER
+
H A N
D L E
S W I T C H
& S L O T
22

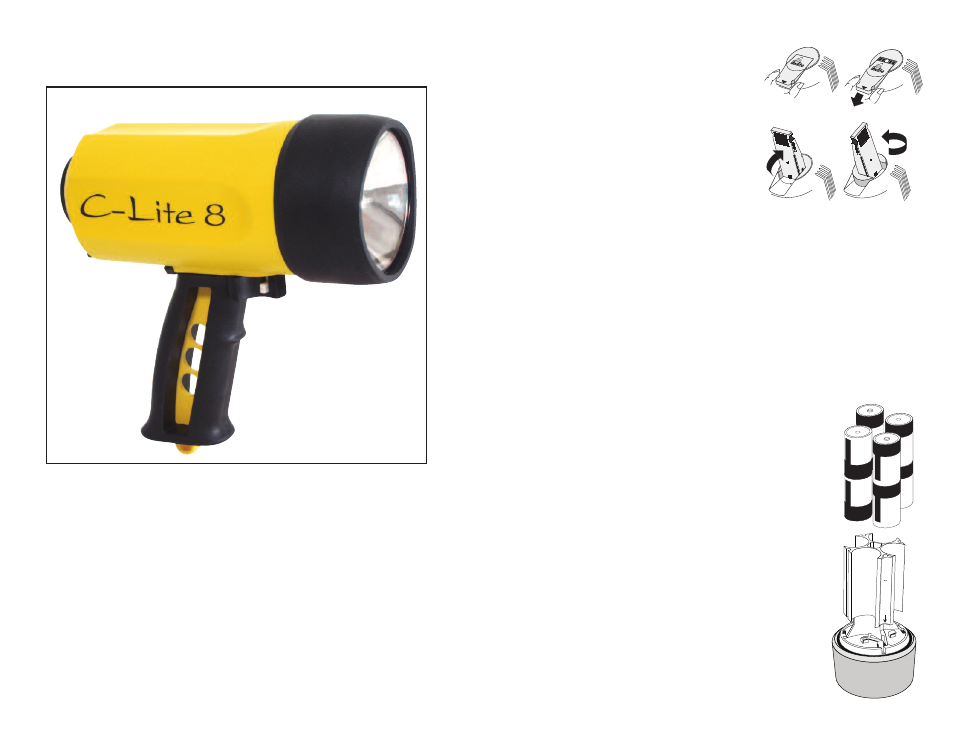

IIKKEELLIITTEE CC--LLIITTEE 88
The Ikelite C-Lite 8 features our super intense 10V-quartz halogen lamp producing
an incredibly bright penetrating medium spot beam with good peripheral coverage.
8 C-cell alkaline batteries provide 14W initial intensity and 3.5 hours of high intensity
light. Rubber coated pistol grip handle featured for comfortable exploration night or day.
The rear clamp design assures easy opening and dependable resealing. Virtually
indestructible casing. Rubber shroud protects the front lens while blocking side
reflections. Large rotating switch and sliding lock afford easy operation even when
wearing a bulky glove. Nickel-plated brass contacts boost the electrical efficiency and
corrosion resistance. Waterproof to 90m (300 feet).
N Noottee:: Please read all instructions before using this product.
