Installing Internal Drives
Each hot-swap drive that you plan to install must have a
hot-swap-drive tray attached. The drive must have a single
connector attachment (SCA) connector. Your server comes with 12
hot-swap drive trays.
Internal Drive Bays
Internal drives are installed in bays. All PC Server 704 models come
with a preinstalled diskette drive and CD-ROM drive. The
CD-ROM drive is installed in one of the four bays in the upper-left
front of the server. You can install hot-swap drives in the 12 right
bays only. The number of preinstalled hot-swap hard disk drives
might vary according to the model that you purchased.

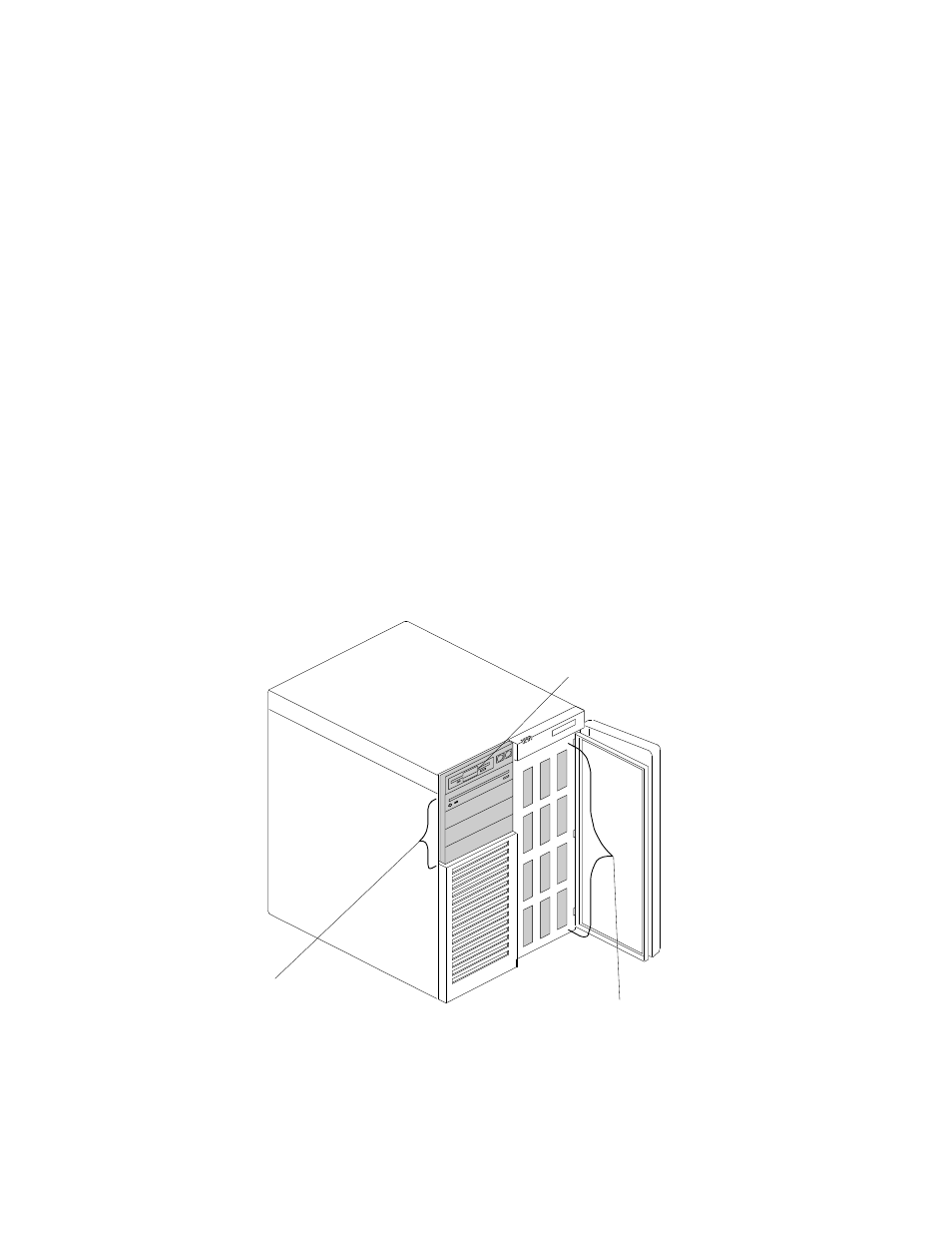

Removable Media
Bays
Hot Swap Bays
Diskette Drive Bay
Chapter 4. Installing Options
157
