FLANGE
SINK MOUNT
A
B
Waste King, ISE, Toledo, National 4½" 5-1/8" 11327A Discard previous adaptor parts.
FMC, Avant 4-5/8" 5-1/8" 11378 Re-use split ring.
FMC, Avant 5¼" 5-11/16" 11327C Discard previous adaptor parts.
Bus Boy 6" 6-7/8" 11327K Discard previous adaptor parts
(has 3-piece split ring).
ISE, Toledo 6" 7-3/16" 11327B Discard previous adaptor parts.
Standard ISE mounting 6-5/8" 7-1/8" 11599E Discard previous adaptor parts.
National, Hobart, Toledo 7" 7-3/8" 11327G Discard previous adaptor parts.
National mounting has ten
bolt circle on split ring.
Salvajor 7" 7¾" 11599A Discard previous adaptor parts
(split ring supplied).
ISE, Toledo 8" 9¼" 11327 Discard previous adaptor parts
(split ring supplied).
Normally Used By A B
ISE Ring
Adaptor #
Special Information
A – Diameter (sink or bowl opening)
B – Diameter (outside flange)
1
A
E
B
Waste King, Red Goat 4½" 6½" 5½" 6 11599 Discard previous
adaptor parts. Use
existing bolt holes.
American Delphi, Atomic 6" 7½" 6-7/8" 6 11378D Discard previous
adaptor parts. Use
existing bolt holes.
National, Hobart 7" 8½" 8-1/16" 10 11599B Discard previous
adaptor parts.
Hobart 9" 12-1/8" 11-1/8" 8 11327E Discard previous
adaptor parts. Use
existing bolt holes.
Normally Used By A E
No. of
Bolt Holes
B
Special
Information ISE Ring
Adaptor#
A – Diameter (sink or bowl opening)
B – Diameter (outside flange)
E – Diameter (bolt hole circle)
2
A
B
BOLT
HOLES IN
UNATTACHED
RING
Waste King 6" 6½" 11327D Loose ring on sink not used with
this adaptor (O.D. of loose ring is
7½" with six bolts – 7" bolt hole
circle diameter).
Normally Used By A B Special Information
ISE Ring
Adaptor No.
A – Diameter (sink or bowl opening)
B – Diameter (outside flange)
3
A. Disconnect existing disposer from sink bowl or cone.
B. Find the diagram that matches your sink bowl or cone.
C. Measure the A and B dimensions (also C, D and E if indicated).
D. Match the manufacturer and dimensions to find the adaptor number to order.

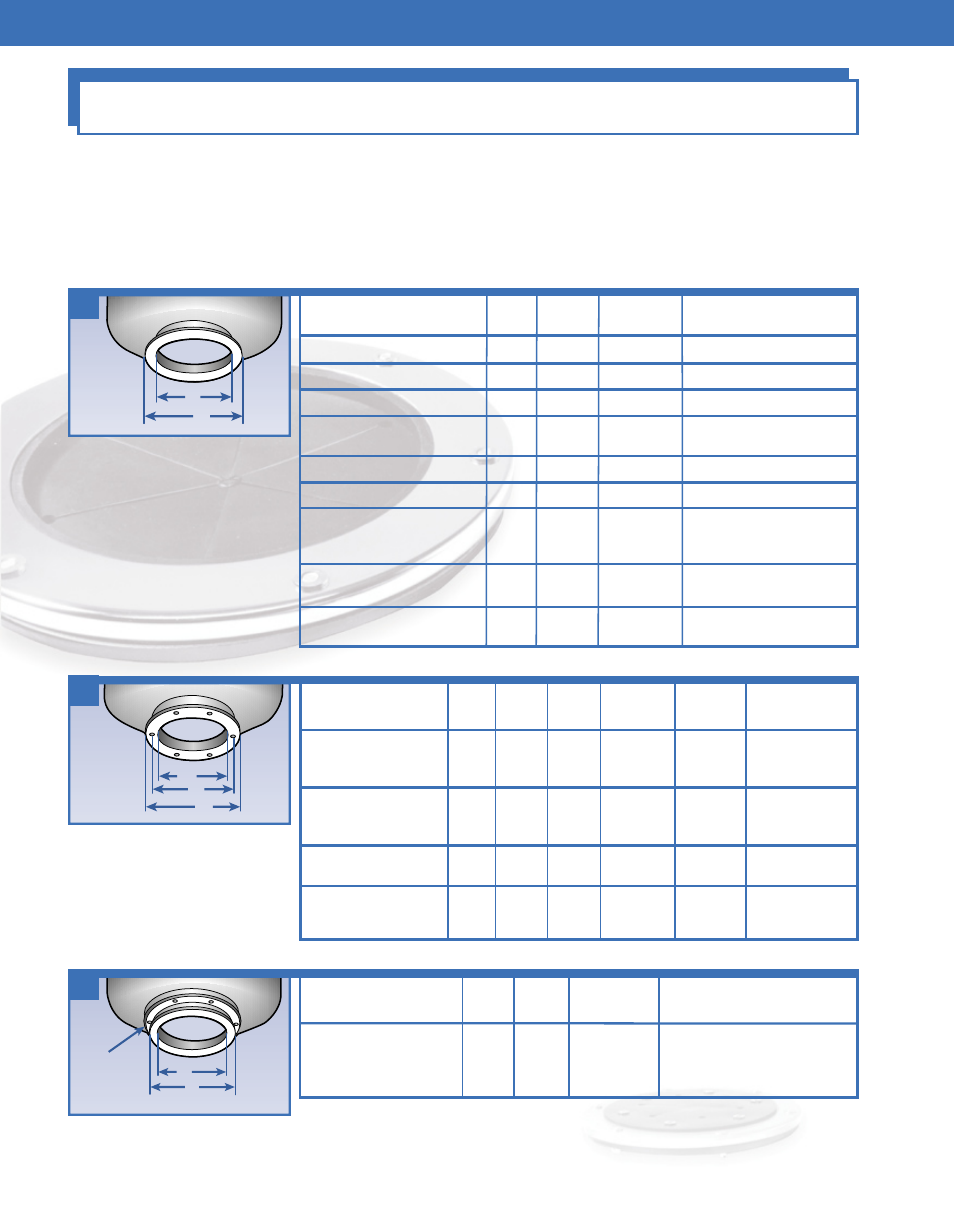

Use This Chart to Select the Right InSinkErator Mounting Adaptor
