Intel M600 - Manual (Page 97)

87 Chapter B

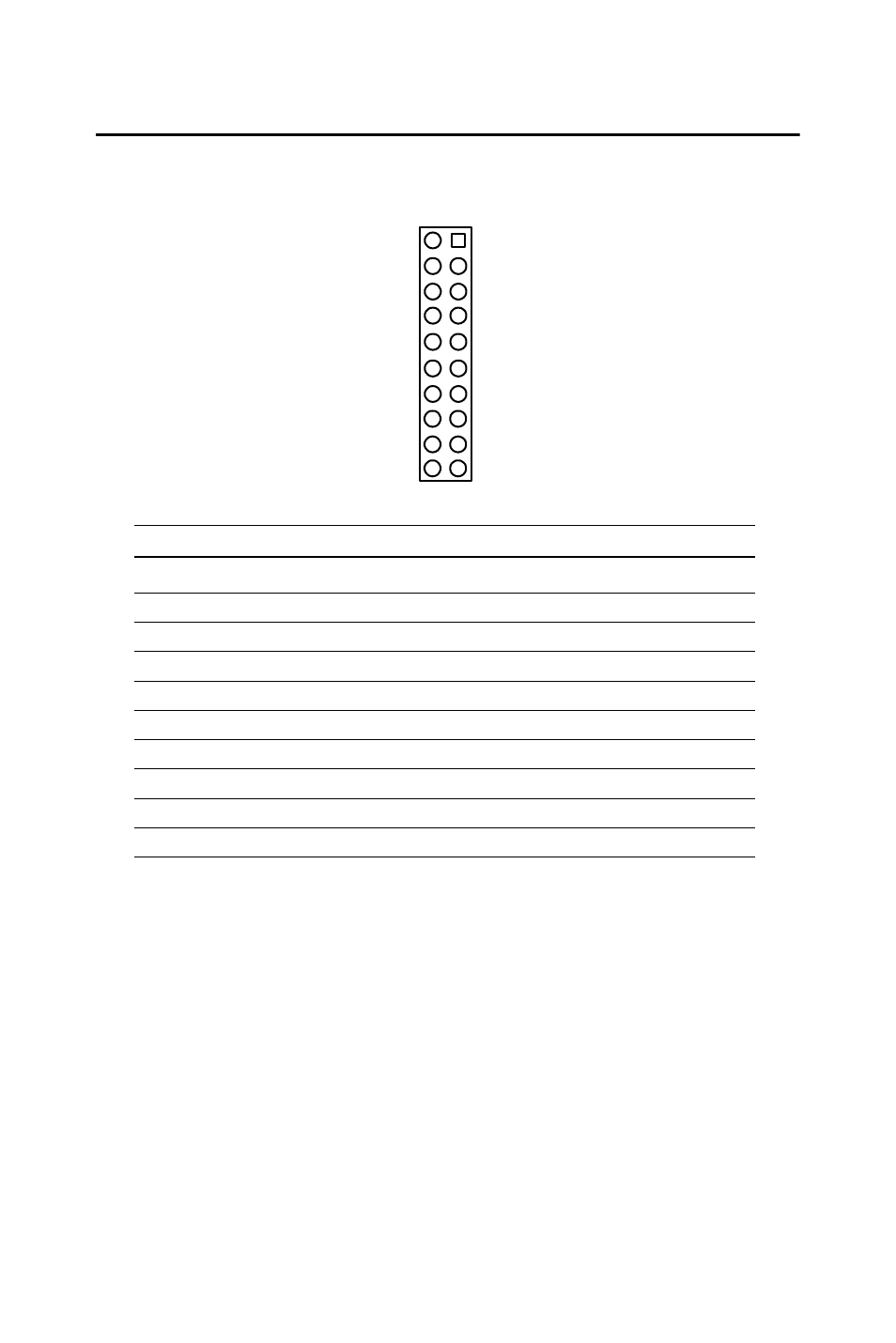

B.22 TMDS Connector(CN7)
Table B.22: TMDS Connector(CN7)
Pin Signal Pin Signal
1 C0- 2 VCC
3 C0+ 4 CK-
5 GND 6 CK+
7 C1- 8 GND
9 C1+ 10 DVI_CLK
11 GND 12 DVI_DATA
13 C2- 14 HP_DET
15 C2+ 16 MI2C DATA
17 VCC 18 MI2C CLK
19 NC 20 NC
9
1
2
10
11
19
12
20
3
4
5
6
7
8 13
14
15
16
17
18
