Emergency power off (epo) option – IBM Uninterruptible Power Supply IBM UPS 7500XHV User Manual
Page 19
15
N
OTE
:
S
ETTINGS ARE MADE THROUGH THE SUPPLIED
P
OWER
C
HUTE
B
USINESS
E
DITION SOFTWARE
,
N
ETWORK
M
ANAGEMENT
C
ARD
,
OR TERMINAL MODE
.
R
EFER TO THE SOFTWARE HELP GUIDES FOR DETAILS
.
F
UNCTION
F
ACTORY
D
EFAULT
U
SER
S
ELECTABLE
C
HOICES
D
ESCRIPTION
Output Frequency
Automatic
(50
± 3 Hz or
60
± 3 Hz)
Automatic,
50
± 3 Hz,
50
± 0.1 Hz,
60
± 3 Hz,
60
± 0.1 Hz
The user is able to set the allowable
uninterruptible power supply output
frequency. Whenever possible, the
output frequency tracks the input fre-
quency.
Number of Battery
Packs
1
Number of Con-
nected Battery Packs
(four battery modules
per pack)
The user can define the number of con-
nected battery packs for proper runtime
prediction.
Emergency Power Off (EPO) Option
The output power can be disabled in an emergency by closing a switch connected to the EPO.
Note: Adhere to national and local electrical codes when wiring.
The switch should be connected in a normally open switch contact. External voltage is not required; the switch is powered by a
12 V internal power supply. A closed switch draws 2 mA of current.
The EPO switch is internally powered by the uninterruptible power supply for use with non-powered switch circuit breakers.
Note: The EPO circuit is considered a Class 2 circuit, (UL, CSA standards) and an SELV circuit (IEC standard).
Both Class 2 and SELV circuits must be isolated from all primary circuitry. Do not connect any circuit to the EPO terminal
block unless it can be confirmed that the circuit is Class 2 or SELV.
If the circuit standard cannot be confirmed, use a contact closure switch.
Use one of the following cable types to connect the uninterruptible power supply to the EPO switch:
•
CL2: Class 2 cable for general use
•
CL2P: Plenum cable for use in ducts, plenums, and other spaces used for environmental air
•
CL2R: Riser cable for use in a vertical run in a floor-to-floor shaft
•
CLEX: Limited use cable for use in dwellings and for use in raceways
•
For installation in Canada: Use only CSA certified, type ELC (extra-low voltage control cable)
•
For installation in other countries: Use a standard low-voltage cable according to local regulations

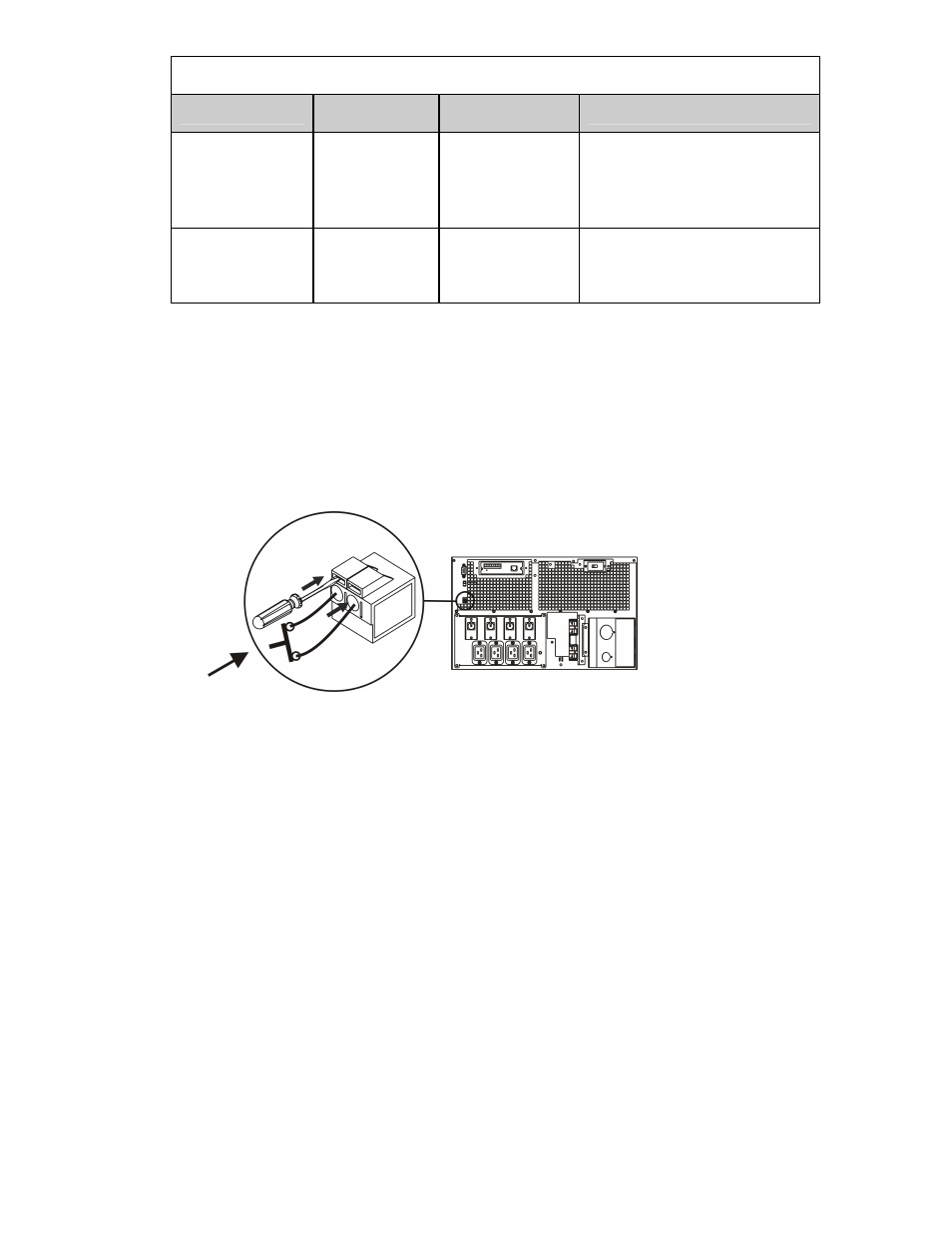

EPO
Switch
