Connections

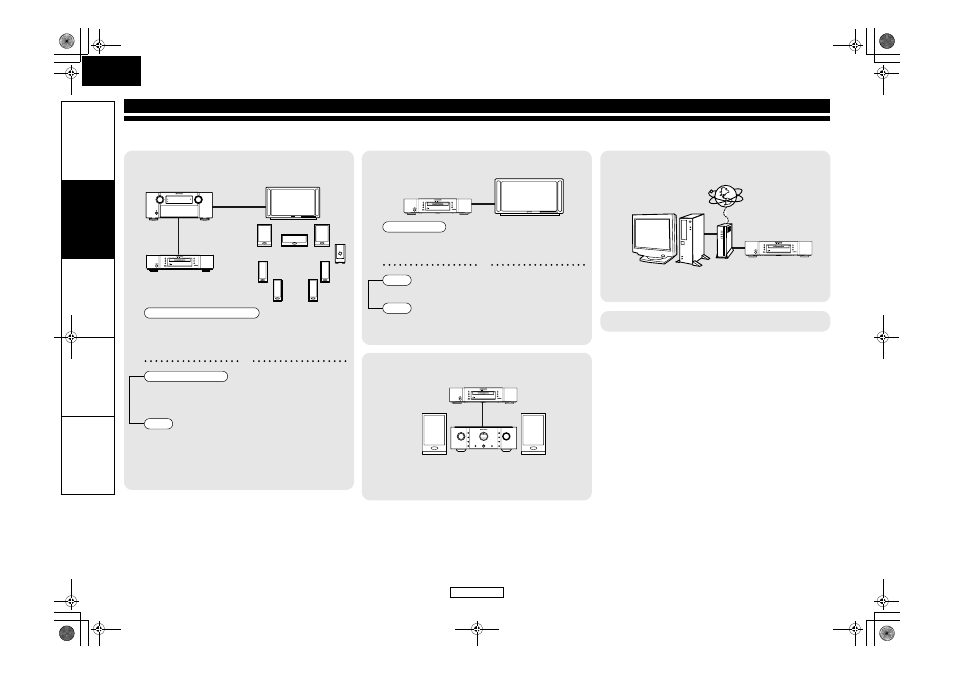

Connect the BD5004 as follows before using. Make connections according to the equipment you are connecting.
Some BD5004 settings may be necessary depending on the connection method. Check each connection item for more information.
1 Home theater playback
- Playing back using multi-channel system
• HDMI connection
“Connecting to a Display Device and an Amplifier/
Receiver with HDMI Cable” (page 12)
• Digital audio connection
“Digital Connection to an AV Amplifier with Built-in
Decoder” (page 14)
• Connecting to a TV
(VIDEO OUT/COMPONENT VIDEO OUT)
: page 12
BD5004
Multi-channel Audio + Video
or
Multi-channel Audio
Video
2 Playing back with a direct connection to a TV
• Connecting to a Display Device with
HDMI Cable
: page 12
• Connecting to a TV (2ch AUDIO OUT) : page 12
• Connecting to a TV
(VIDEO OUT/COMPONENT VIDEO OUT)
: page 12
3 Playing back 2-channel audio
• 2ch audio connection
“Connection to a Device with 2-channels of Analog
Audio Inputs” (page 15)
BD5004
Audio + Video
or
Audio
Video
BD5004
4 Using BD-Live function or updating the software
version of BD5004
• NETWORK connection
“Network Connection with LAN” (page 15)
• Connecting the AC cord : page 16
BD5004
