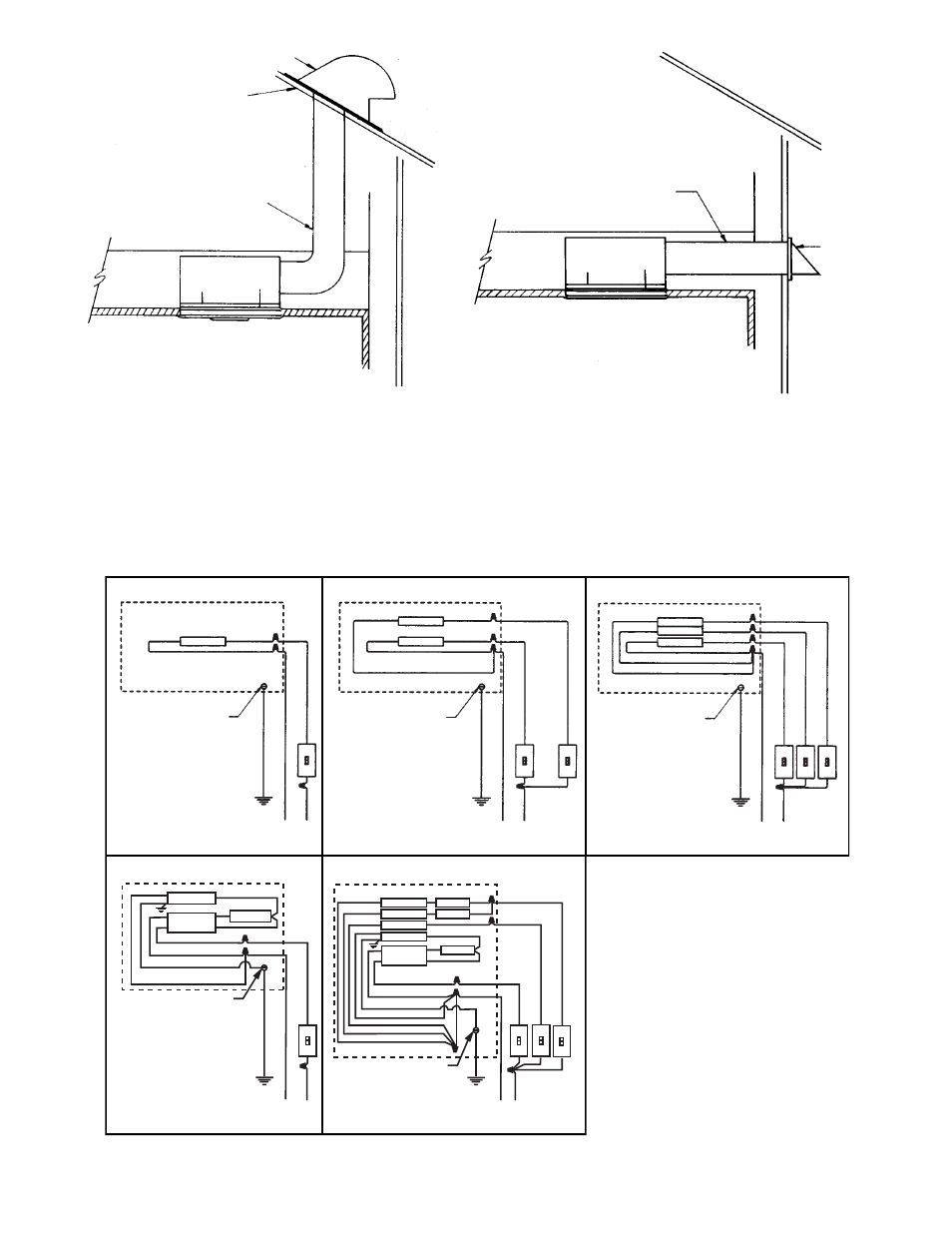

FIG. 6 FIG. 7
CAUTION!
BE SURE ALL WIRING COMPLIES WITH LOCAL AND NATIONAL ELECTRICAL
CODES, AND HOUSING IS PROPERLY GROUNDED.
ROOF CAP
WALL
CAP
4” ROUND
DUCT
4” ROUND
DUCT
ROOF
OUTLET BOX
RECEPTACLE
WIRING DIAGRAM
MODELS 768IC, 770IC
LIGHT
GREEN
WHITE
WHITE
WHITE
GREEN
BLACK
WIRING DIAGRAM
MODELS 7100H, 7150H
SENSOR
TIMER
BLACK
WHITE
WHITE
WHITE
WIRING DIAGRAM
MODELS 7100L, 7150L,
7100FL, 7150FL, 8090L
AND 8100L
LIGHT
NIGHT LIGHT
BLUE
BROWN
WHITE
WHITE
WHITE WHITE
BLACK
WIRING DIAGRAM
MODELS 7100FLH, 7150FLH
LIGHT BALLAST
BALLAST LIGHT
NIGHT LIGHT
BLU
BLU
BROWN
VENTILATOR
BLACK
WHITE
GROUND SCREW
GROUND
WHITE BLACK
BLACK
WIRING DIAGRAM
MODELS 761, 763, 765
7100, 7130, 7150, 8090
AND 8100
WALL
SWITCH
WALL
SWITCH
WALL
SWITCH
WALL
SWITCH
WALL
SWITCH
WALL
SWITCH
120V AC
60 HZ
SUPPLY
OUTLET BOX
RECEPTACLE
VENTILATOR
GROUND SCREW
GROUND
WHITE BLACK
BLACK BLACK
120V AC
60 HZ
SUPPLY
OUTLET BOX
RECEPTACLE
VENTILATOR
GROUND SCREW
GROUND
WHITE BLACK
BLACK BLACK BLACK
120V AC
60 HZ
SUPPLY
WALL
SWITCH
WALL
SWITCH
WALL
SWITCH
WALL
SWITCH
OUTLET BOX
VENTILATOR
TIMER
GROUND SCREW
GROUND
WHITE BLACK
BLACK
120V AC
60 HZ
SUPPLY
OUTLET BOX
RECEPTACLE
VENTILATOR
SENSOR
GROUND SCREW
GROUND
WHITE BLACK
BLACK BLACK BLACK
120V AC
60 HZ
SUPPLY
BLACK
WHITE
BLACK
WHITE
