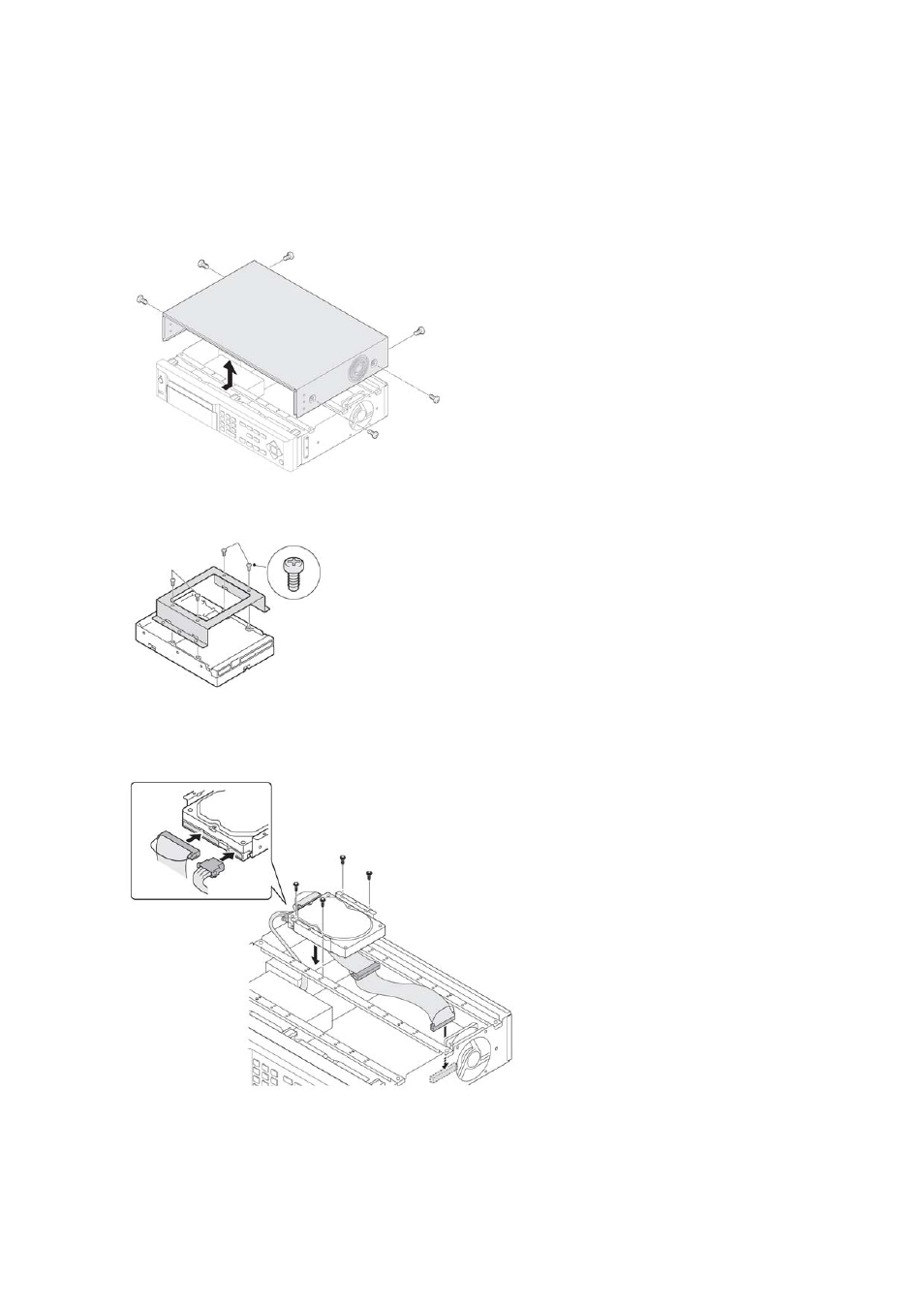

HDD INSTALLATION GUIDE

1. Unfasten the cover of the unit.

2. Fix the bracket to the hard disk using the supplied HDD mounting bracket screws.

3. Connect the supplied IDE HDD 80pin cable and Power cable to the hard disk and fix the hard disk to

the unit the supplied HDD fixing screws.

4.

HDD Jumper must set as MASTER
