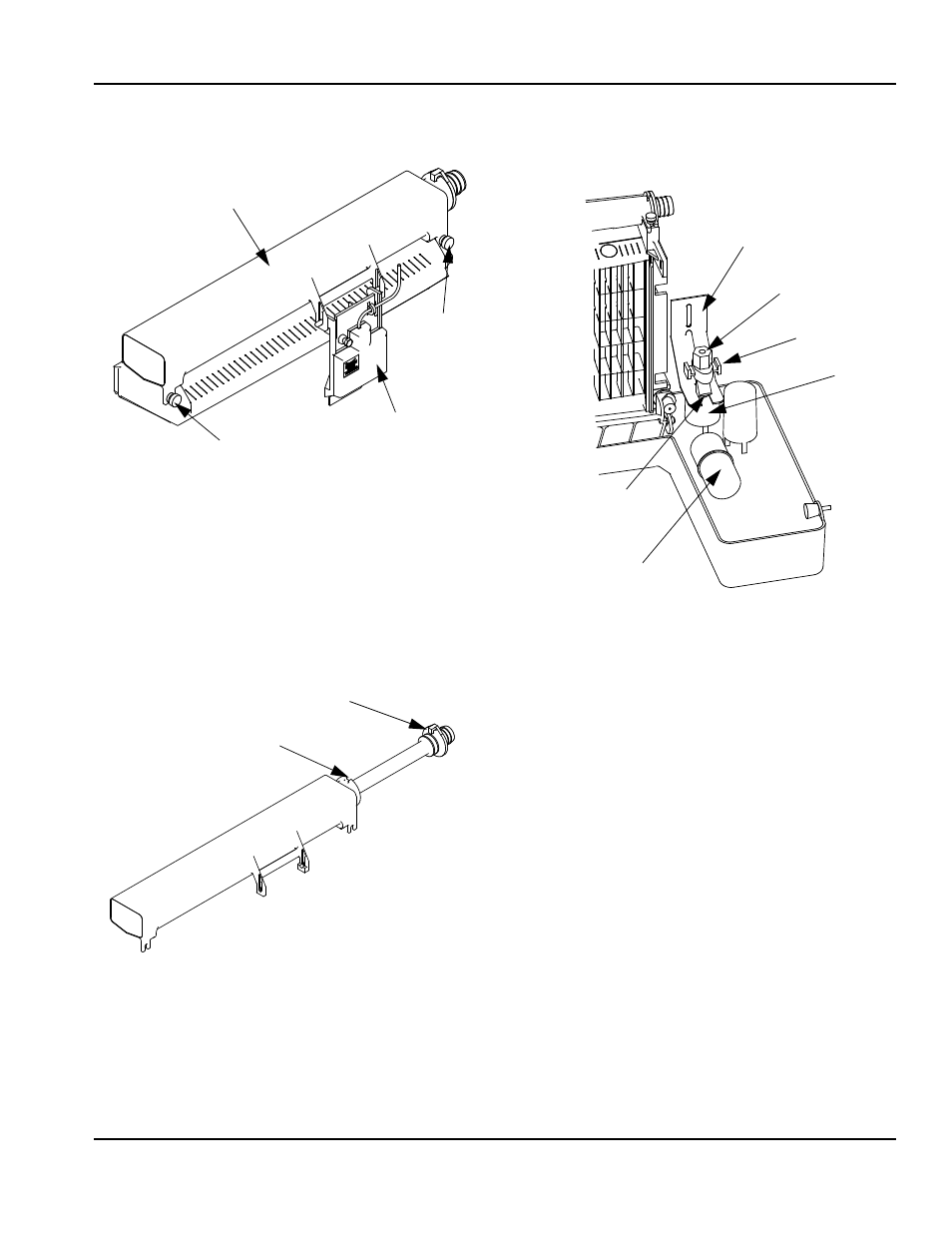

Q130 Water Distribution Tube Removal
•
Loosen the two thumbscrews, which secure the
distribution tube.
•
Lift the distribution tube up off the thumbscrews.
Disassembly
•
Twist the barbed end until the tab lines up with the
keyway.
•
Pull the inner tube end outward.
Q130 Water Distribution Tube Disassembly
E. Remove the Float Valve
•
Turn the splash shield counterclockwise one or two
turns.
Float Valve Removal
•
Pull the float valve forward and off the mounting
bracket.
•
Disconnect the water inlet tube from the float valve at
the compression fitting.
•
Remove the cap and filter screen for cleaning.
THUMBSCREW
REMOVE ICE
THICKNESS PROBE
THUMBSCREW
DISTRIBUTION
TUBE
TAB
KEYWAY
FLOAT VALVE
BRACKET
COMPRESSION
FITTING
CAP AND
FILTER SCREEN
SHUT-OFF VALVE
SPLASH SHIELD
FLOAT
