Setting up the surround controller

29

Rear panel

Connecting the surround controller

Audio connections

The following table gives details of the six audio inputs:

Use this input

To connect to this

A1

A turntable pickup with optional MM/

MC module, or Tape1 input.

A2 to A6

Other audio sources.

The following table gives details of the audio outputs:

Use this output

To connect to this

Main-L, Main-R, Centre, Power amplifiers or active
Sub, Surr-L, Surr-R

loudspeakers.

Tape Out

Tape recorder or two-room outputs.

The audio inputs and outputs should be connected using high-

quality screened cable, taking care to connect the left and right

channels correctly.

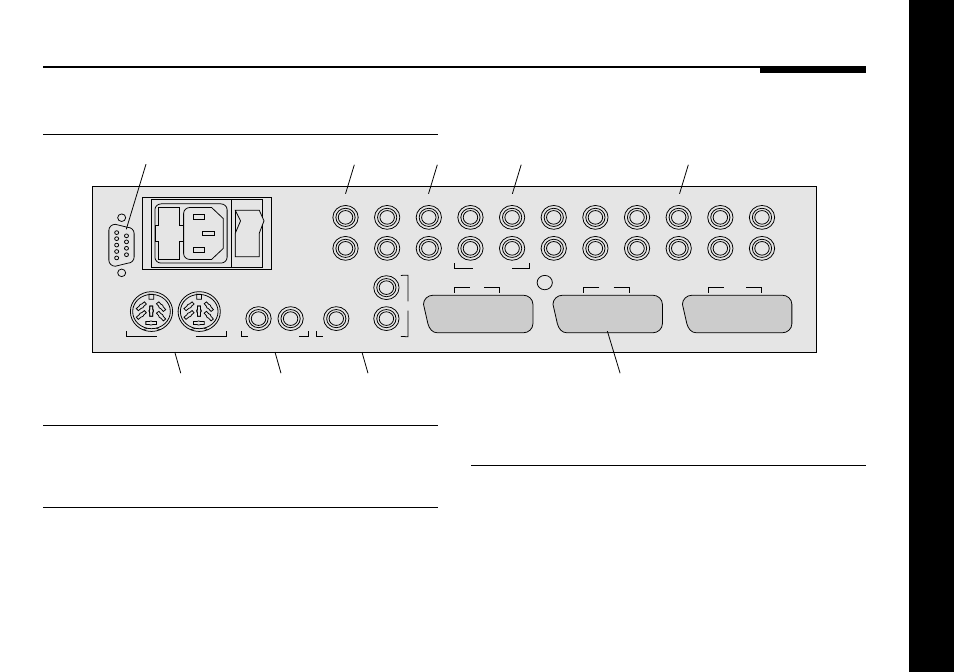

OFF
