Modine Manufacturing 6-558.6 - Manual (Page 20)

Mounting 30°
Height to Downward
Bottom Deflector
of Heater Hood Propeller Models ➀ (See Figures A and B)
Model PSH 130 PSH 150 PSH 170 PSH 225 PSH 280 PSH 340
X Y Z X Y Z X Y Z X Y Z X Y Z X Y Z
8' 21 44 60 19 39 53 17 37 50 26 53 73 21 43 59 22 46 62
10' 20 43 59 17 38 52 16 35 48 25 53 72 20 42 58 21 56 61
12' 19 42 58 16 37 50 15 34 46 24 52 70 18 41 56 10 43 59
14' 18 41 56 15 35 48 13 32 44 23 50 69 17 39 65 18 42 57
16' 16 38 53 13 32 44 11 28 39 21 49 67 15 37 51 17 40 55
18' 14 36 50 10 28 39 7 20 29 20 47 64 14 34 47 15 37 52
20' 21 31 44 8 23 33 — 18 44 61 11 29 41 13 33 47
22' 8 24 35 — — 16 41 58 8 23 34 8 24 36
Mounting 60°
Height to Downward
Bottom Deflector
of Heater Hood Propeller Models ➀ (See Figures A and B)
Model PSH 130 PSH 150 PSH 170 PSH 225 PSH 280 PSH 340
X Y Z X Y Z X Y Z X Y Z X Y Z X Y Z
8' 0 47 65 0 42 57 0 39 54 0 57 78 0 46 63 0 49 66
10' 0 46 63 0 40 55 0 37 50 0 56 76 0 44 61 0 47 64
12' 0 44 60 0 38 52 0 34 47 0 54 74 0 43 58 0 45 62
14' 0 42 57 0 35 48 0 31 43 0 52 72 0 40 55 0 43 59
16' 0 39 53 0 31 43 0 27 37 0 50 69 0 37 51 0 40 55
18' 0 35 48 0 25 35 0 17 23 0 47 65 0 33 45 0 36 50
20' 0 29 40 0 19 27 — 0 44 60 0 26 36 0 31 43
22' 0 16 23 — — 0 39 54 0 19 26 0 21 29
Mounting 90°
Height to Downward
Bottom Deflector
of Heater Hood Propeller Models ➀ (See Figures C and D)
Model PSH 130 PSH 150 PSH 170 PSH 225 PSH 280 PSH 340
S S S S S S
8' 56 50 46 77 59 65
10' 50 45 41 69 53 59
12' 46 41 37 63 48 53
14' 43 38 35 58 45 50
16' 40 35 32 54 42 46
18' 38 33 31 51 40 44
20' 36 32 29 49 38 42
22' 34 30 28 46 36 40
24' 45 34 38

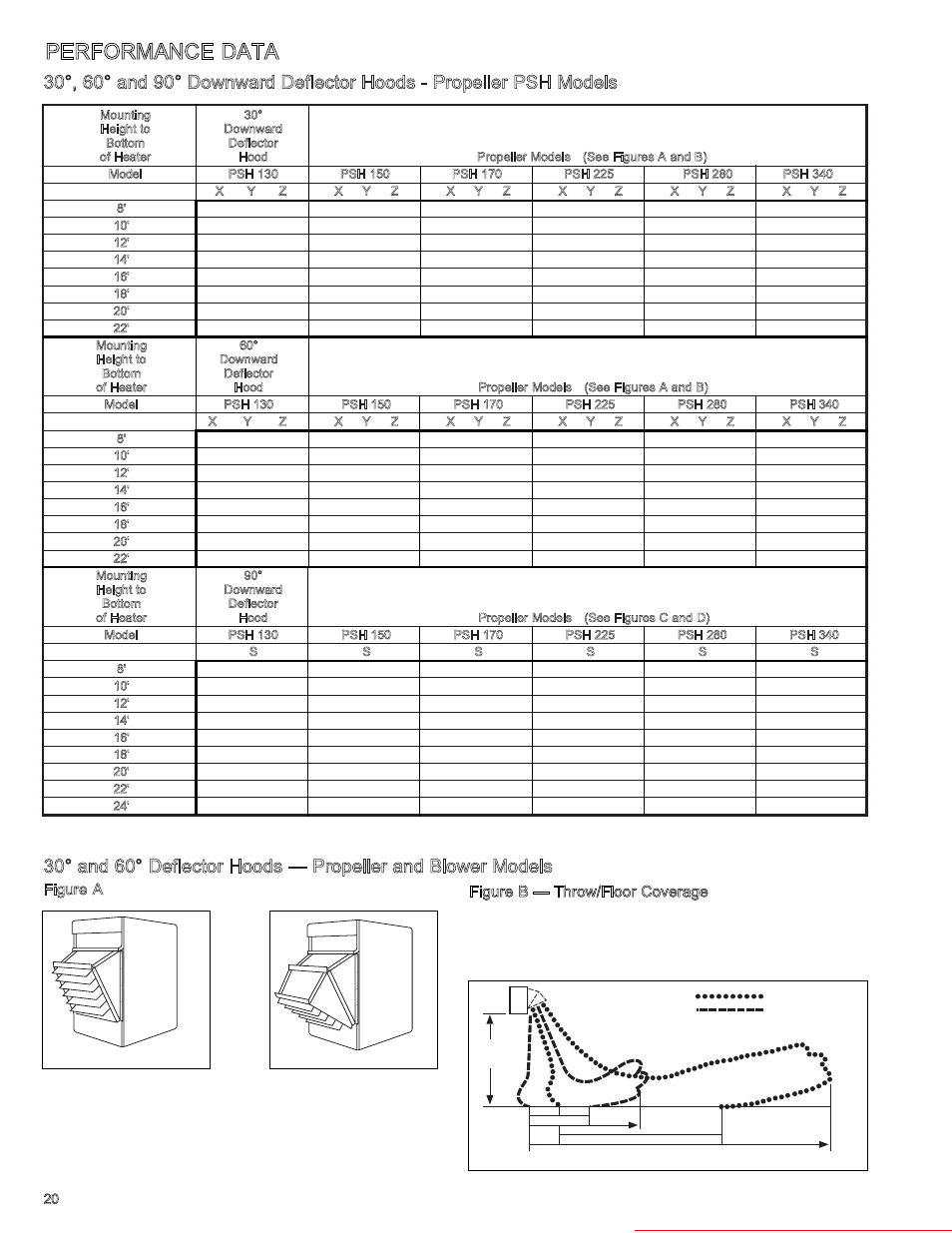

30°, 60° and 90° Downward Deflector Hoods - Propeller PSH Models
➀ Data based on units fired at full input rate and with an entering air temperature of 80° F.
30° and 60° Deflector Hoods — Propeller and Blower Models
Figure A
30° Hood 60° Hood
Figure B — Throw/Floor Coverage
Note:
O-X = Feet from heater to start of floor coverage.
O-Y = Feet to end of floor coverage.
O-Z = Feet to end of throw.
MOUNTING
HEIGHT
X
Y
Y
Z
Z
X
60 NOZZLE
30 NOZZLE
60
30
30 DOWNTURN NOZZLE
60 DOWNTURN NOZZLE
20
PERFORMANCE DATA
