1-6

C168P User’s Manual

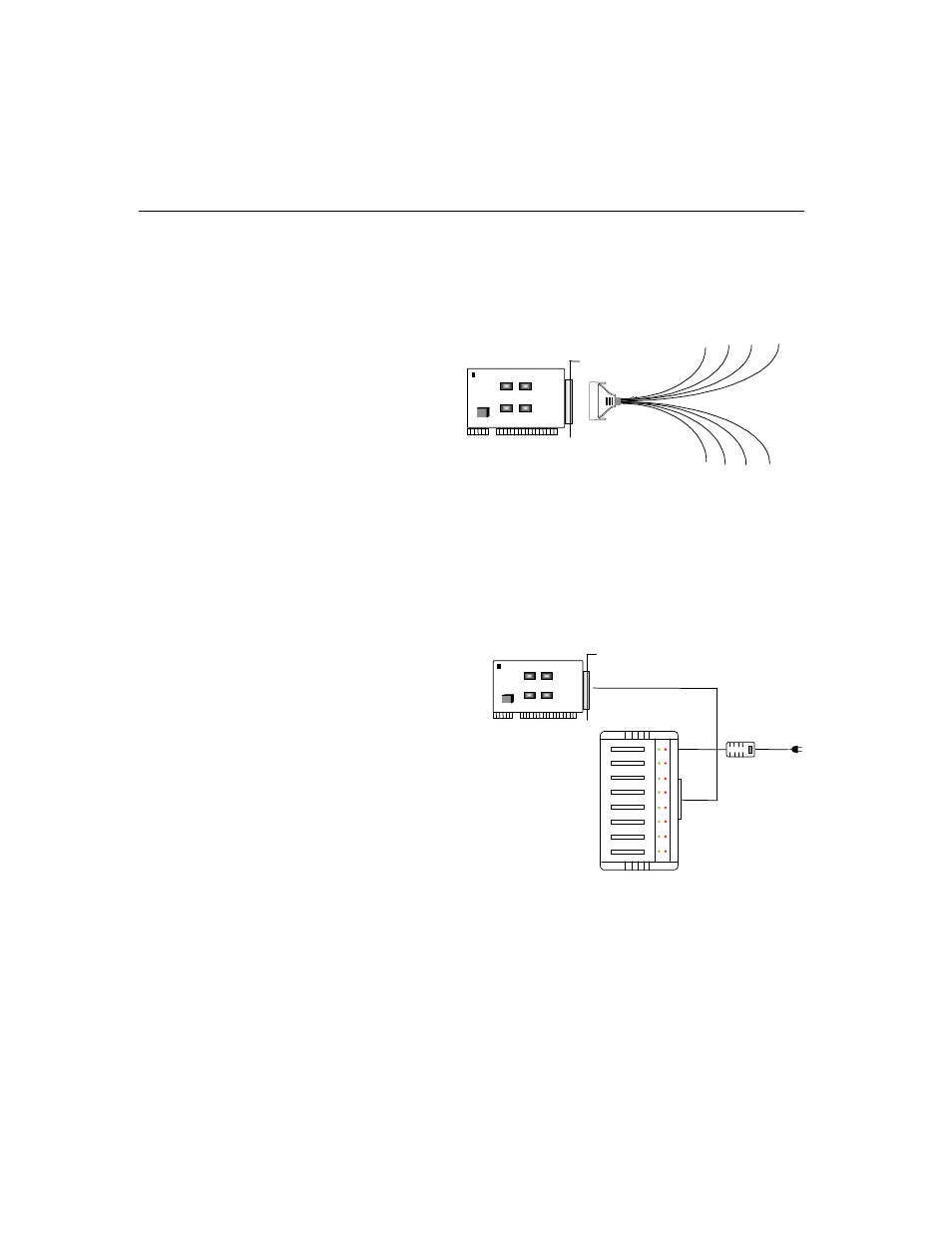

Opt8C/Opt8D

v

RS-232 octopus cable with 8 port male connectors, DB25 for Opt8C and DB9
for Opt8D (1 meter long).

P1P2 P3 P4

P6

P5

P7 P8

Opt8C/Opt8D

C168P

Opt8F/Opt8Z

v

RS-422 connection box with 8 port female DB25 connectors (isolation
protection for Opt8F).

v

1.5 meter DB62 to DB62 cable.

v

110V or 220V adapter.

1

2

3

4

5

6

7

8

Tx

Rx

Opt8F/Opt8Z

C168 P
