22
Electrical Connection
The oven is designed to be connected to 230 V
(50 Hz) electricity supply.

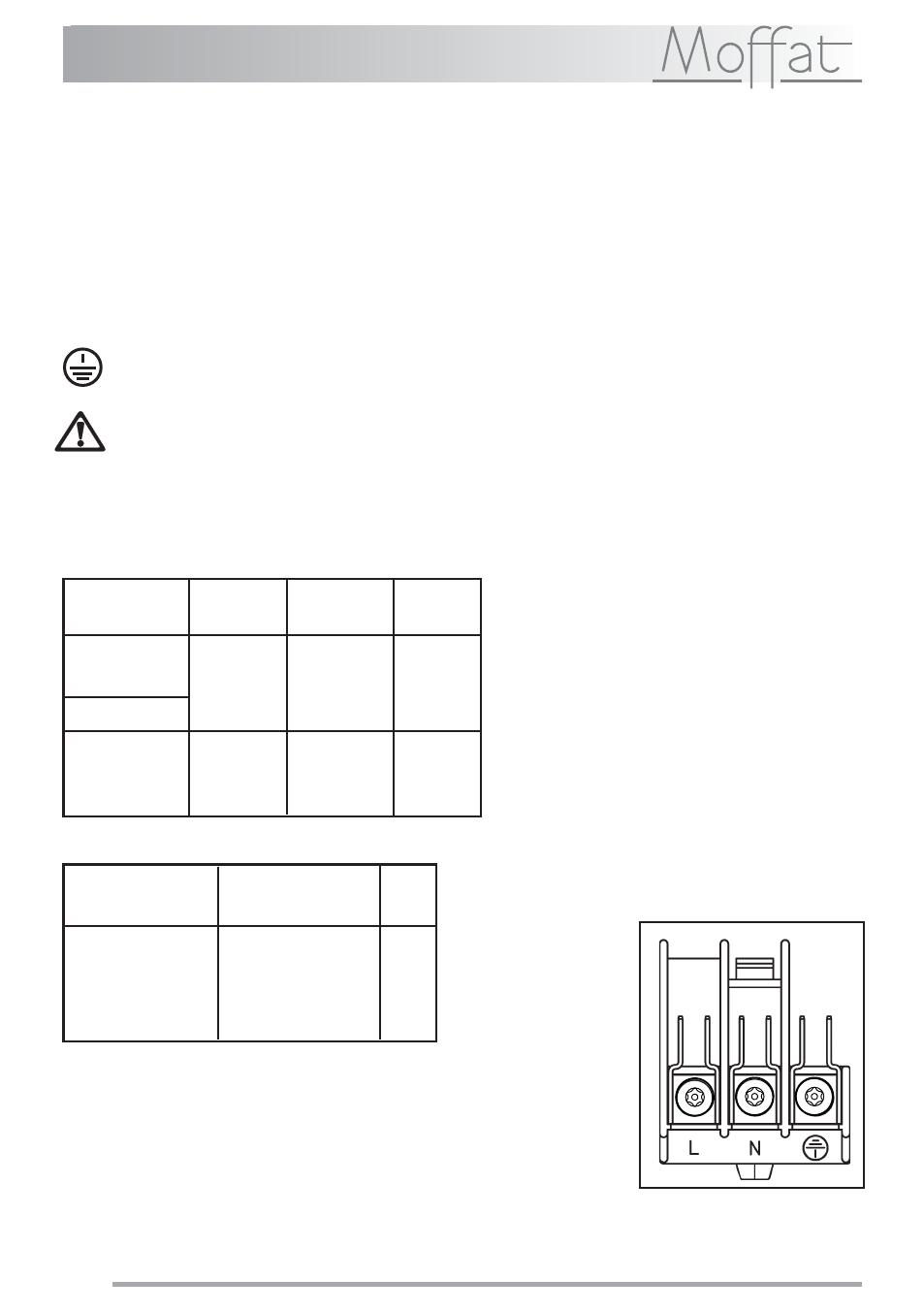

The oven has an easily accessible terminal
block which is marked as follows:
Letter L
- Live terminal
Letter N - Neutral terminal
or E - Earth terminal
THIS OVEN MUST BE EARTHED
The cable used to connect the oven to the
electrical supply must comply to the
specifications given below.
It is necessary that you install a double
pole switch between the oven and the
electricity supply (mains), with a
minimum gap of 3mm between the switch
contacts and of a type suitable for the
required load in compliance with the
current rules.
The switch must not break the yellow and
green earth cable at any point.
the yellow and green earth cable should
be 2-3 cm longer than the other cables.
Important
After installation and connecting, the
cable must be placed so that it cannot at
any point reach a temperature of more
than 50°C above the ambient tempera-
ture.
Before the oven is connected, check that
the main fuse and the domestic
installation can support the load and that
the power supply is properly earthed.
The manufacturer declines any
responsibility should these safety
measures not be carried out.
For Europe use only
Min. size Cable/ Cable / flex type Fuse
flex
2.5 mm 2 H07 RN-F, H05 RN-F, 15 A
H05 RR-F, H05 VV-F,
H05 V2V2-F (T90),
H05 BB-F
Connection Min. size Cable / flex Fuse
via Cable/flex type
13 A socket 2.5 mm 2 3 core 13 A min.
outlet butyl
13 A spur box
insulated
Oven 2.5 mm 2 PVC/PVC
15 A min.
Control twin and
Circuit earth
20 A max.
For UK use only
