GIGABYTE GN-BR404W - Manual (Page 70)

3-4-3. Routing Table

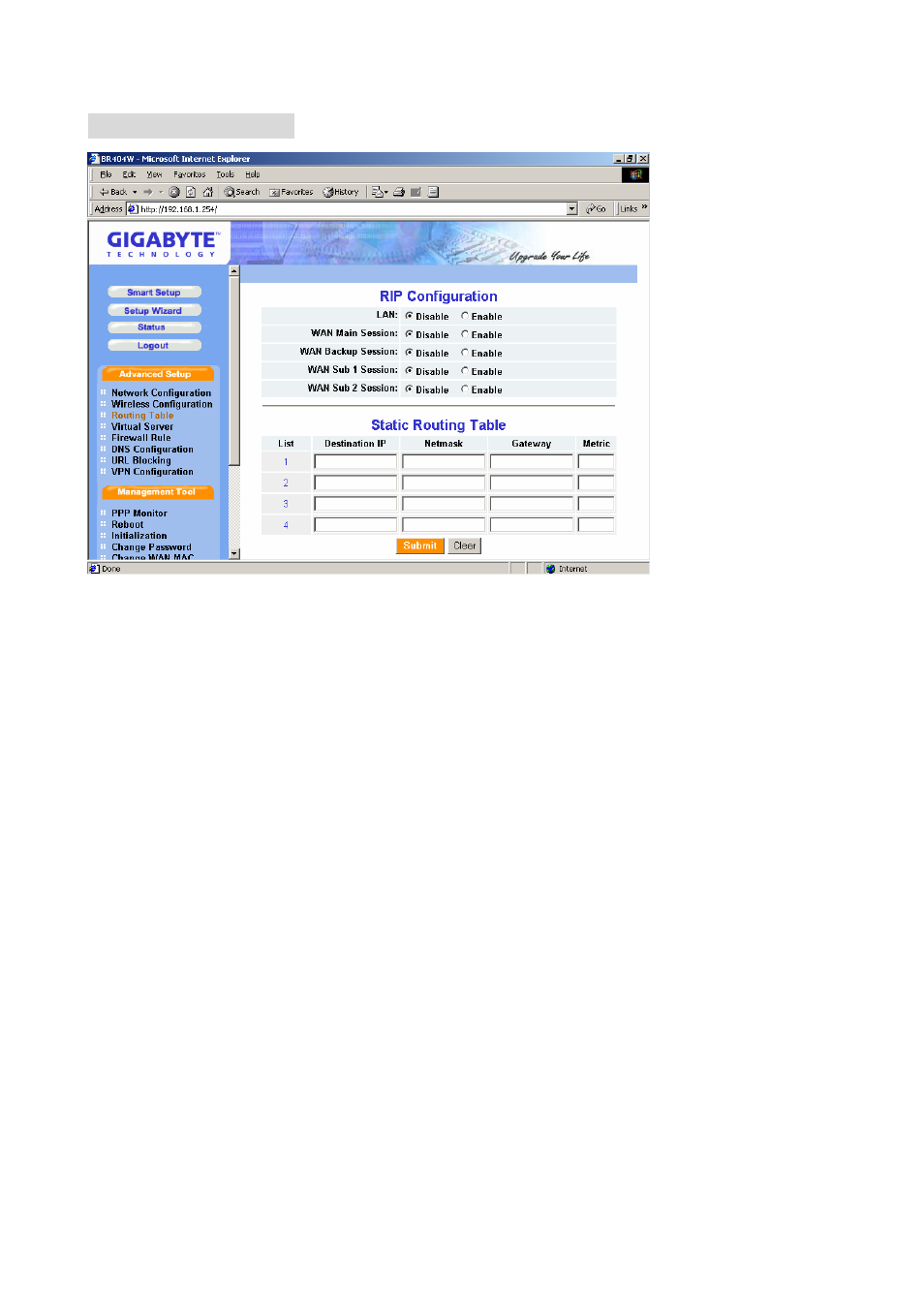

RIP Configuration
RIP(Routing Information Protocol) is a dynamic internetwork routing protocol primary
used in interior routing environments. A dynamic routing protocol, as opposed to a
static routing protocol, automatically discovers routes and builds routing tables.
Static Routing Table
Under some of Internet environments, some of the subnet do not go through the
default gateway. Users can add those routing information to Static Routing Table
themselves.
• Destination IP
The Destination IP address is the address of the network or host to which the
static route is assigned.
• Netmask
The Netmask determines which portion of a destination LAN IP address is the
network portion, and which portion is the host portion.
65
