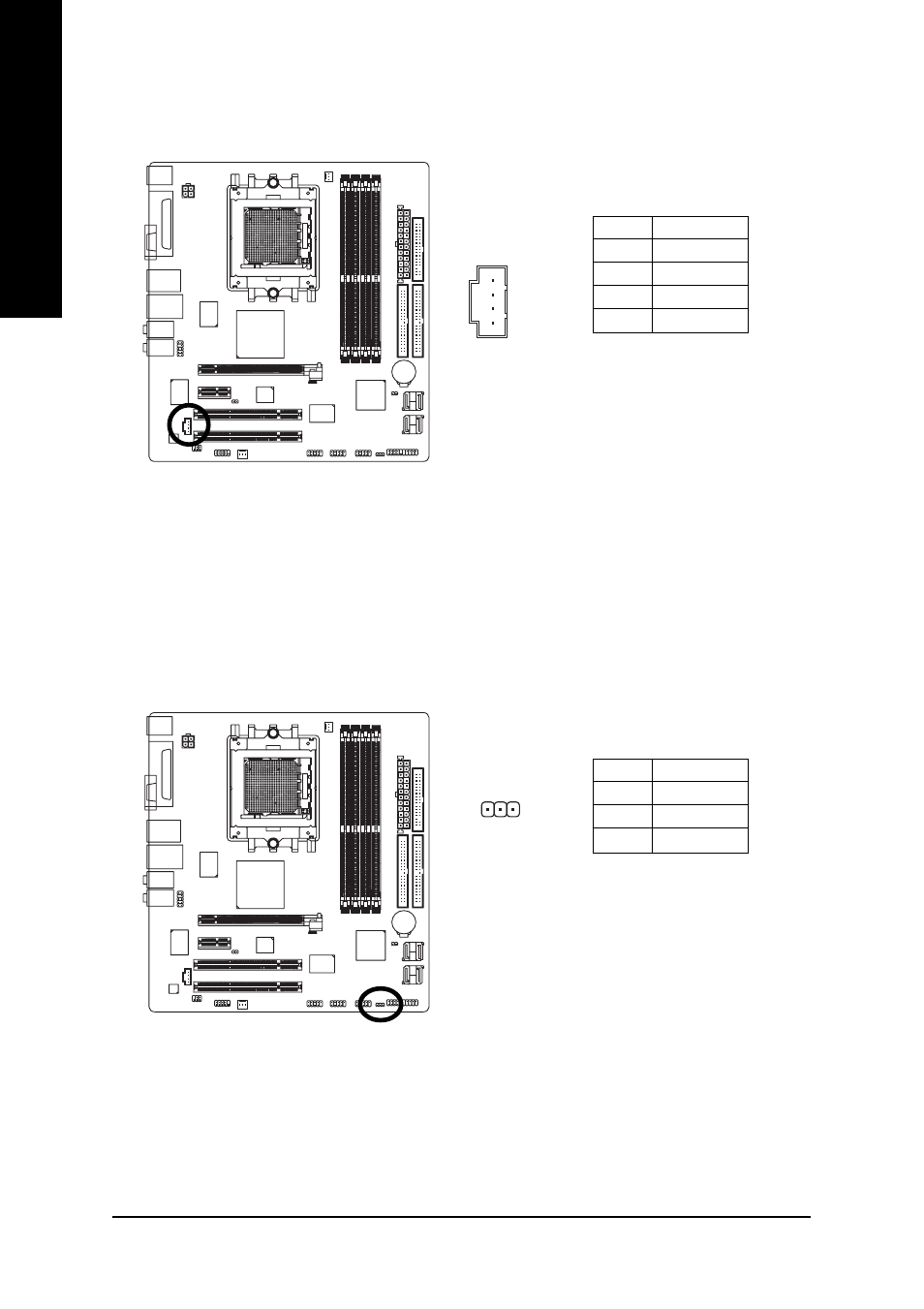

10) CD_IN (CD In Connector)
Connect CD-ROM or DVD-ROM audio out to the connector.
Pin No.
Definition
1
CD-L
2
GND
3
GND
4
CD-R
11) PWR_LED
PWR_LED is connect with the system power indicator to indicate whether the system is on/off. It will
blink when the system enters suspend mode.
1
1
Pin No.
Definition
1
MPD+
2
MPD-
3
MPD-
