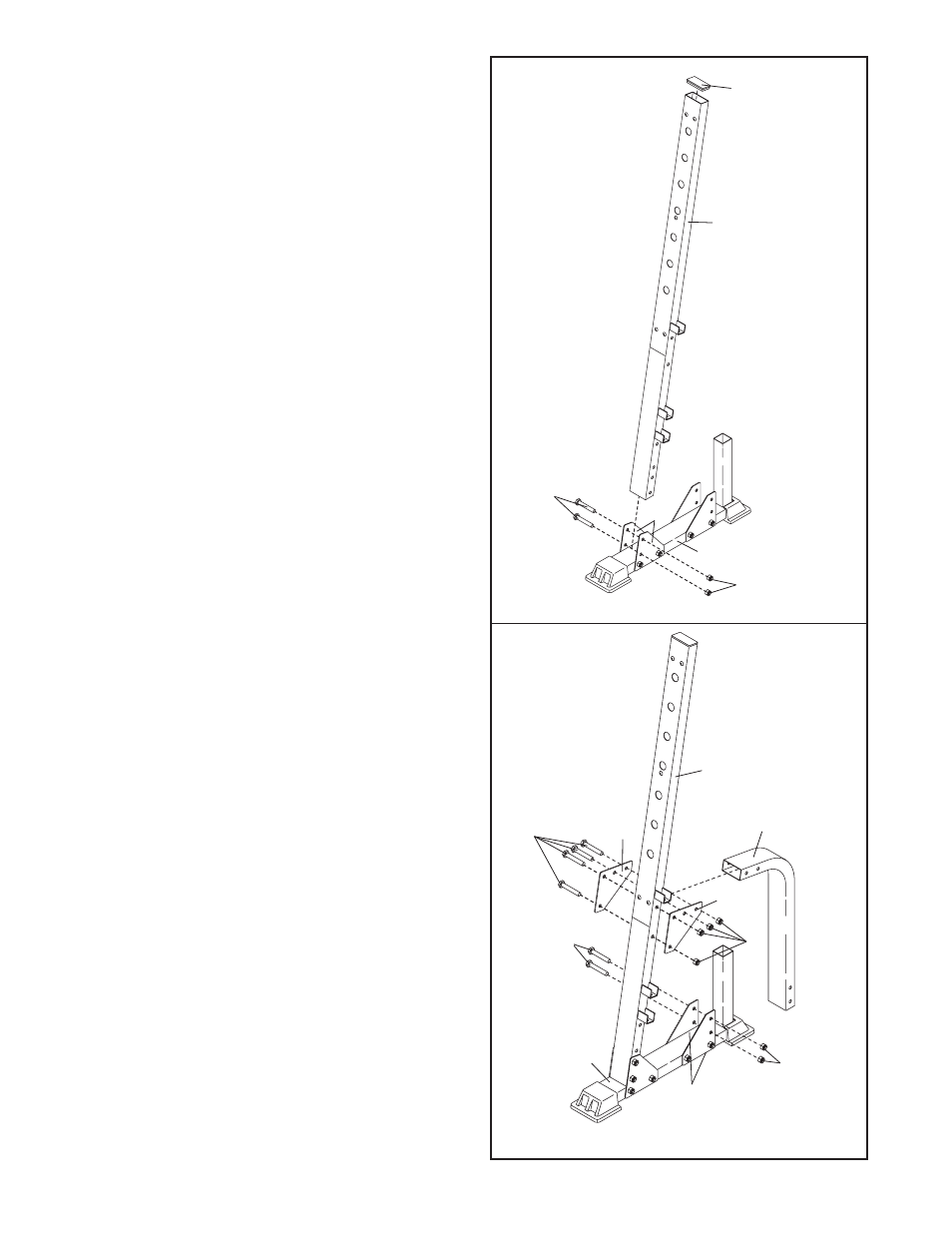

5. Press a 38mm x 75mm Inner Cap (37) into the
top of the Right Upright (4).
Attach the Right Upright (4) to the Right Stabilizer
(2) with the Front Support Plates (29), two M8 x
90mm Bolts (48), and two M8 Nylon Locknuts
(64). Do not tighten the Locknuts yet.
6. Attach the Right Rear Support (7) to the Rear
Support Plates (30) on the Right Stabilizer (2)
with two M8 x 90mm Bolts (48), and two M8
Nylon Locknuts (64). Do not tighten the
Locknuts yet.
Attach the Right Rear Support (7) to the Right
Upright (4) with two Rear Support Plates (30),
four M8 x 90mm Bolts (48), and four M8 Nylon
Locknuts (64). Do not tighten the Locknuts yet.
