Dimensions and Installation Information

For answers to your Monogram,

®

GE Profile

or

GE

®

appliance questions, visit our website at

ge.com or call GE Answer Center

®

service,

800.626.2000.

JGP328WEK/CEK/BEK

GE

®

30" Built-In Gas Cooktop

Dimension and installation information are shown in inches.

Specification Created 11/04

330323

Gas Connection

Electrical

cord

45

°

Electrical

outlet

Shut-off

valve

Pressure

regulator

1/2" pipe

Coupling

AGA Requirement: All gas cooktop models require
7/16" free area below cooktop height to combustible
material. Requires 18" minimum from countertop to
adjacent overhead cabinets.
Note: If installing with a GE Profile

TM

Telescopic

Downdraft System, consult both cooktop and
downdraft installation instructions packed with
product before installing. Cooktop gas/electric
supply may need to be re-routed to install
downdraft.
Electrical Rating: 120V, 60Hz, 5A
Installation With Single Wall Oven Information:
30" Gas Cooktops are approved for use over select
GE 27" and 30" Wall Ovens and Warming Drawers.
30" and 36" Gas cooktops are approved for use
over 30" Wall Ovens and Warming Drawers.
Refer to cooktop and wall oven/warming drawer
installation instructions packed with product for
current dimensional data.
Installation Information: Before installing, consult
installation instructions, packed with product, for
current dimensional data.

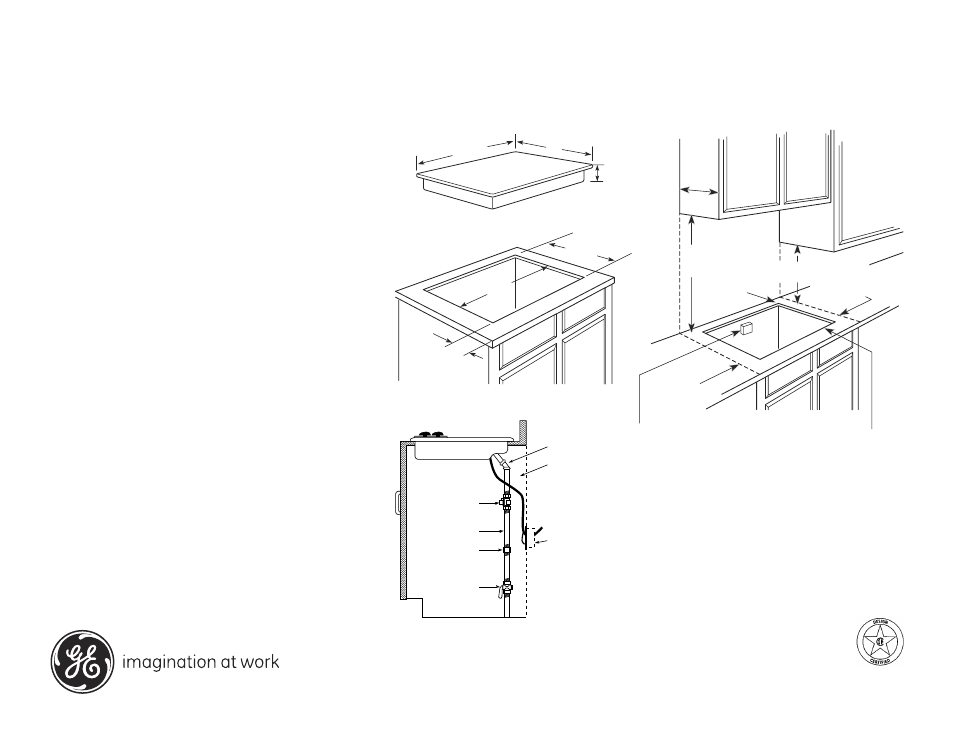

Cooktop

2-1/2

(Min.)

28-1/2

19-5/8

3-3/16

30

21

Electrical junction

box 12" MIN.

below countertop

30" MIN. to

unprotected

cabinet

Cut should

not interfere

with cabinet

structure at

front

3-3/4" MIN.

clearance to

side wall

from cut-out

6" MIN.

clearance to

side wall

from cut-out

18" MIN.

to cabinet

2-1/4" to

rear wall

13" MAX.

depth
