9. Make sure that all parts are properly tightened before you use the weight bench. The use of the remaining
parts will be explained in ADJUSTMENT on page 10.
7
2
9
15
7
1
12
12

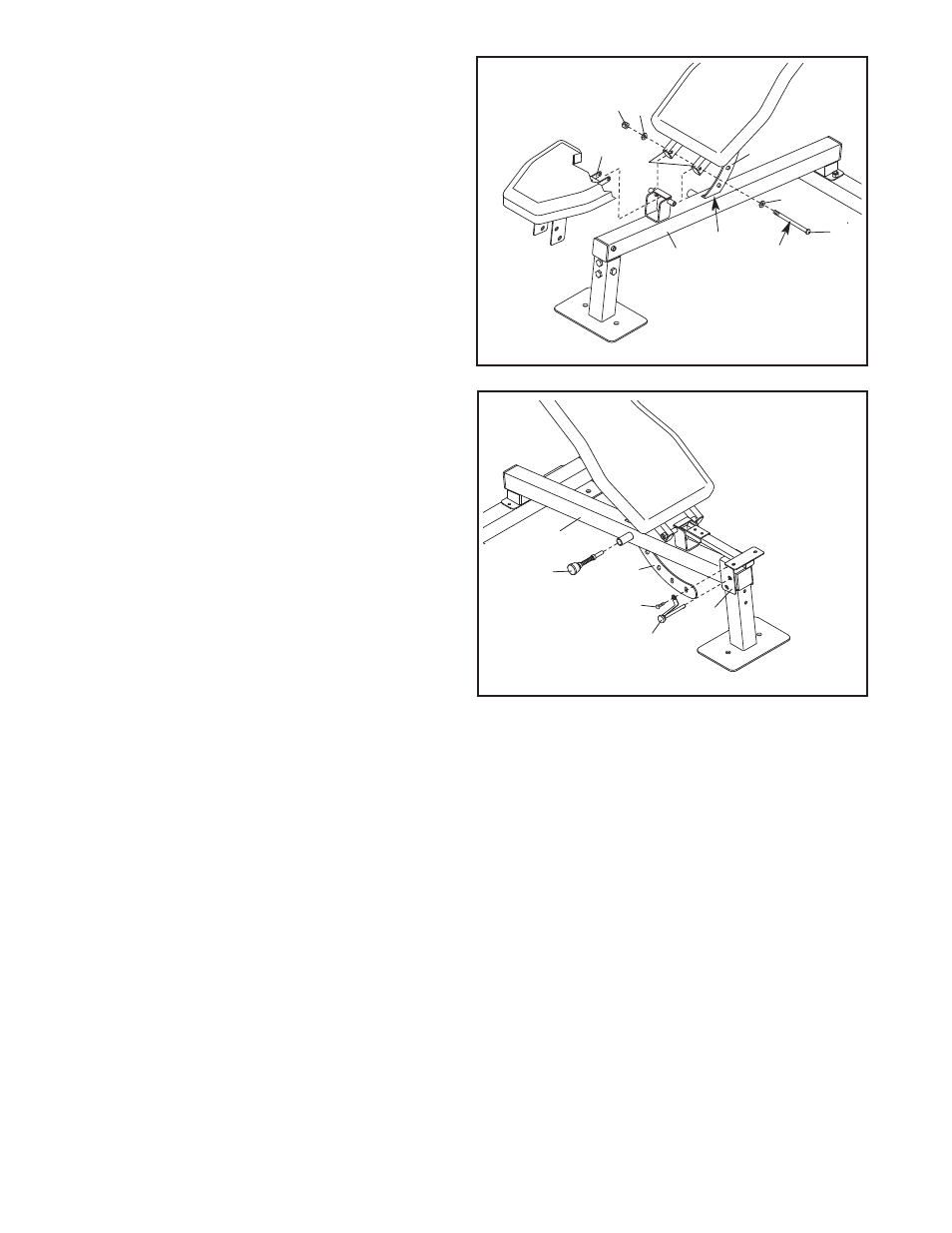

7. Insert the Backrest Bracket (8) into the indicated
slot in the Frame (1). Next, grease an M10 x
180mm Bolt (23). Attach the Backrest Tubes (9)
and the Seat Carriage (7) to the Frame (1) with
the Bolt, two M10 Washers (12), and an M10
Nylon Locknut (2).
Do not overtighten the
Nylon Locknut; the Backrest Tubes and the
Seat Carriage must pivot easily.
See step 4. Tighten the M8 Nylon Locknuts
(29).
See step 5. Tighten the M6 x 55mm Screws
(24).
Grease
Slot
8. Note: For clarity, the seat is not shown in this
step.
Tighten the Adjustment Knob (15) into the
Frame (1);
make sure that the Adjustment
Knob is engaged in a hole in the Backrest
Bracket (8).
Attach the Seat Pin (14) to the Seat Frame (6)
with an M4 x 15mm Screw (20). Then, insert the
Seat Pin into a hole in the Seat Frame and the
Frame (1).
20
1
14
6
8
8
23
