2-8
Leading in cables to the display unit
The cable clamp may be positioned within the display unit (default arrangement),
outside the display unit or at the bottom of the display unit (when using console
mount, for example). When the cable clamp is located outside or beneath the dis-
play unit, use the bottom clamp front plate and bottom clamp rear plate (supplied
with installation materials).
Also, use the shielding foam (supplied) to protect the noise radiation.
Cable fed from rear of display unit (Default)
Panhead screw
M4X8
Hex bolt
M5X12 SUS 2pcs
Hex bolt
M5X35 SUS 2pcs
Hex bolt
M5X35 SUS 2pcs
(A) Rear clamp base
(B) Power clamp
(Aluminum)
(C) Signal clamp
(Aluminum)
(D) Rear clamp plate
(B) Power clump
(Aluminum)
(C) Signal cable
(Aluminum)
(D) Rear clamp plate
(A) Rear clamp base
Cable position in clamp
(Display unit, rear view)
PWR
SCAN
Log
Keyboard
Navigation
Nav equipment
(Gyrocompass)
Slave display
External CRT
Rear cable entrance
Cable
Shielding foam
(Display unit, right-hand side view)
(Display unit, rear view)
(Construction of
cable clamp)
Make sure foam contacts rear chassis.
Rubber plug
* When no log or nav
equipment is installed,
insert rubber plug
(supplied) to the left of
keyboard cable to hold the
cable in place.

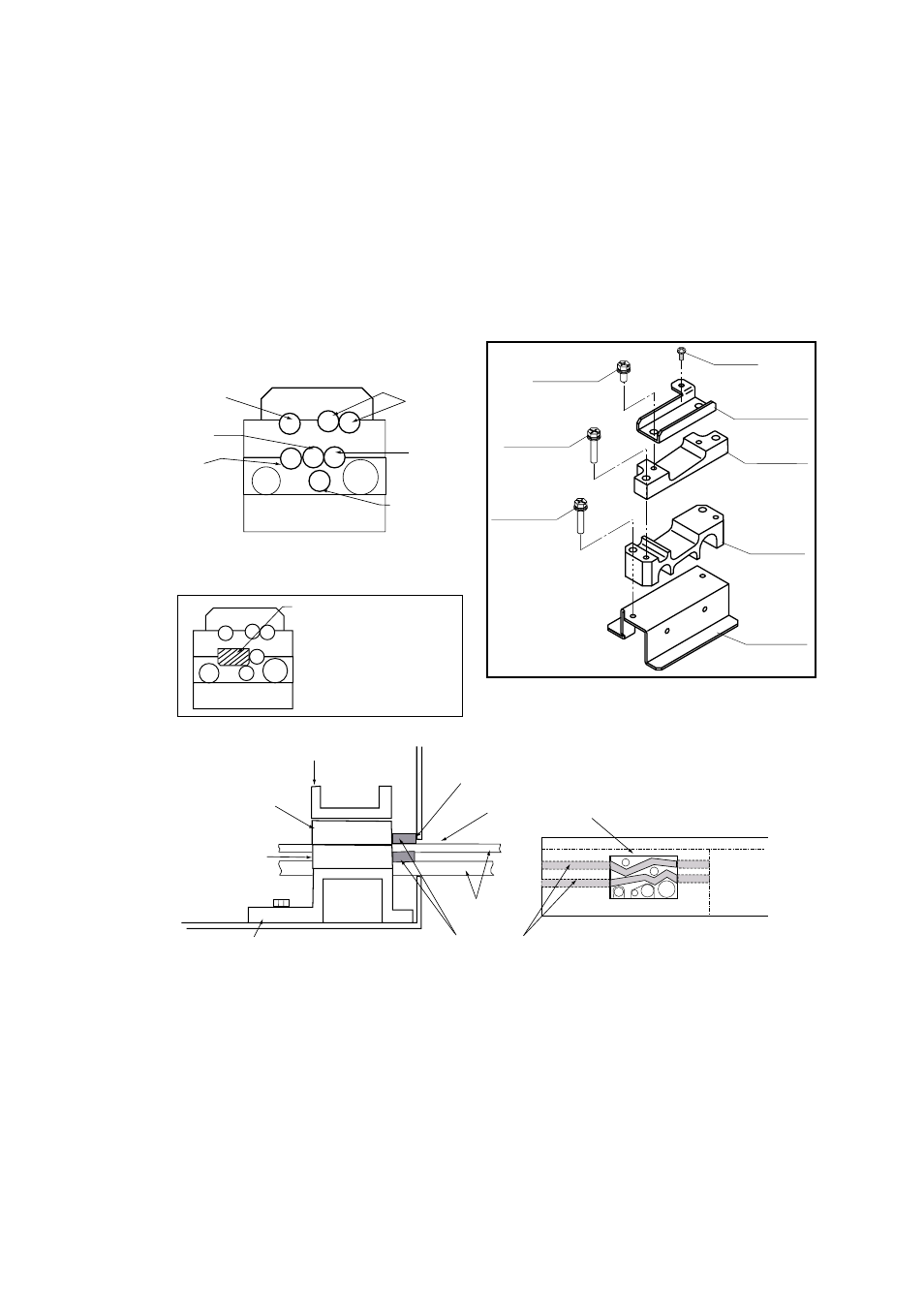

Figure 2-12 Default cable clamp position
• Place shielding foam between cables, and then attach foam to aluminum clamps.
• Fill unused clamp holes with shielding foam.
