34 Gas Fireplaces
Tested and Listed by OMNI-Test Laboratories Inc. to ANSI Z21.88b-2001 “Vented Gas-Fired Direct Fireplace Heater." Must be installed
in accordance with all local codes, if any: if not, follow ANSI Z223.1 and the requirements listed in the Owner's Manual.
Heating Capacity*
BTU Input High/Output Low (NG)*
BTU Input High/Output Low (LP)*
Overall Efficiency* (maximum venting)
AFUE*
Up to 950 Sq. Ft.
20,500 (high) 5,100 (low)
20,500 (high) 4,200 (low)
76.5% (NG) 74.2% (LP)
64% (NG) 66% (LP)
A= To Mantel
B= To Top Facing
C= To Sidewall
Height (including standoffs)
Width
Depth
Flue Diameter
Unit Weight
Burner System
Glass Area
Powerful Fan
Power Duct Option
33 1 ⁄
4
"
36 1 ⁄
4
"
16 1 ⁄
4
" (Includes 1 ⁄
2
" clearance)
8"
155 lbs.
2 Stage Pan Burner
30 1 ⁄ 2 ” W x 18 1 ⁄ 2 " H = 564 sq. in.
YES - 180 CFM (Optional)
NO
A = 38 1 ⁄
2
"*
B = 0"
C = 1"
D = 0"
E = None Required
F = None Required
*0 to 12" maximum mantel depth.
See Owner's manual for details
D= To Side Facing
E= Front Hearth
F= Hearth Width

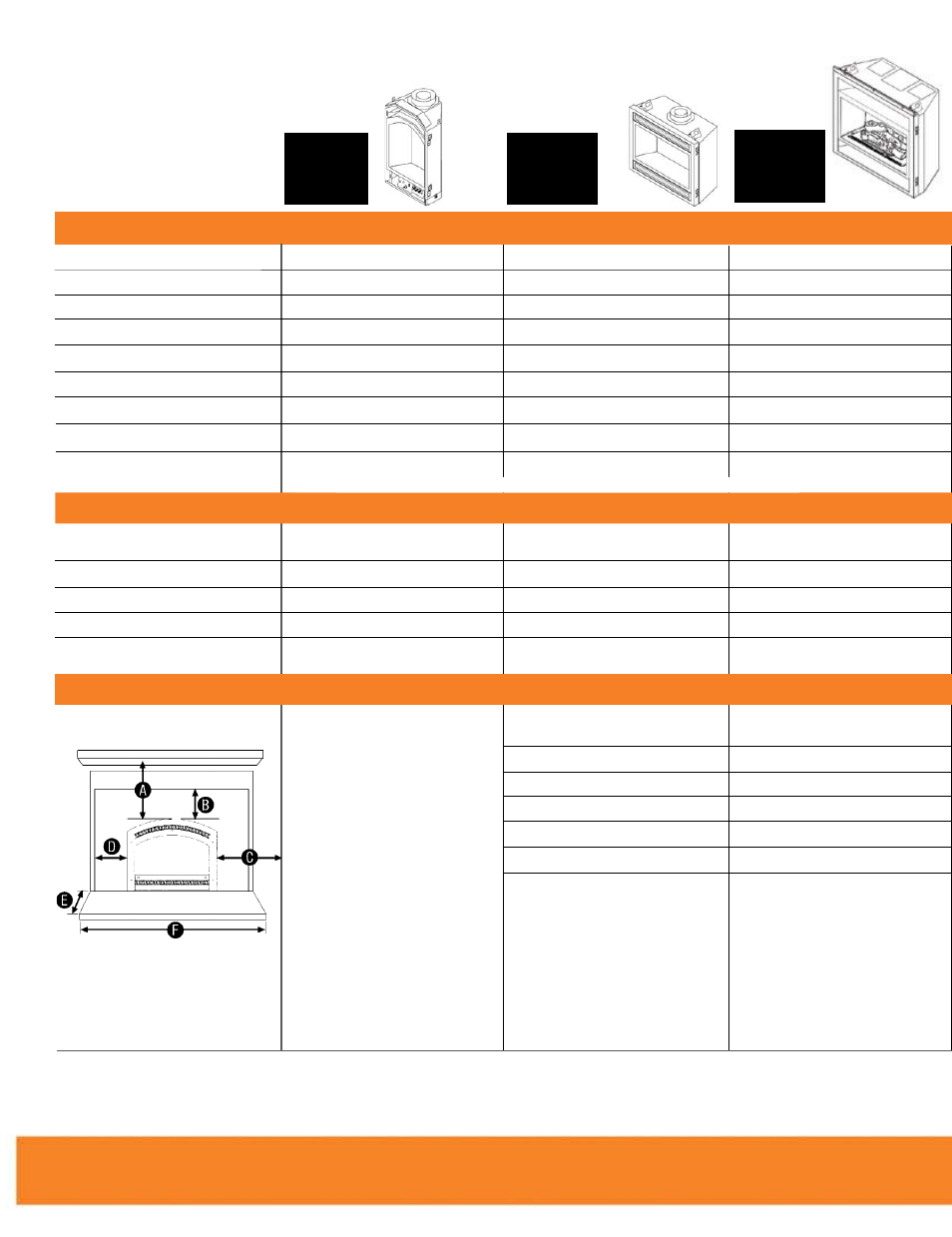

CO M BUSTIBLE CLEA RA NCES
S P E C IF IC A T IO N S
PERFO RM A NCE*
TESTING & INSTA LLATIO N INFO RM ATIO N
All Measurements taken from
fireplace face.
Fireplaces
The dimensions and clearances on this
page are for reference only!
Refer to the Owner’s Manual prior to
installation
(will vary slightly with face plate design)
35 7 ⁄
8
"
20 1 ⁄
8
" Front
15"
8"
86 lbs.
Ember-Fyre™*
16" W x 20 1/2" H = 303 sq. in.
YES - 90 CFM (Optional)
NO
Up to 650 Sq. Ft.
16,500 (high) 10,500 (low)
16,500 (high) 9,380 (low)
82.2% (NG) 79.5% (LP)
63% (NG) 63% (LP)
The Bed & Breakfast fireplace
requires a 1" minimum clearance
from face to sidewall. Combus-
tibles can be installed up to the
standoffs on the unit. If a mantel
is used please see Owner's
Manual for minimum clearances.
The height of the Bed & Breakfast
fireplace enclosure must be a
minimum of 48" above the base
of the fireplace.
If placed on a raised hearth,
the ceiling above the Bed &
Breakfast must be at least 57"
measured from the base of the
fireplace.
38 3 ⁄
8
"
41"
19 3 ⁄
4
" (Includes 1 ⁄
2
" clearance)
8" ( Top vent can be reduced to 6 5
⁄8
")
205 lbs.
2 Stage Tube Burner
36" W x 24" H = 864 sq. in.
YES - 180 CFM (Optional)
YES (One Only )
Up to 1,400 Sq. Ft.
80% (NG) 81% (LP)
68.3% (NG) 69.8% (LP)
31,000 - 6,700
31,000 - 5,200
A = 40 3/4" to 48 3/4"*
B = 0"
C = 1"
D = 0"
E = None Required
F = None Required
*Will vary depending mantel depth.
0 to 12" maximum mantel depth.
See Owner's manual for details
Note: Each face plate design varies
in dimension slightly.
(measured from base of fireplace) (measured from base of fireplace)
864 TRV
864
TRV
564 Space Saver
564
SS
21 TRV - Bed & Breakfast
21
TRV
