Thank you for purchasing the Fostex Model COP-1/96k.
The COP-1/96k is a digital signal (sampling frequency: 32kHz~96kHz) conversion adaptor for
converting "Light (OPTICAL) to Coaxial (COAXIAL)" or "Coaxial (COAXIAL) to Light (OPTICAL)."
The COP-1/96k allows you to connect digital equipment with differing digital input and output
connections for digital signal copying*. The COP-1/96k makes it possible to use a DAT recorder
that only has a coaxial digital signal input and output connectors as the master recorder for
use with the Fostex Digital Multitracker.
* Digital copying is not possible if the source material is protected by SCMS.
* Connect the AC adaptor only to a wall outlet that meets the conditions stated in the Specification Chart.
Failure to do so could be extremely dangerous and may result in fire or electric shock.

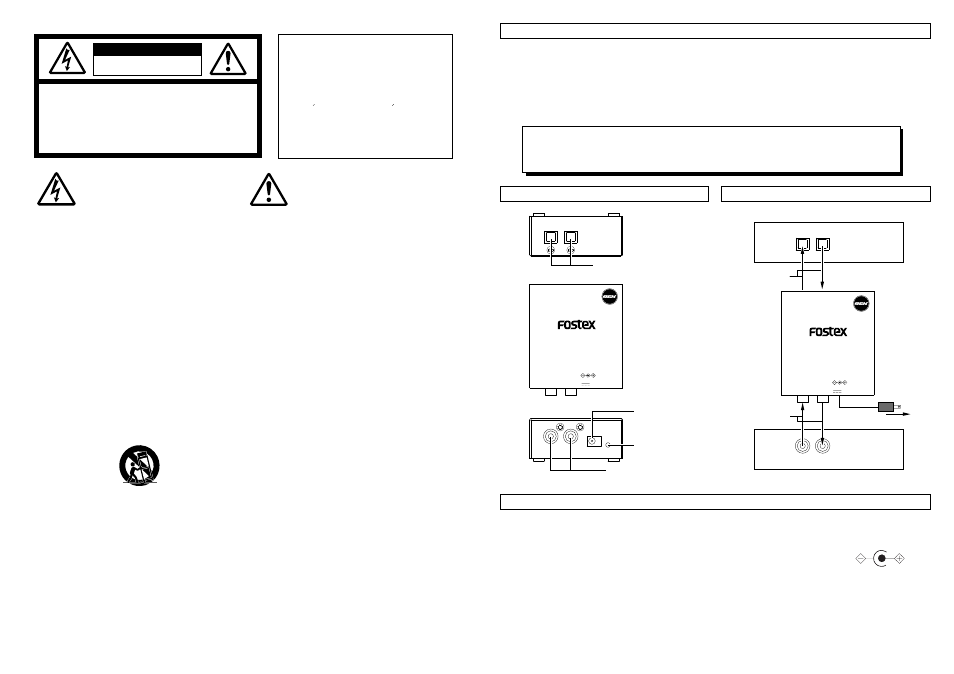

Names and functions of the connectors Connecting example
Product Specifications
AC adaptor power supply : 120VAC, 60Hz
230V~, 50/60Hz
Physical Dimensions (mm) : 70 (W) 32 (H) 83 (D)
Weight : Approx. 300g
(excluding accessories)
Accessories : AC adaptor 1, Owner's Manual
* Product appearance and specifications subject to change without notice.
CAUTION:
TO PREVENT ELECTRIC SHOCK, MATCH WIDE
BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
ATTENTION:
POUR EVITER LES CHOCS ELECTRIQUES,
INTRODUIRE LA LAME LA PLUS LARGE DE LA
FICHE DANS LA BORNE CORRESPONDANTE DE
LA PRISE ET POUSSER JUSQU' AU FOND.
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER - SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
10. Power Sources - The appliance should be connected to a power
supply only of the type described in the operating instructions or
as marked on the appliance.
11. Grounding or Polarization - The precautions that should be taken
so that the grounding or polarization means of an appliance is not
defeated.
12. Power Cord Protection - Power supply cords should be routed so
that they are not likely to be walked on or pinched by items placed
upon or against them, paying particular attention to cords at plugs,
convenience receptacles, and the point where they exit from the
appliance.
13. Cleaning - The appliance should be cleaned only as recommended
by the manufacturer.
14. Nonuse Periods - The power cord of the appliance should be
unplugged from the outlet when left unused for a long period of
time.
15. Object and Liquid Entry - Care should be taken so that objects do
not fall and liquids are not spilled into the enclosure through
openings.
16. Damage Requiring Service - The appliance should be serviced
by qualified service personnel when:
A. The power supply cord or the plug has been damaged;
or
B. Objects have fallen, or liquid has been spilled into the appliance;
or
C. The appliance has been exposed to rain; or
D. The appliance does not appear to operate normally or exhibits
a marked change in performance; or
E. The appliance has been dropped, or the enclosure damaged.
17. Servicing - The user should not attempt to service the appliance
beyond that described in the operating instructions.
All other servicing should be referred to qualified service personnel.
18. The appliance should be situated away from drops of water or
spray of water.
19. Objects containing liquid such as vase must not be put on the
appliance.
20. The appliance is not completely isolated from the power supply
even if the power switch is at off position.
The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated "dangerous voltage" within the
product's enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the
literature accompanying the appliance.
An appliance and cart combination should be moved with care.
Quick stops, excessive force, and uneven surfaces may cause the
appliance and cart combination to overturn.
7. Wall or Ceiling Mounting - The appliance should be mounted to a
wall or ceiling only as recommended by the manufacturer.
8. Ventilation - The appliance should be situated so that its location or
position dose not interfere with its proper ventilation.
For example, the appliance should not be situated on a bed, sofa,
rug, or similar surface that may block the ventilation openings; or,
placed in a built-in installation, such as a bookcase or cabinet that
may impede the flow of air through the ventilation openings.
9. Heat - The appliance should be situated away from heat sources
such as radiators, heat registers, stoves, or other appliances
(including amplifiers) that produce heat.
COAXIAL IN (x1)
Connector : RCA pin jack
Input impedance : 75
Reference input level : 0.5V p-p
COAXIAL OUT (x1)
Connector : RCA pin jack
Output impedance : 75
Reference output level : 0.5V p-p (at connecting a 75
load)
OPTICAL IN (x1)
Connector : Optical connector
Format : IEC 60958 (S/P DIF)
OPTICAL OUT (x1)
Connector : Optical connector
Format : IEC 60958 (S/P DIF)
Complying Sampling Frequency : 32kHz ~ 96kHz
Power Supply : DC9V, 50mA
(Use the exclusive AC adaptor
included with COP-1/96k.)
IN OUT
IN OUT
9V DC IN POWER
COP-1
CONVERTER
OPTICAL
COAXIAL
OPTICAL input/output connectors (Optical)
AC adaptor jack
Power indicating LED
COAXIAL input/output jacks (RCA)
IN OUT
IN OUT
9V DC IN POWER
COP-1
CONVERTER
OPTICAL
COAXIAL
OPTICAL cables
Equipment with only an OPTICAL connectors
OPTICAL
DIGITAL IN DIGITAL OUT
COAXIAL
DIGITAL OUT DIGITAL IN
Equipment with only an COAXIAL jacks
AC outlet
AC adaptor
RCA cables
