6

TheVert-I-Pak was designed for installation in residential and light commercial applications. These instructions detail a
typical method of installation. Figure 4 shows the typical component location and airflow paths through the unit.

Units are available in three return air configurations: front "free-return" with disposable filter; front ducted return with 1"
duct flange; and left side ducted return with 1" duct flange. See Figure 10 on Page 11.

Section III – Installation

Section III – Installation

Section III – Installation

Section III – Installation

Section III – Installation

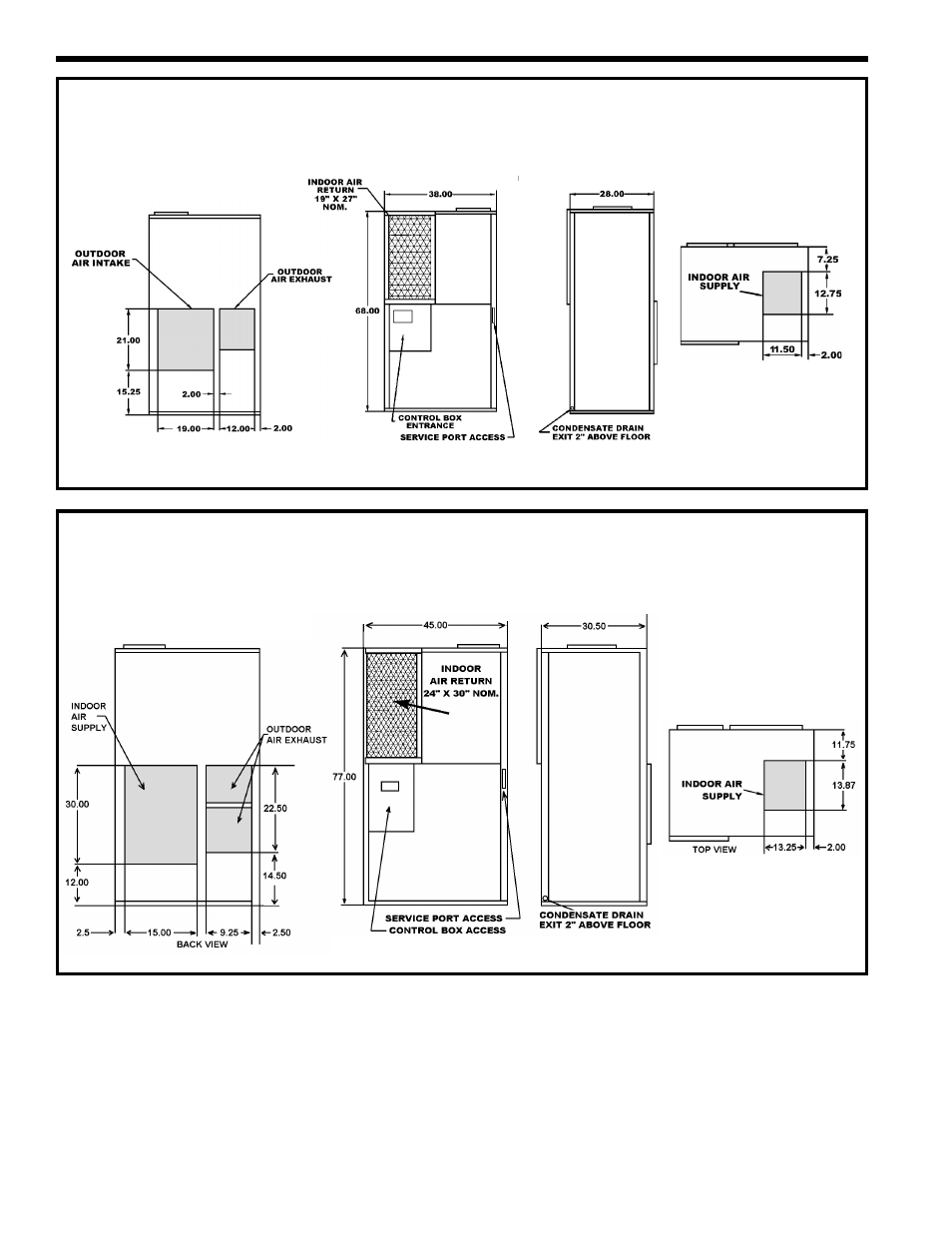

V(E,H)B42, 49 Unit Dimensions (Inches)

Figure 2

V(E,H)B60 Unit Dimensions (Inches)

Figure 3
