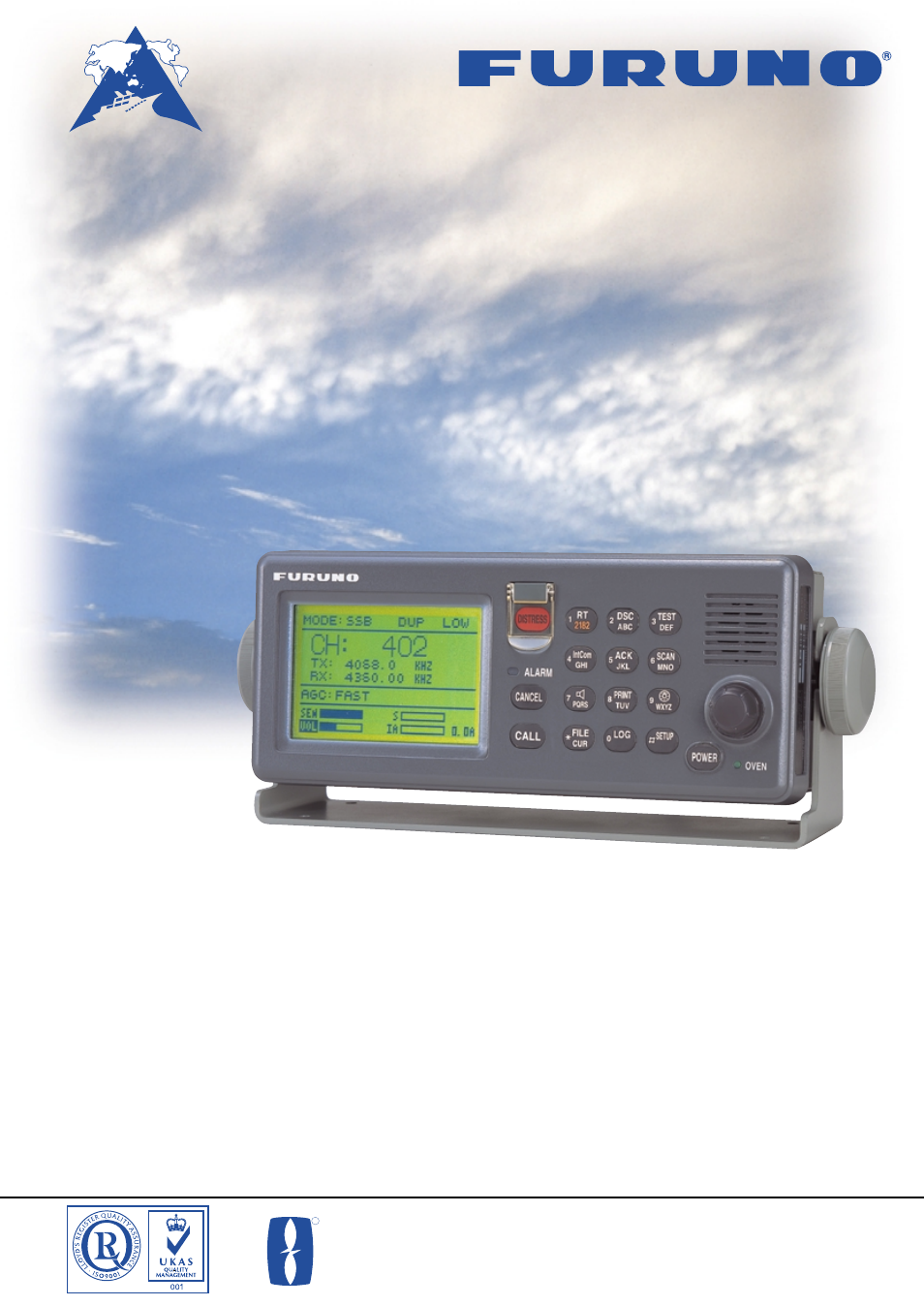

Models FS-1570/2570
Catalogue No. S-023
MF/HF RADIOTELEPHONE
●
Distress, safety and routine
communications
●
Fully meets GMDSS carriage
requirements
● Instant selection of 256 preset channels
●
160-character message on high-legibility
LCD display
● Optional NBDP modem and monitor
●
Easy channel selection with rotary
control or direct keyboard input
●
Scanning of DSC frequencies for distress
and general calls on MF/HF
● File editing for ready transmission of
DSC message
●
GPS position automatically included in a
distress call
(150 W)
FURUNO DEEPSEA WORLD
R
FURUNO ELECTRIC CO., LTD.
The future today with FURUNO's electronics technology
TRADE MARK REGISTERED
MARCA REGISTRADA 9-52 Ashihara-cho, Nishinomiya City, Japan Telephone: +81 (0)798 65 2111
Telefax: +81 (0)798 65 4200, 66-4622 URL: www.furuno.co.jp
Integrated MF/HF Radiotelephone, DSC/Watch Receiver, Telex
The FS-1570 and 2570 are new MF/HF radio-
telephones for general communications and
GMDSS applications. Provided in addition to
radiotelephony operation are DSC (Digital Selective
Call) on general communications and DSC Watch
Receiver on all distress and safety frequencies in
MF and HF bands.
The FS-1570 and 2570 maintain a continuous watch
on a distress call even while you are exchanging
normal voice messages. DSC channels can be
individually set or all selected channels can be
automatically scanned. When a DSC message is
received, the radiotelephone gives audible and
visual alarms.
The FS-1570 and 2570 work on all authorized
transmit frequencies between 1.6 and 27.5 MHz.
Receiver frequencies are selectable between 100
kHz and 30 MHz in 10 Hz steps. The transmit and
receive frequencies can be selected separately or in
pair. The digital frequency synthesizer provides high
frequency stability for DSC and NBDP as well as
telephony operation.
The compact cabinet allows a flexible and space-
saving installation in a communication console.
Optional equipment available are a distress alert
unit, received call unit, remote control unit, distress
message control unit, etc. In addition a telex modem
(NBDP) can be accommodated in the transceiver
unit for general message transfer and distress
message/maritime safety information handling,
satisfying the carriage requirement in GMDSS A3-
A4 sea areas.
(250 W)
