4.3 Replacing the Pad ASSY
4
REPLA
C
EMENT OF CONSUMABLES

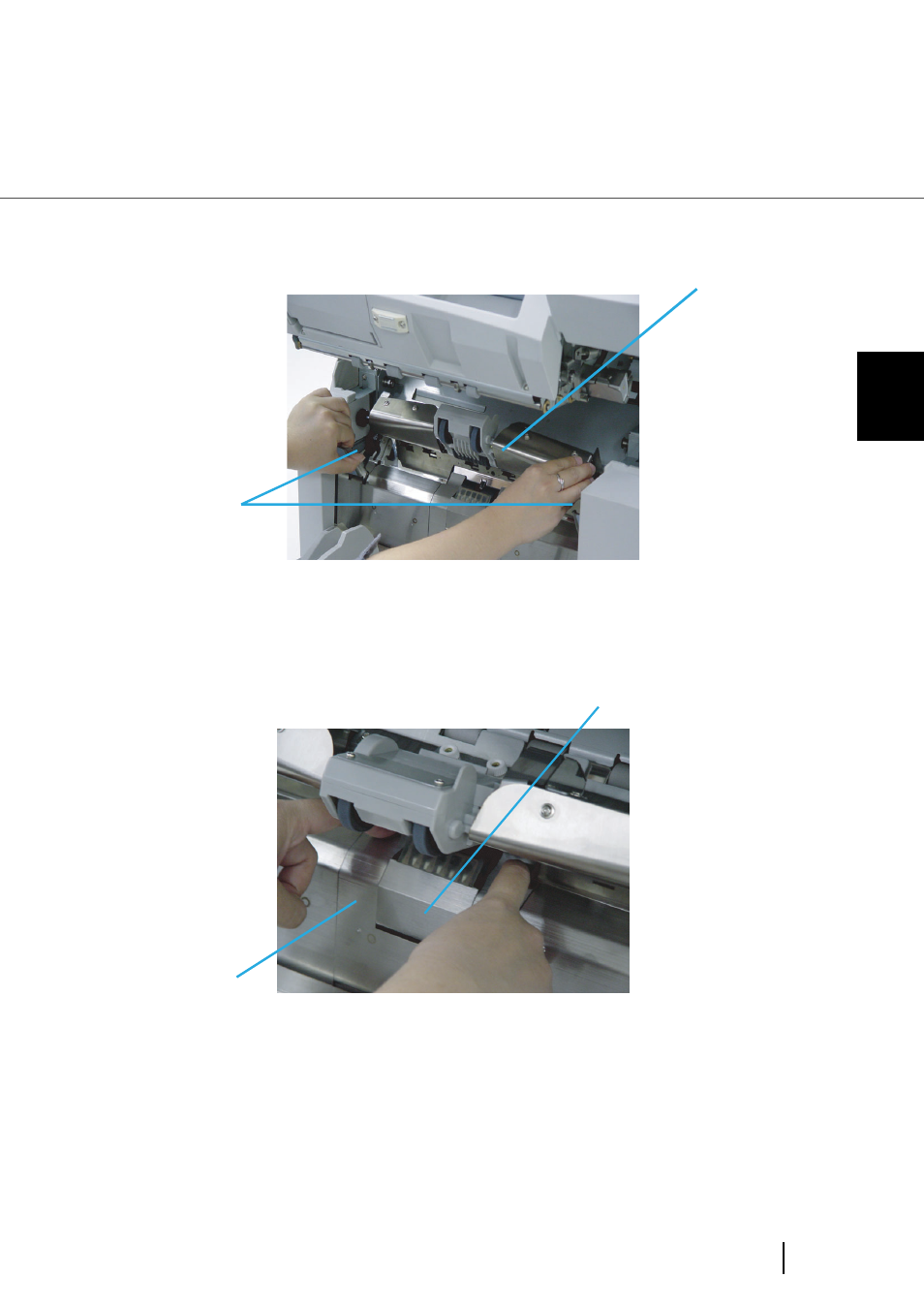

2. Pull the ADF release lever toward you and lift up the ADF sheet guide.
3. Pressing down the upper part of the Guide plate with your fingers at two
positionsand pull the plate toward you to remove it.
#&(WRRGTUJGGVIWKFG
#&(TGNGCUGNGXGT
Pad ASSY
Guide plate
