C141-E078-02EN 4 - 8

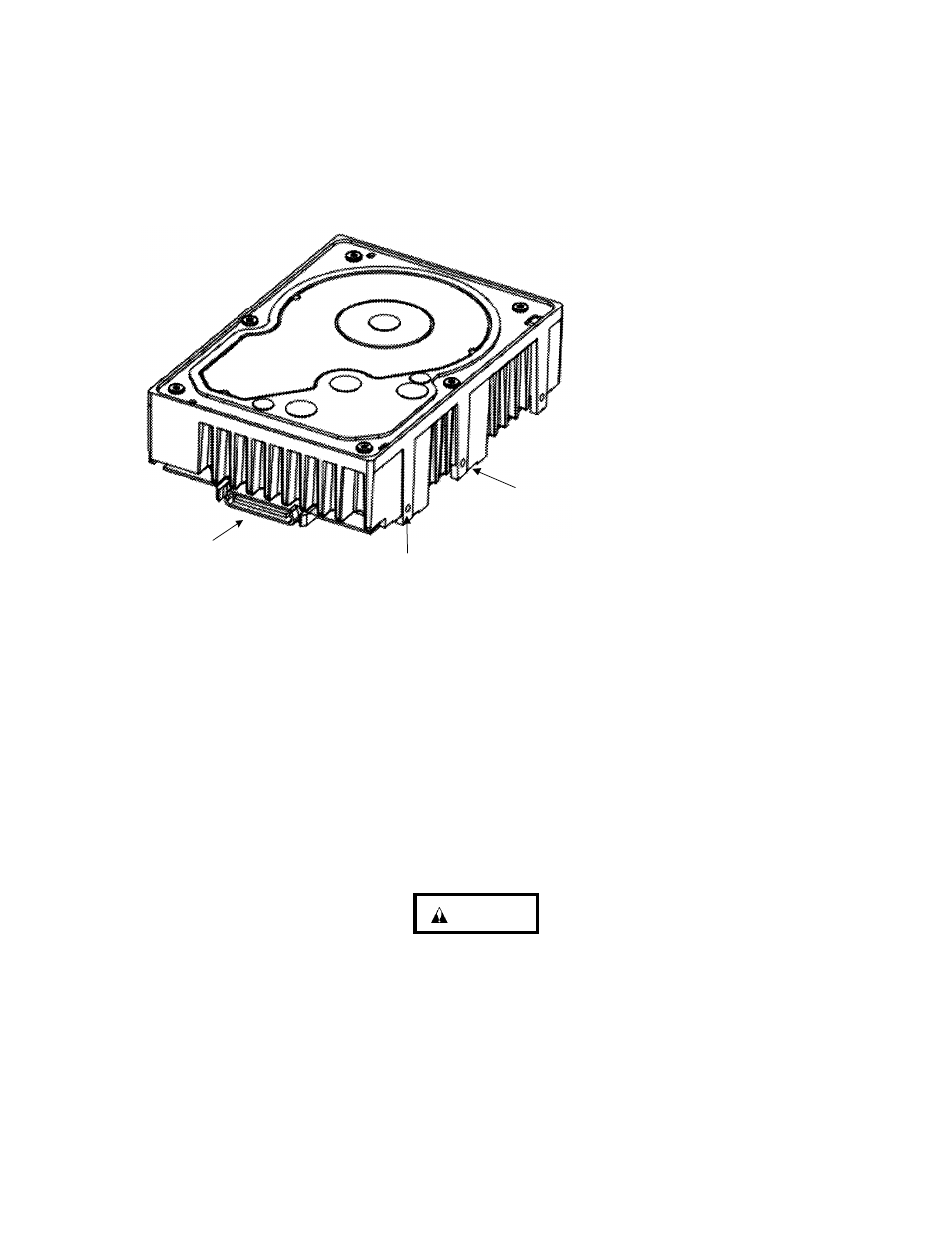

(4) Service clearance area
The service clearance area, or the sides which must allow access to the IDD for installation or
maintenance, is shown in Figures 4.7.
Figure 4.7 Service clearance area
(5) External magnetic field
The drive should not be installed near the ferromagnetic body like a speaker to avoid the
influence of the external magnetic field.
(6) Leak magnetic flux
The IDD uses a high performance magnet to achieve a high speed seek. Therefore, a leak
magnetic flux at surface of the IDD is large. Mount the IDD so that the leak magnetic flux does
not affect to near equipment.
CAUTION
Damage to drive
A hole or screw portion as shown in Figure 4.8 is used for adjusting
air pressure balance between inside and outside the DE. Do not fill
with a seal or label.
Seals on the DE prevent the DE inside from the dust. Do not
damage or peel off labels.
[Surface R]
• Hole for mounting screw
[Surface Q]
• Hole for mounting screw
[Surface P]
• Cable connection
