16
P/N 211455F 08/03

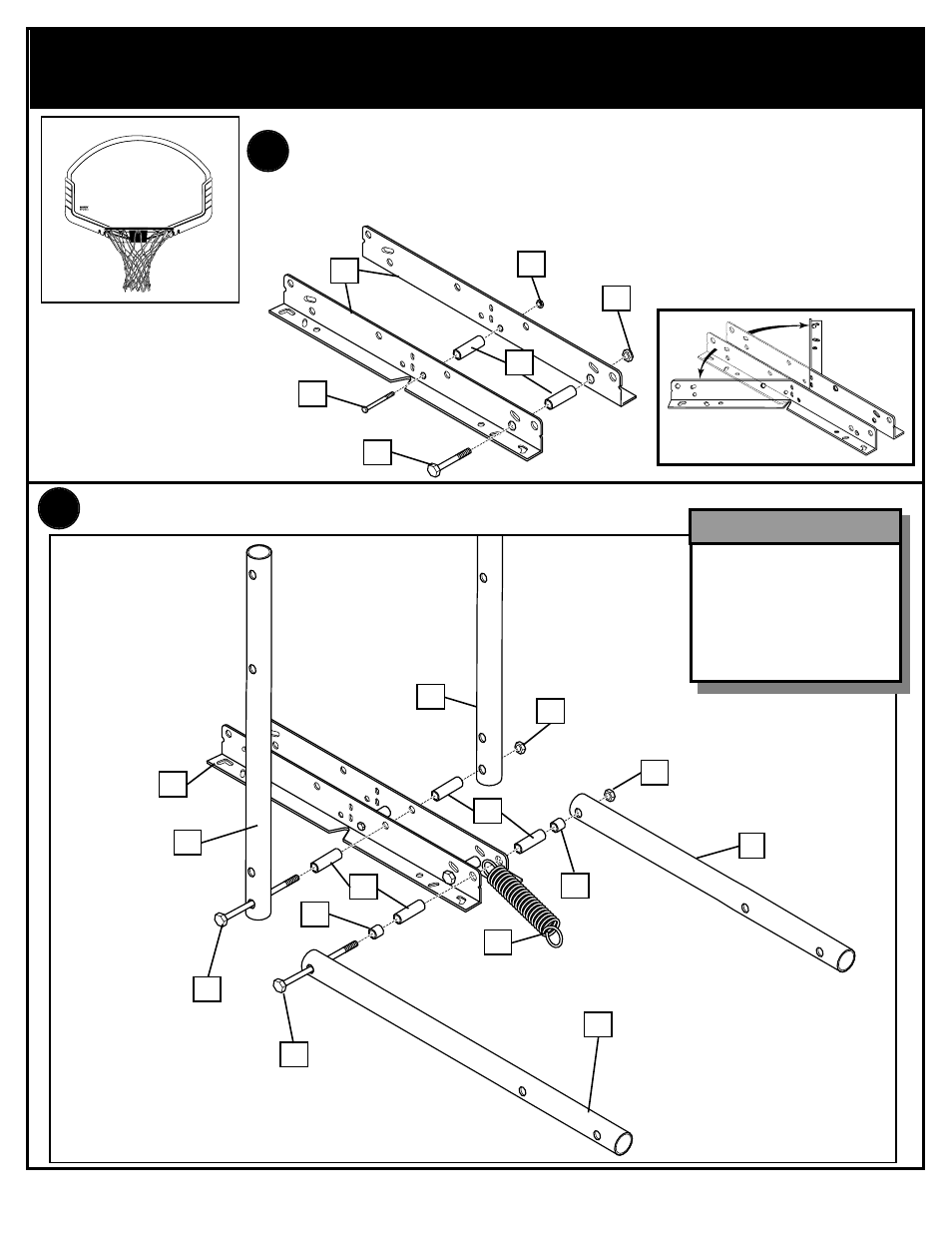

Use the following assembly instructions if you have a
44” molded plastic backboard (Rectangle or Fan)
CAUTION:
THIS BACKBOARD AND GOAL ARE NOT DESIGNED TO
SUPPORT A PLAYER HANGING FROM THE GOAL OR NET.
FAILURE TO OBSERVE THIS CAUTION MAY CAUSE
BODILY INJURY AND / OR PROPERTY DAMAGE.
27
25
14
12
26
28
1A.
26
30
35
32
30
31
35
29
29
33 32
34
31
33
1B.
Install spacers (25) onto backboard brackets (26) with bolts
(12, 27) and lock-nuts (14, 28) as shown. Bend bracket (26) to
line up with holes in backboard.
Assemble elevator tubes (30) as shown. Tighten completely.
It is necessary for all
parts to be instaslled
for this mechanism to
work safely and
properly.
IMPORTANT!:
