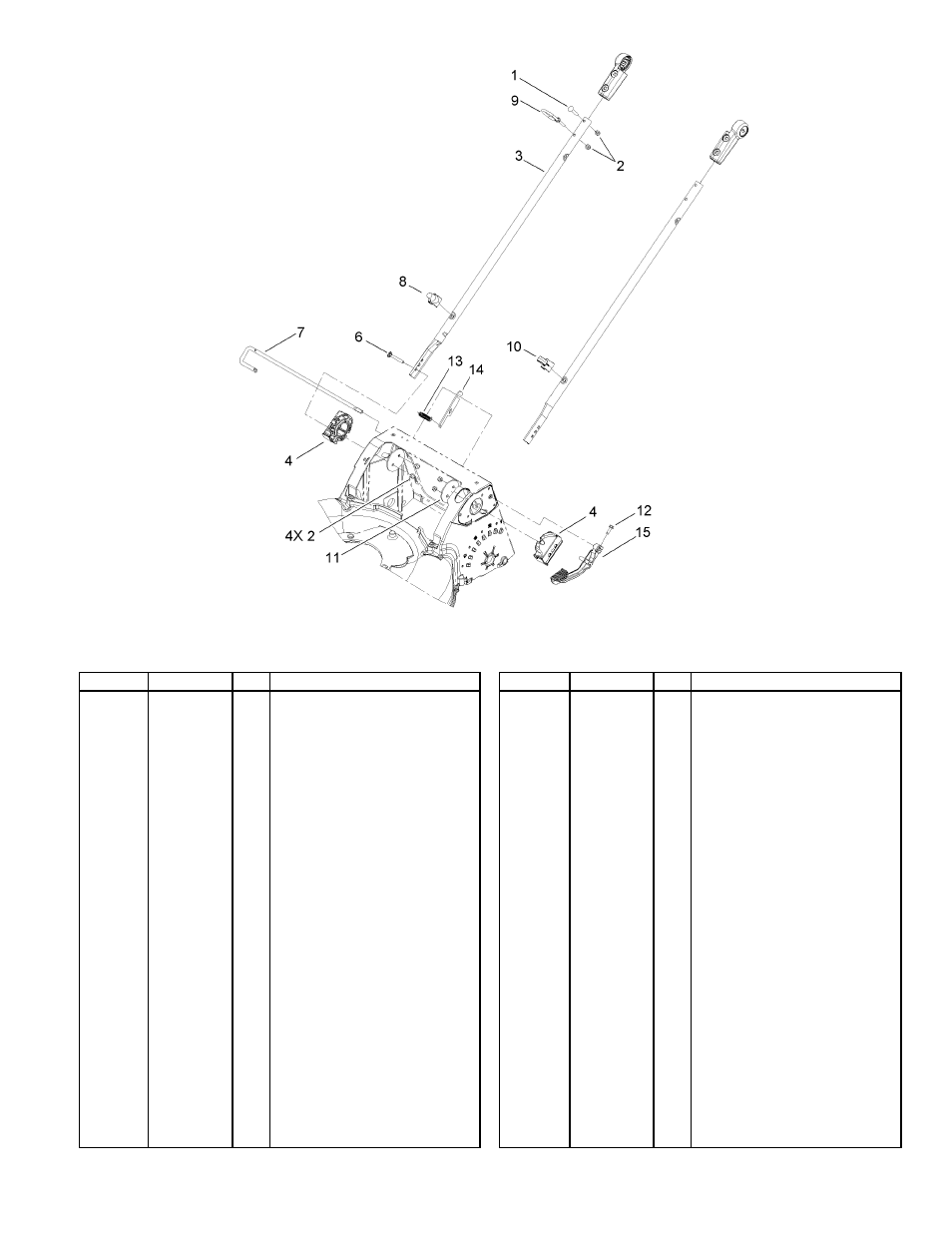

Lower Handle Assembly

5

Ref

Part No.

Qty. Description

Screw-CARR

1

108-0988

3

Nut-Lock, NI

2

3296-73

8

Tube-Lower

3

107-3887-03

2

Mount-Handle, Lower

4

114-2791

2

Screw

6

95-4453

4

Rod-Release, Handle

7

112-8755

1

Guide-Rope, Lower

8

117-4141

1

Guide-Rope, Upper

9

107-3908

1

Guide-Cable

10

106-6805

1

Plate

11

107-3944-03

2

Screw-HWHTF

12

49-2040

1

Spring-Extension

13

112-1542

1

Plate-Rod, Release

14

112-1539

1

Lever-Release

15

110-1823-03

1
