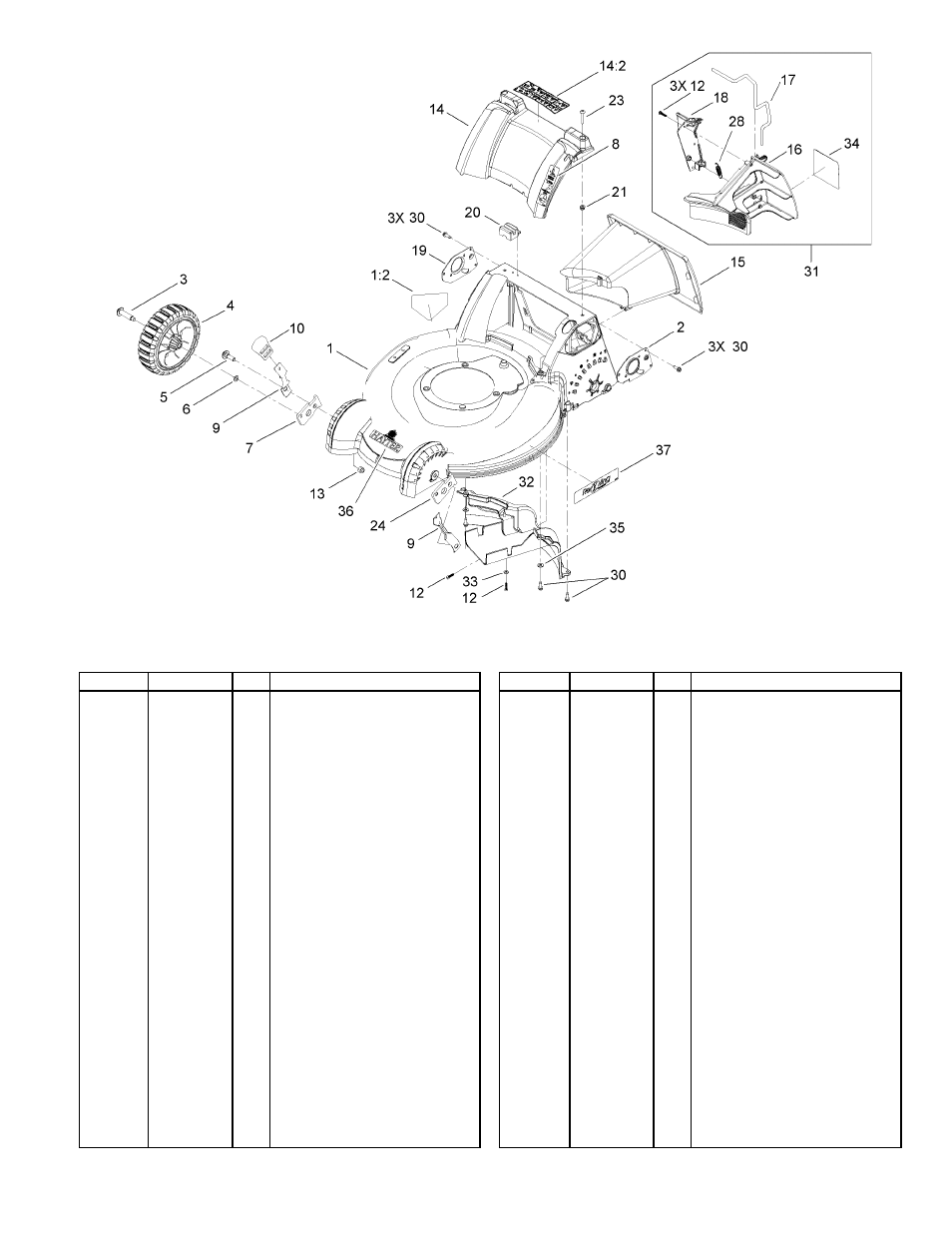

Housing Component Assembly
2
Ref Part No. Qty. Description
Housing ASM 1 117-4111 1
Decal-Danger 1:2 112-8760 1
Mount-Handle, LH 2 110-9415-03 1
Bolt-Shoulder 3 614650 2
8 Inch Wheel ASM 4 117-4103 2
Bolt-Shoulder 5 614672 2
Washer 6 40-1940 2
Arm-Pivot, RH 7 110-9421 1
Decal-Handle Adjust, Hayter 8 111-2210 1
Arm-Spring, Front 9 110-9434 2
Knob-HOC 10 110-7125 2
Screw-Plastite 12 108-7476 6
Nut-Lock, NI 13 3296-39 2
Cover-Rear 14 115-3177 1
Decal-Warning 14:2 114-2820 1
Tunnel 15 110-9456 1
Plug-Mulch, LH 16 110-9446 1
Latch-Plug, Mulch 17 110-9448 1
Plug-Mulch, RH 18 110-9447 1
Mount-Handle, RH 19 110-9416-03 1
Module-Switch 20 110-1787 1
Nut-Clip 21 94-1610 2
Screw-PTH 23 108-0965 2
Arm-Pivot, LH 24 110-9420 1
Ref Part No. Qty. Description
Spring-Extension 28 110-9458 1
Screw-HWHTF 30 49-2040 11
Mulch Plug ASM 31 110-9468 1 n
Baffle-Rear 32 110-9413 1
Washer-Flat 33 3256-14 1
Decal-Plug, Mulch 34 110-9457 1
Washer-Flat 35 3256-22 2
Decal-Hayter 36 410087 1
Decal-Recycling 37 114-3233 1
