Page 86: Wand emulation settings (see

6 - 2

Secondary RS-232 Connection

All communication parameters between the imager and terminal must match for
correct data transfer through the serial port using RS-232 protocol.

RS-232 programmable selections are used by both the primary and secondary
interfaces. Changing an RS-232 parameter (e.g., baud rate or parity), while in
primary

secondary mode will affect both interfaces. If you want to change the

RS-232 settings, refer to

RS-232 Baud Rate

, page 2-9.

Secondary Code 39 Wand Emulation

Note: See

"Imager Models"

on page 6-1 to determine which interfaces apply to

your imager.

In Wand Emulation mode, the imager decodes the bar code then sends data in
the same format as a wand imager. The Code 39 Format converts all
symbologies to Code 39. The Same Code Format transmits UPC, EAN, Code
128, Codabar, and Interleaved 2 of 5 without any changes, but converts all other
symbologies to Code 39. 2D symbologies are converted to Code 128. These
codes set the transmission rate to 25 inches per second and the output polarity
to black, high.

Default = Code 39 Format.

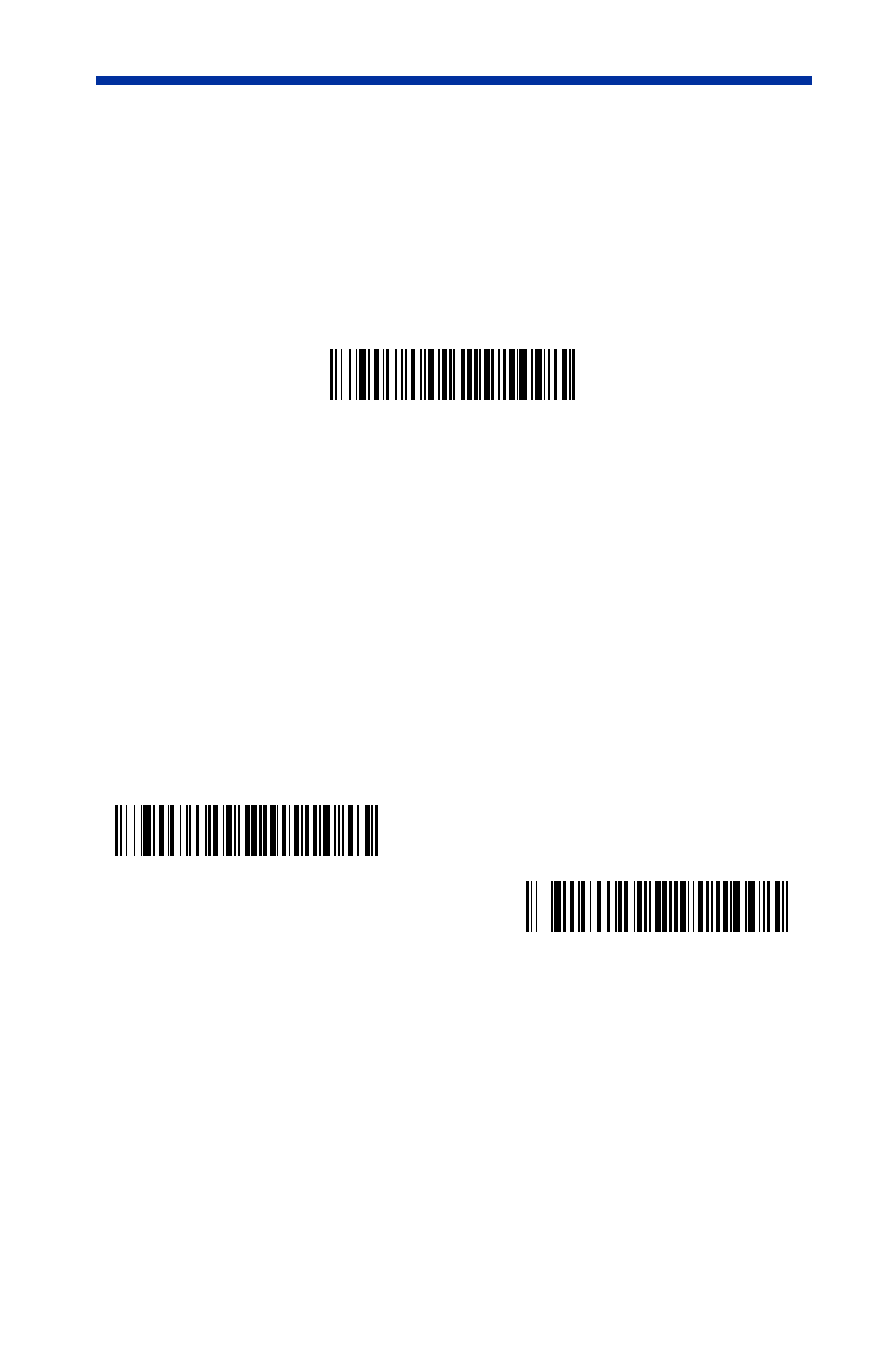

The

Code 39 Format

bar code below sets the terminal ID to 61, and the

Same

Code Format

bar code sets the terminal ID to 64.

Wand Emulation Multi Block

Note: See

"Imager Models"

on page 6-1 to determine which interfaces apply to

your imager.
