Delivery Checklist
Remove the mower from the packaging and check that
the following items have been supplied correctly. If any
items are missing contact, your local Hayter dealer.
1. Engine Handbook. 3. Parts list/D of C
2. Grassbag Assembly. 4. Warranty Reg Card.
To prevent accidents cut off the long ribbon attached to
the grassbag and discard. (Refer fig.1)
Handlebar
Unscrew the handlebar securing knobs sufficiently to
allow the handlebar to pivot. Move the engine stop lever
away from the engine to avoid damage and unfold the
handlebar to the operating position. Make sure the knobs
are assembled to the outside of the handlebar. (Refer
fig.2)
Tighten both handlebar knobs to secure in position.
Take care to ensure that the control cables do not
become snagged at the pivot point.
Grassbag Assembly
Insert the metal frame into the grassbag fabric and then
clip into position. (Refer fig.3)
Grassbag Attachment
Raise the rear deflector, lower the grassbag through the
handlebar and hook into position. Lower the deflector to
rest on the grassbag (Refer fig.4)
Prevent Engine Damage
To prevent engine damage the engine is shipped
without oil or petrol. The engine must be filled with
the correct grade of oil and petrol before starting the
engine.
Oil Type
Always use high quality detergent oil classified SAE 30
oil. Never use additives with recommended oil.
To prolong the life of your engine it is important that
the oil is changed after the first 5 hours of use - Refer to
‘Maintenance Schedule’.
Check Oil Level
Clean around the oil filler cap before removing. With
the mower on a level surface, unscrew and remove the
oil filler - dipstick. Wipe oil from it with a clean cloth.
Screw the oil filler - dipstick back in place, then unscrew
and remove it to check the oil level. (Refer fig.6)
The oil level is correct when it is at the full mark on the
dipstick. DO NOT OVERFILL. (Refer fig.6)
Fuel Type
Always use clean, fresh unleaded petrol. Purchase fuel
in quantities that can be used within 30 days. Never mix
oil with petrol. For added engine protection Briggs &
Stratton recommend the use of their fuel additive which
is available from an authorised Briggs & Stratton service
dealer.
Fill to base of neck to allow for fuel expansion. Do not
overfill the fuel tank. (Refer fig.7)

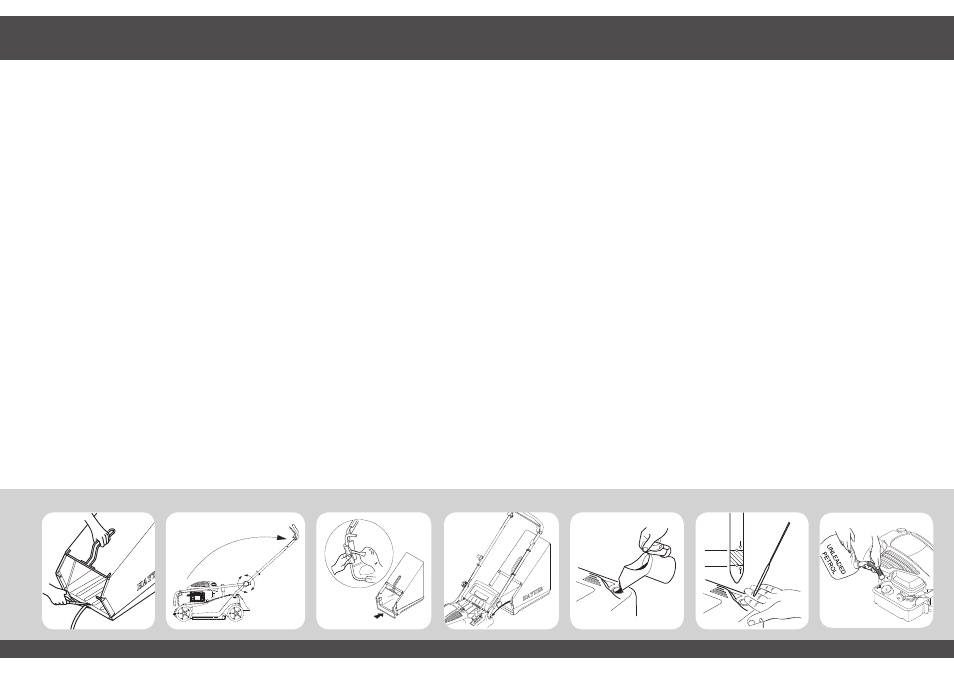

Fig. 3 Fig. 2 Fig. 5 Fig. 6 Fig. 7 Fig. 1
