C7076a,d ultraviolet detector, Flame rod, Self-checking ultraviolet (c7061a) – Honeywell R7824 User Manual

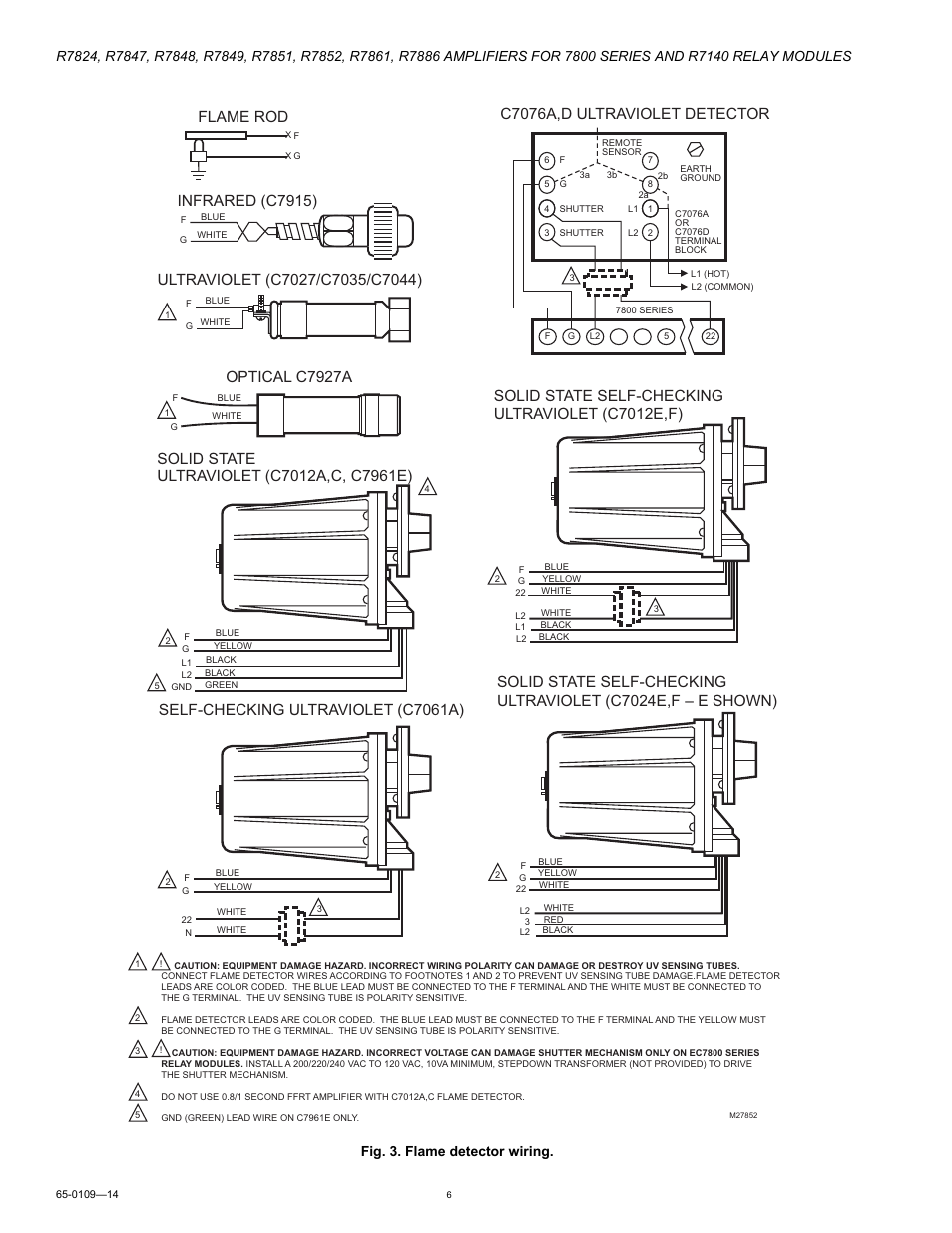

Page 6: Fig. 3. flame detector wiring

Text mode
Original mode

C7076a,d ultraviolet detector, Flame rod, Self-checking ultraviolet (c7061a) | Fig. 3. flame detector wiring | Honeywell R7824 User Manual | Page 6 / 8
