Technical, Dimension diagram, Signal connector pin assignment – Hitachi CP-S420WA User Manual

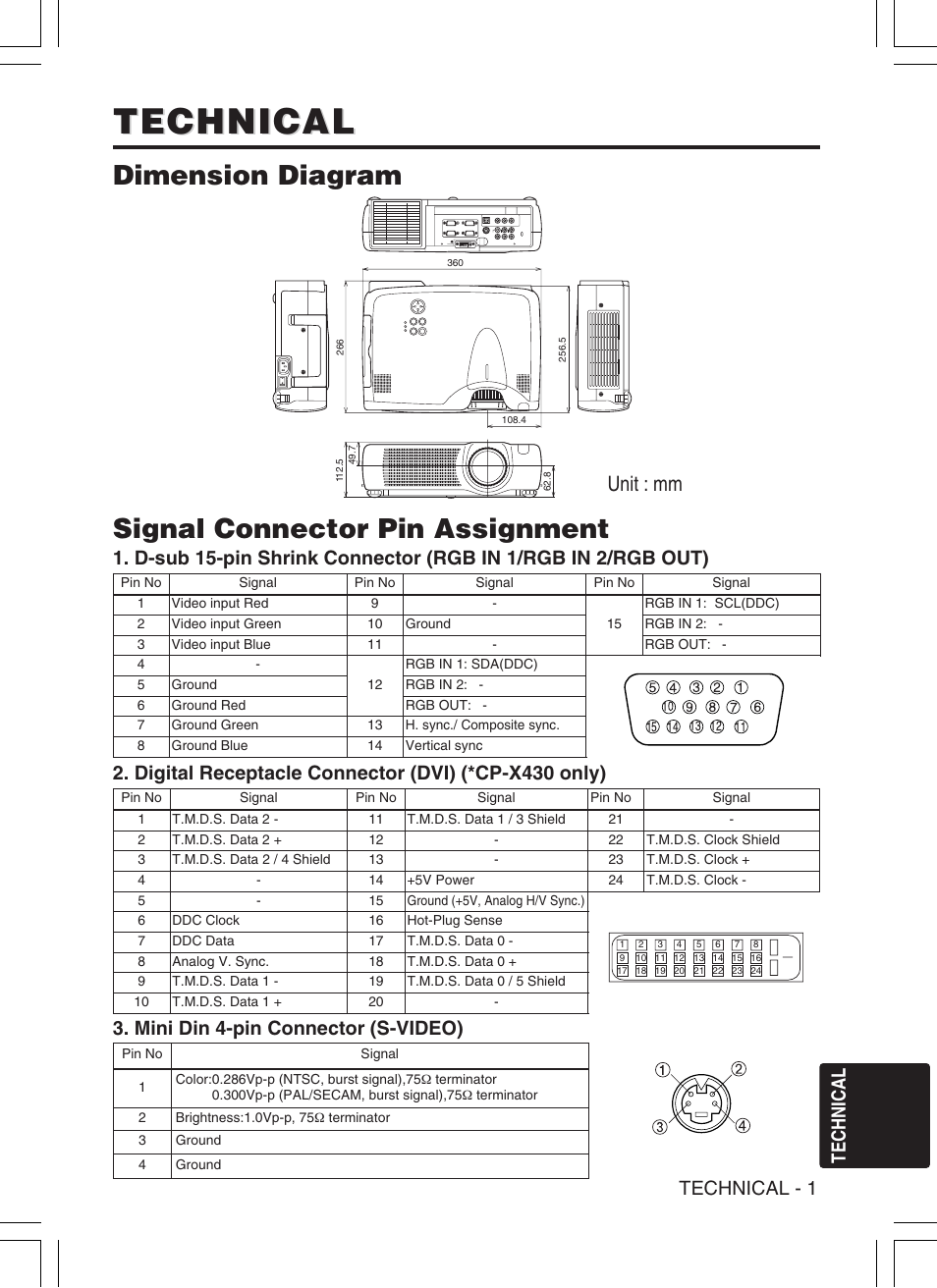

Page 26: Unit : mm, Technical - 1, Mini din 4-pin connector (s-video), Digital receptacle connector (dvi) (*cp-x430 only)
