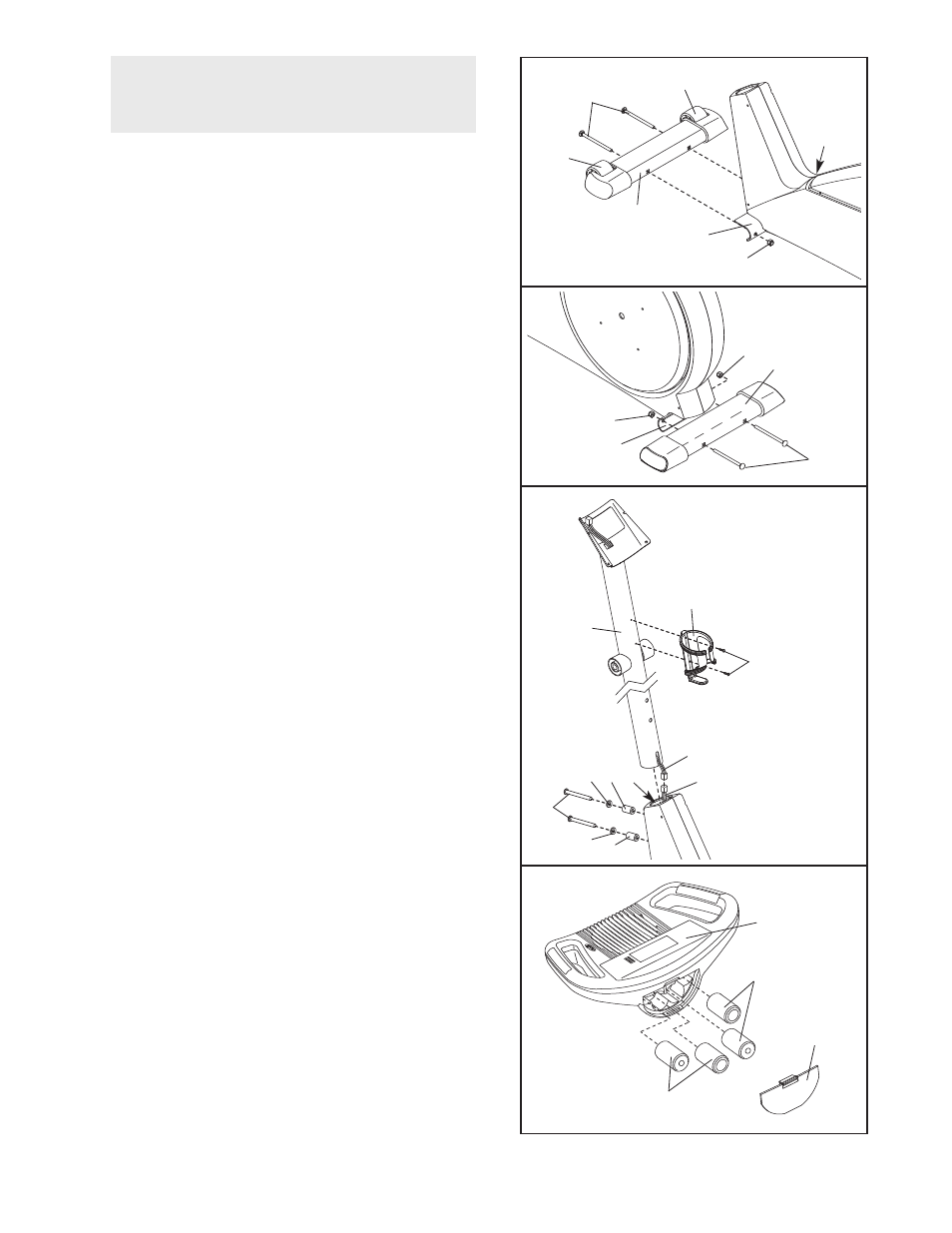

Identify the Front Stabilizer (3). While another person

lifts the front of the Frame (1), attach the Front

Stabilizer to the Frame with two M10 x 112mm

Carriage Bolts (34) and two M10 Nylon Locknuts (29).

Make sure that the Front Stabilizer is turned so the

Wheels (32) are not touching the floor.

2. While another person lifts the back of the Frame (1),

attach the Rear Stabilizer (4) to the Frame with two

M10 x 112mm Carriage Bolts (34) and two M10 Nylon

Locknuts (29).

3. While another person holds the Upright (2) in the posi-

tion shown, connect the Upper Wire Harness (86) to

the Lower Wire Harness (87). Carefully pull the

upper end of the Upper Wire Harness to remove

any slack. While holding the upper end of the

Upper Wire Harness, insert the Upright into the

Frame (1). Do not pinch the Wire Harnesses.

Slide two M10 Split Washers (70) and two Frame

Spacers (83) onto two M10 x 88mm Button

Screws (63). Insert the Button Screws into the Frame

(1) and the Upright (2). Make sure that the concave

end of the Frame Spacer is turned toward the

Frame. Do not tighten the Button Screws yet.

Attach the Water Bottle Holder (91) to the

Upright (2) with two M4 x 22mm Screws (93).

Avoid pinching

or damaging the

wire harnesses

during this step.

4. The Console (5) requires four “D” batteries (not includ-

ed); alkaline batteries are recommended. Remove the

battery cover from the Console and insert four batter-

ies into the Console. Make sure that the batteries

are oriented as shown by the markings on the bat-

tery cover. Then, reattach the battery cover.

Battery

Cover

Batteries

To make assembly easier, read the information

on page 5 before you begin assembling the

elliptical exerciser.
