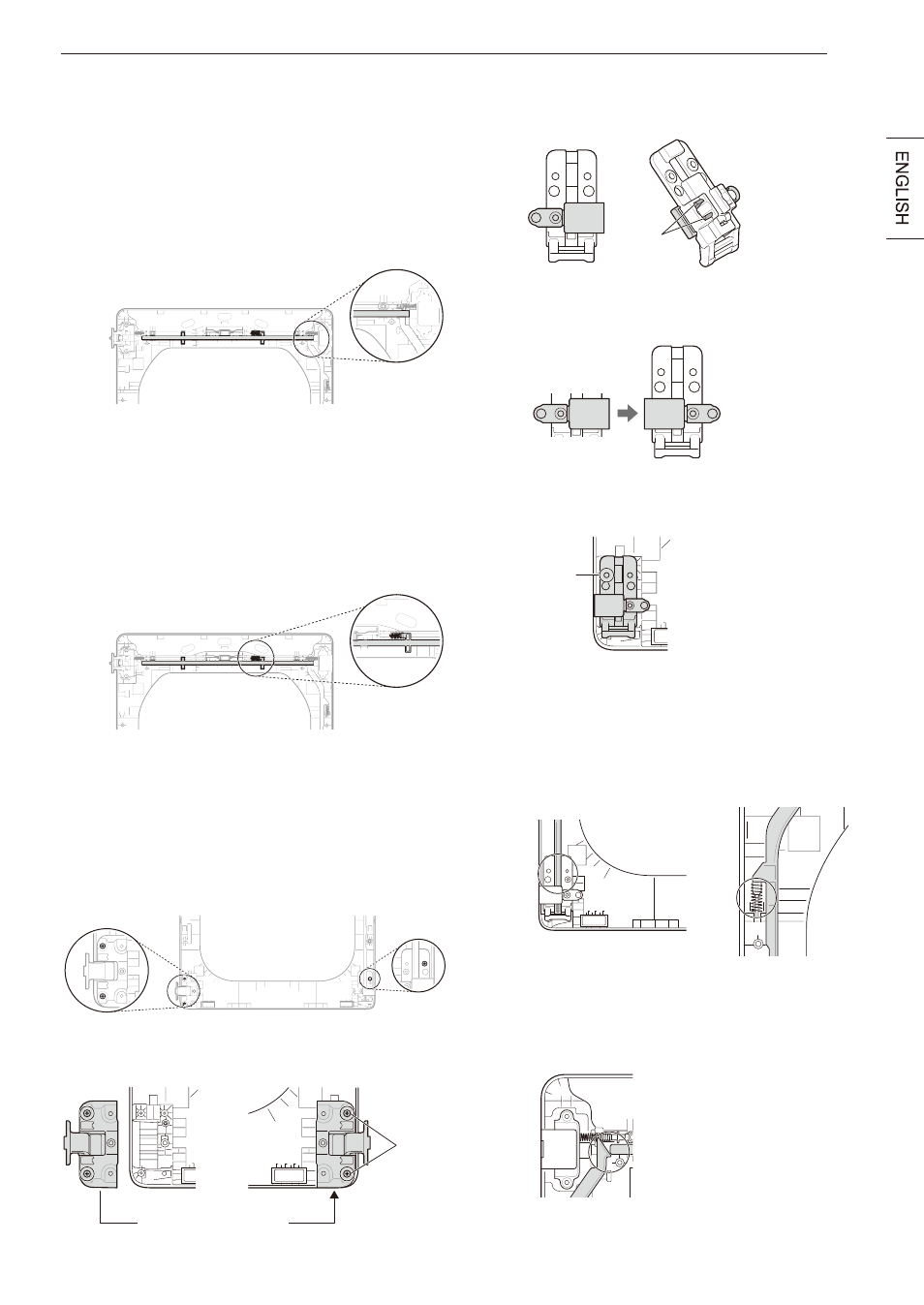

19 INSTALLATION
12
Reinstall the top lock rod.
Rotate the top lock rod (removed in step 10)
180 degrees end for end from its original
position and reinstall it. The spring should now
be to the right of center, with the spring on the
side of the rod facing the top of the door.
a. Insert the right end of the lock rod into the
right hinge assembly. Make sure the rod is
aligned with the guides in the door panel.
b. Lower the rod into position, sliding it to
bypass the center handle, making sure to
align the lock rod with the guides all the
way across the door panel. When released,
the lock rod should slide completely into
the hinge assembly on the right. Slide the
lock rod back and forth to make sure it is
correctly positioned in the guides and slides
easily.
13
Reverse the lower hinge bracket and hinge
assembly.
a. Remove the screw from the lower hinge
bracket (on the right) and lift the hinge
bracket out. Set it aside. Remove the two
screws from the lower hinge assembly on
the bottom left and lift the hinge assembly
out.
b. Rotate the lower hinge assembly 180
degrees and install it on the right side using
the two screws removed in step a.
Lower hinge assembly
Screws
c. Flip over the lower hinge bracket and
release the tabs on the back locking the
hinge filler to the hinge bracket.
Tab
d. Rotate the hinge 180 degrees and snap
it back onto the front of the hinge bracket
facing in the opposite direction.
e. Mount the lower hinge bracket and the filler
on the left side of the door with the screw
removed in step a.
Screw
14
Install the side lock rod.
Flip the side lock rod over and install it on the
opposite side. Insert the lower end into the left
hinge and lower the rod into the guides on the
door while compressing the spring inside the
recess.
Make sure the top of the side lock rod is
beside the top lock rod and the two do not
overlap each other, so the two rods can
interact correctly. If they are not aligned
properly, the door will not operate properly.
