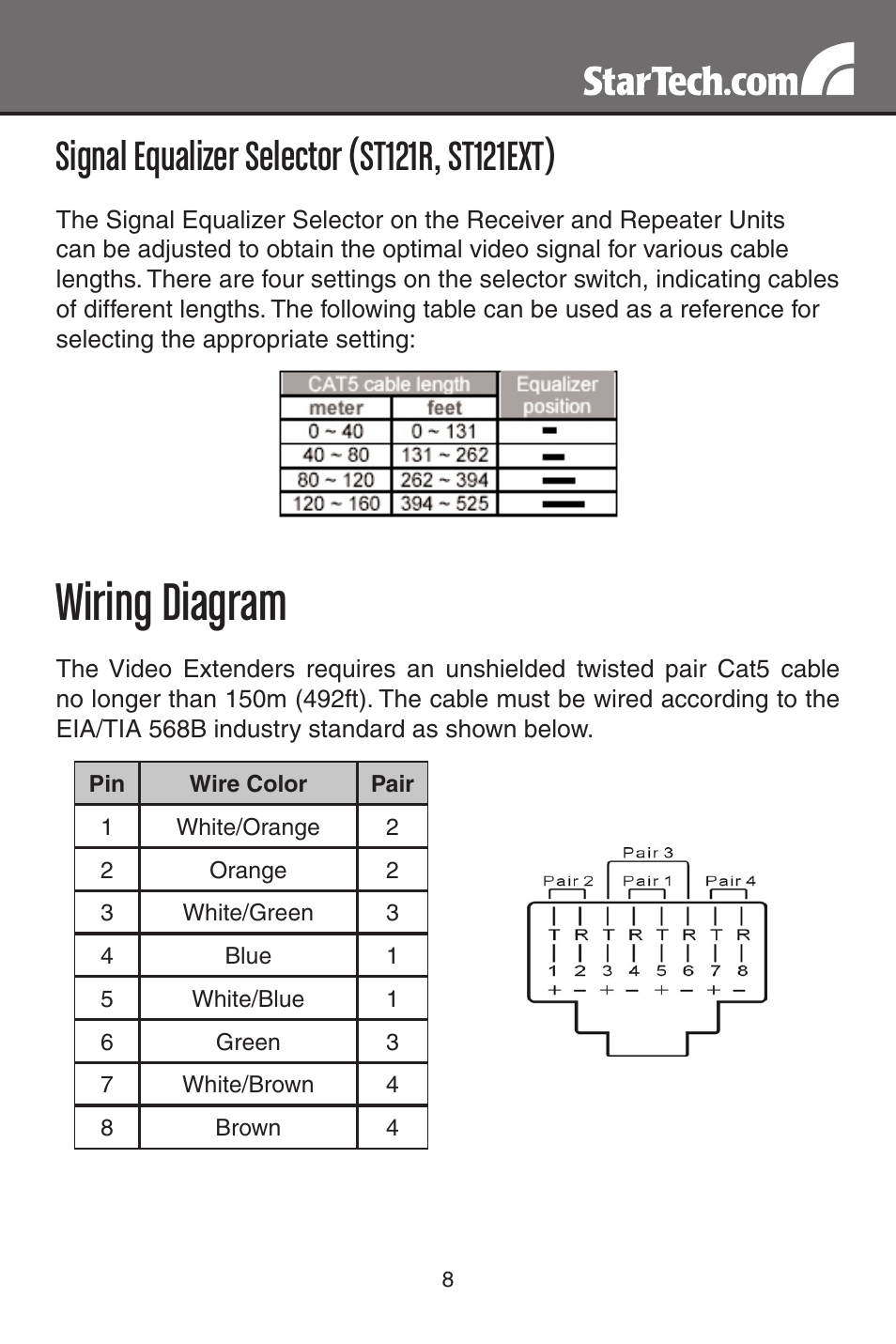

Wiring diagram – StarTech.com ST121R VGA Video Extender Remote Receiver Over Cat5 (Black) User Manual
Page 11
