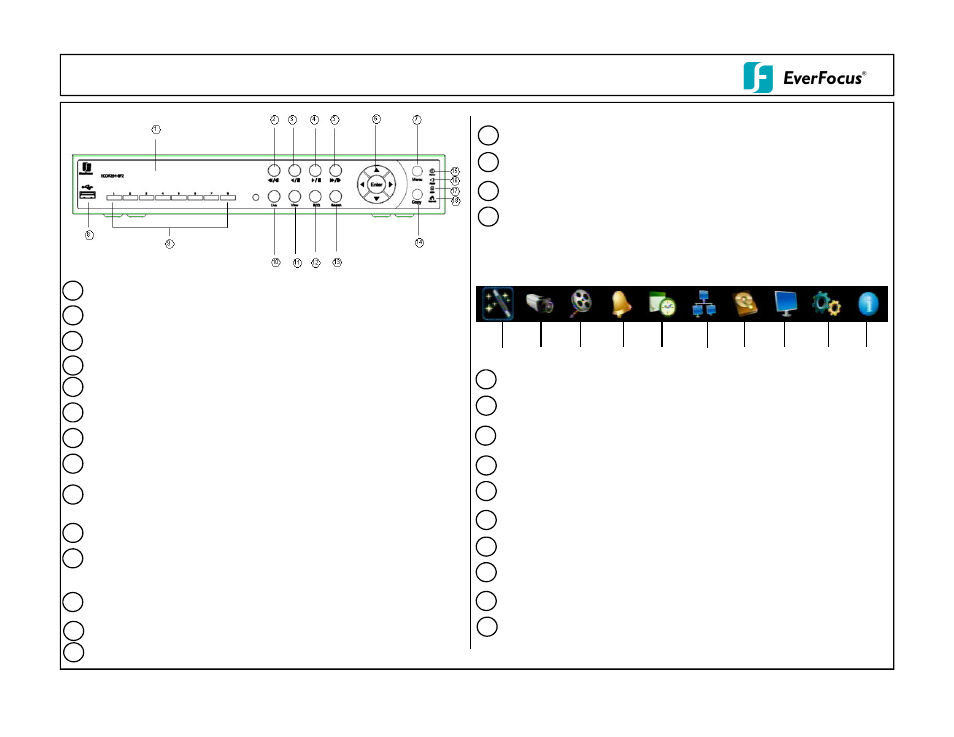

ECOR264-D2 Quick Reference Guide Operating elements
◄◄ /◄I : Fast reverse playback or step reverse playback depending on
playback mode.
◄ / II: Reverse playback or pause
► / II: Forward playback or pause
Power LED: This LED ON indicates Power on.
1 2 3 4 5 6 7 8 9 10
Description of on-screen main menu (control bar)
DVD+RW: DVD+RW burner for DVD model. (D models only)
16 Alarm LED: This LED ON indicates Alarm active.
17 HDD LED: This LED ON indicates HDD active.
18 Network LED: This LED ON indicates Network active.
4
7
6
5
8
9
13
10
11
View: Press this key to switch between 4x, PiP (Picture In Picture), full screen and 9x.
Note: 1. PIP display is not available in playback mode.
2. This key is also used for BNC and VGA selection at the initial setup.
Copy: Press this key to enter Copy Menu.
SEQ: Press this key to enter the auto sequential switching mode. The sequence
dwell time can be set in “Display Setting” tab of the Menu. 12
14
Live: Press this key to show live view. Press to exit from playback mode.
►► /I►: Fast Forward playback or step forward playback depending on playback mode.
Channel keys 1~8 (1~4):
- Press channel key (CH1~CH8) / (CH1~CH4) to display that channel in full screen view.
- Press channel key again for 2x electronic zoom.
Menu/ESC: Press this key to enter/exit MAIN SETUP MENU.
Enter/ Arrow keys: Instead of or in combination with a mouse, you can use these
keys to change the Menu settings.
Search: Press this key to enter Search Menu.
2
3
4
7
6
5
8
9
1
10
Express menu (manual chapter 4.2)
Camera menu (manual chapter 4.3)
Record & Play menu (manual chapter 4.4)
Alarm & event menu (manual chapter 4.5)
Schedule menu (manual chapter 4.6)
Network menu (manual chapter 4.7)
Disk menu (manual chapter 4.8)
Display menu (manual chapter 4.9)
System menu (manual chapter 4.10)
Information menu (manual chapter 4.11)
USB 2.0 (front): For connecting USB-Flash-Drive to copy/archive video or for
firmware upgrades.
P/N: 4605XECR04002AR_Ver.A
