4elc-485aptr termination resistor application, Rj12 of ac motor drive side, Com2-db9 male – Eaton Electrical ELC-485APTR User Manual

Page 2: Fig. 4

Text mode
Original mode

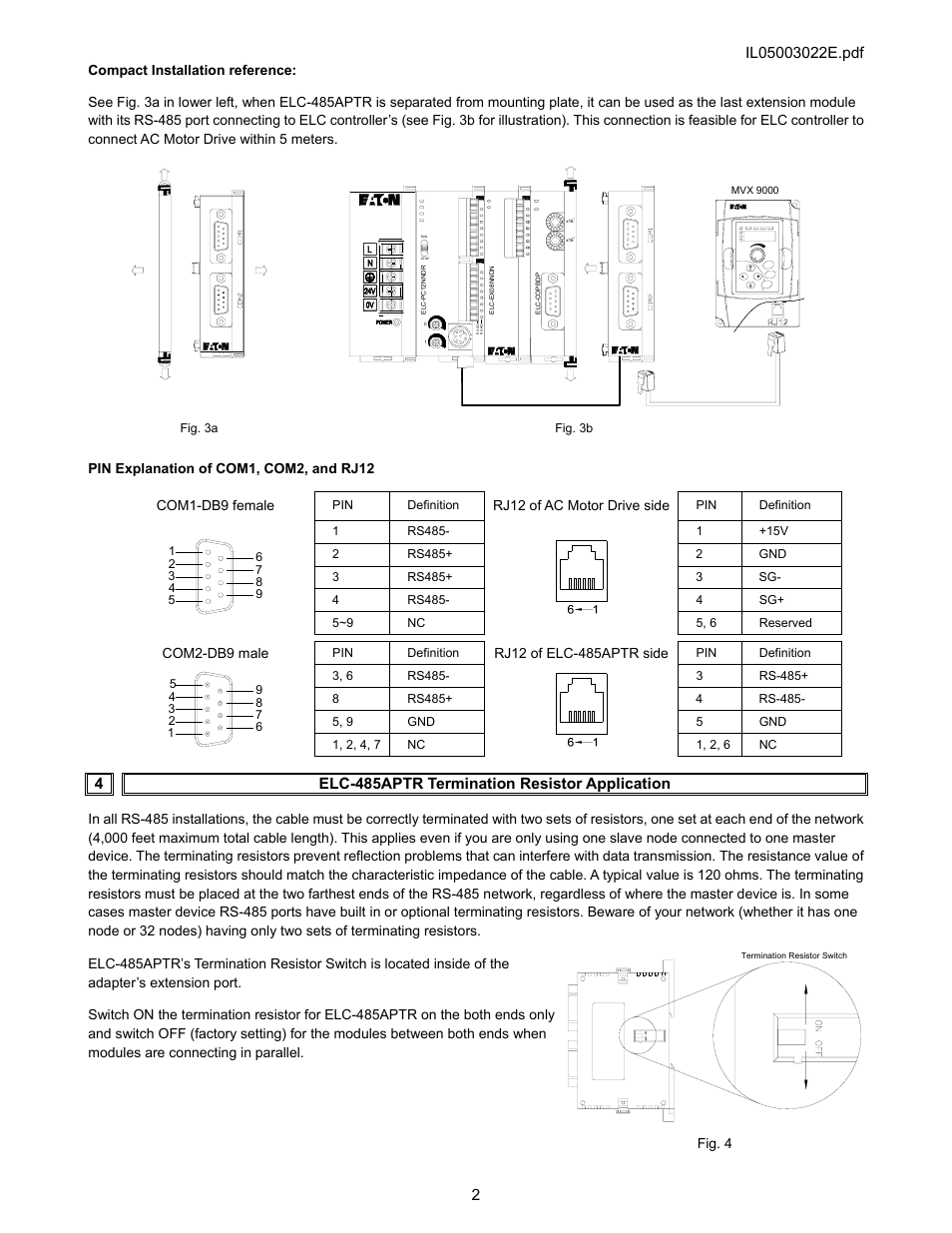

4elc-485aptr termination resistor application, Rj12 of ac motor drive side, Com2-db9 male | Fig. 4 | Eaton Electrical ELC-485APTR User Manual | Page 2 / 2

4elc-485aptr termination resistor application, Rj12 of ac motor drive side, Com2-db9 male | Fig. 4 | Eaton Electrical ELC-485APTR User Manual | Page 2 / 2
