Setting Up the TV
25
VCR and Cable Service (Without Cable Box) Connection
1
Connect the VCR as described in “VCR Connection” on page 24.
2
Connect the cable coming into the house to the IN connector on the VCR.
3
Connect one end of a coaxial cable to the OUT connector on the VCR.
4
Connect the other end of the coaxial cable to the ANT 1 connector on the back of the
TV.
If your coaxial cable has a screw-type connector on the end, secure it by turning the end
clockwise.

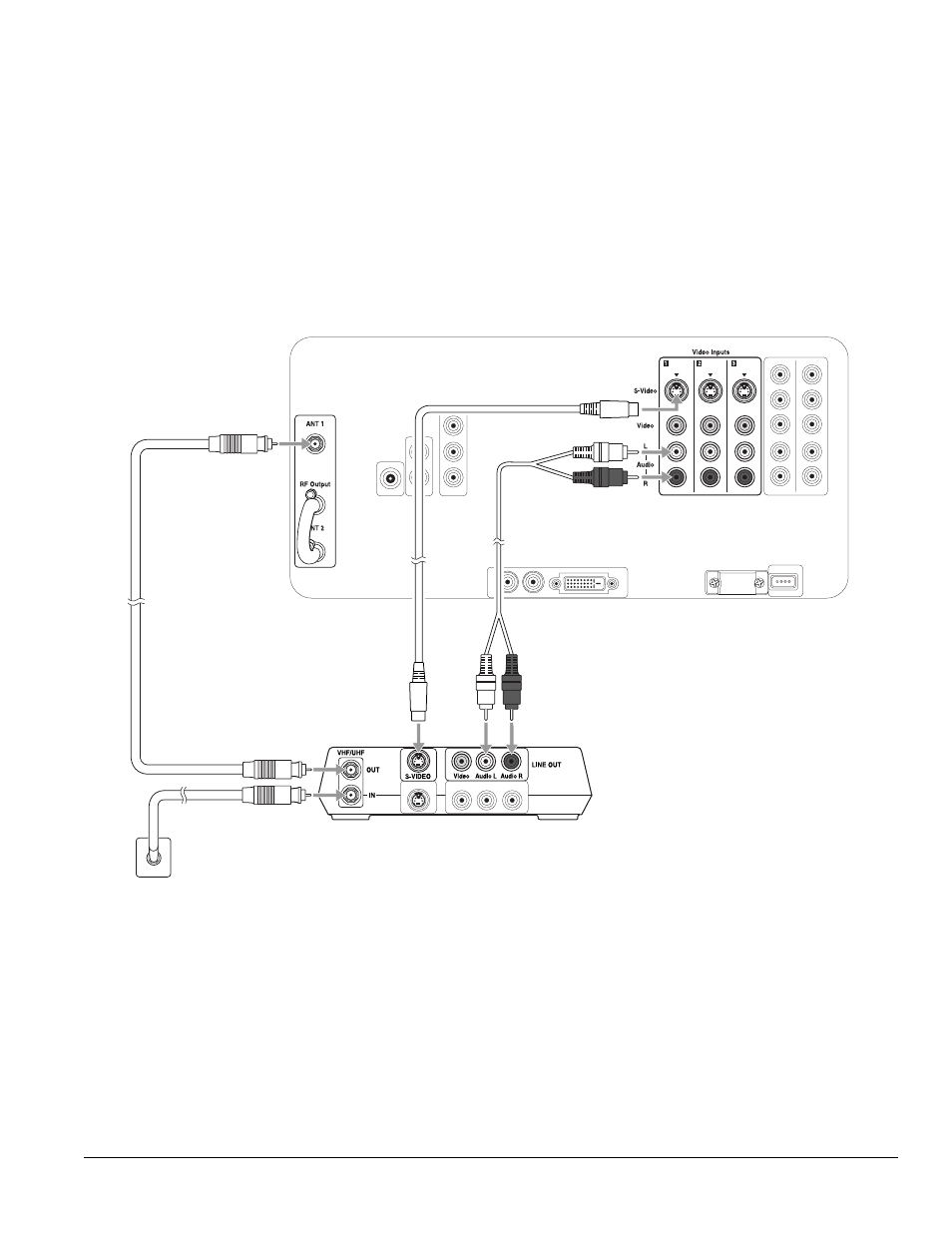

Audio cable
S-video cable
Coaxial
cable
Wall jack
VCR
