232 4 Cycle Programming
4.9 Dr
illing/Milling P
a
tt
er
ns
Drilling/milling pattern linear, radial

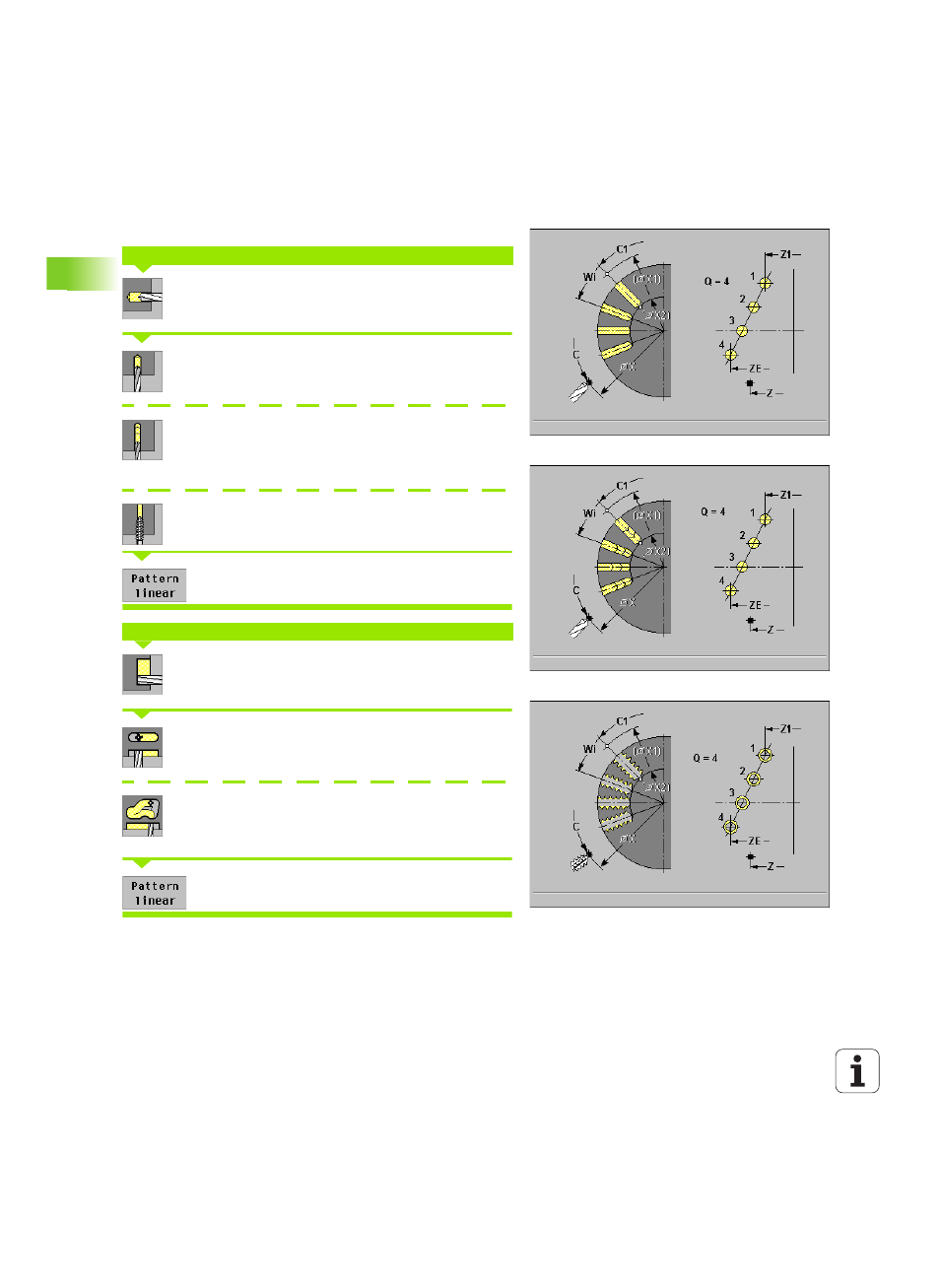

Call the drilling menu.
Select "Drilling, radial " (see figure at upper right).
Select "Deep-hole drilling, radial " (see figure at center
right).
Select "Tapping, radial " (see figure at lower right).
Press the Pattern linear soft key.
Call the milling menu.
Select "Slot radial" (see figure at top of next page).
Select "ICP contour, radial" (see middle figure on next
page).
Press the Pattern linear soft key.
Press "Pattern linear" to machine hole patterns or figure patterns in
which the individual features are arranged at a regular spacing in a
straight line on the lateral surface.
Drilling pattern linear, radial
Milling pattern linear, radial
